Air Conditioning (A/C) Compressor to Condenser Discharge Line - 2.5L Duratec (147kW/200PS) - VI5

Materials
Name Specification
Compressor Oil - Air Conditioning WSH-M1C231-B / 6U7J-M1C231-AA

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (412-00 Climate Control System - General Information, General Procedures).

CAUTION: Make sure that all openings are sealed.

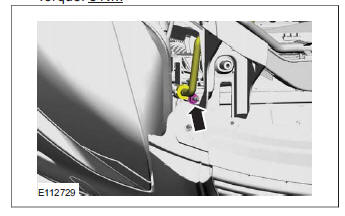

Torque: 8 Nm

Air Conditioning (A/C) Compressor to Condenser Discharge Line - 2.5L Duratec (147kW/200PS) - VI5

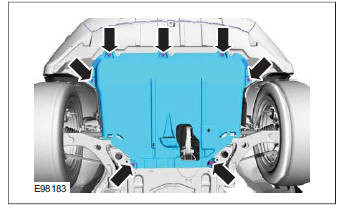

3. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation).

Air Conditioning (A/C) Compressor to Condenser Discharge Line - 2.5L Duratec (147kW/200PS) - VI5

CAUTION: Make sure that all openings are sealed.

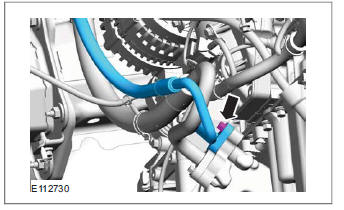

Torque: 20 Nm

Air Conditioning (A/C) Compressor to Condenser Discharge Line - 2.5L Duratec (147kW/200PS) - VI5

Installation

1. To install, reverse the removal procedure.

2. Coat the O-ring seals on the refrigerant lines.

Material: Compressor Oil - Air Conditioning (WSH-M1C231-B / 6U7J-M1C231-AA) refrigerant oil
