Side Panel Sheet Metal Repairs
B-Pillar Outer Panel

General Equipment

6 mm Drill Bit

Air Body Saw

General Equipment

MIG/MAG Welding Equipment

Resistance Spotwelding Equipment

Spot weld drill Bit

Removal

  • Front and Rear Door
  • Refer to: Front Seat (501-10 Seating, Removal and Installation).

    Refer to: Rear Seat Cushion (501-10 Seating, Removal and Installation).

    Refer to: Rear Seat Backrest (501-10 Seating, Removal and Installation).

    Refer to: B-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

    Refer to: Front Scuff Plate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

    Refer to: Rear Scuff Plate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

  • Reposition the carpeting and the wiring harness away from the working area.

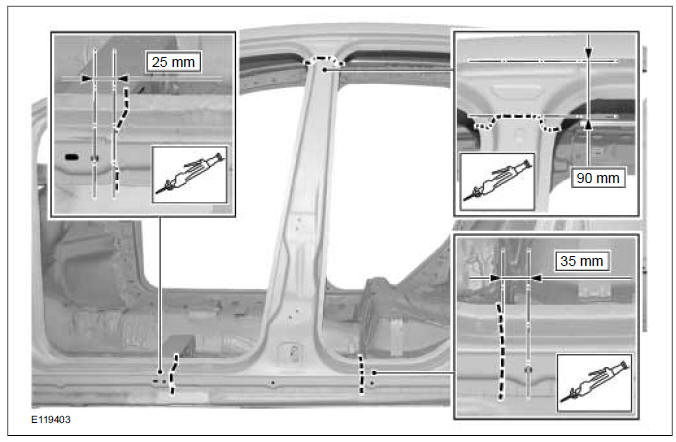

2. General Equipment: Air Body Saw

B-Pillar Outer Panel

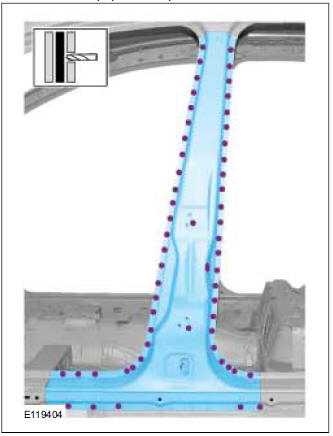

3. General Equipment: Spot weld drill Bit

B-Pillar Outer Panel

Installation

1. NOTE: Before resistance spot welding of body panels with a total panel thickness of 3 mm and greater, the manufacturer's welding equipment instructions and sub-section 501-25 must be followed.

Refer to: Tools and Equipment for Body Repairs (501-25 Body Repairs - General Information, Description and Operation).

2. NOTE: Sealer or adhesive must not be applied in welding zones. Areas which were bonded or sealed needs to be thoroughly sealed afterwards.

Refer to: Sealer, Underbody Protection Material and Adhesives (501-25 Body Repairs - General Information, Description and Operation).

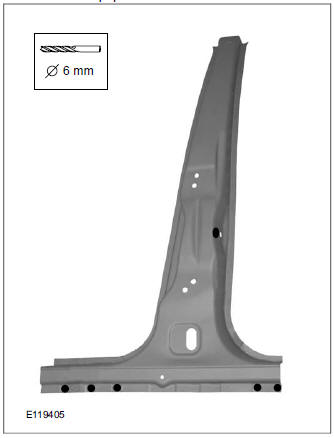

3. General Equipment: 6 mm Drill Bit

B-Pillar Outer Panel

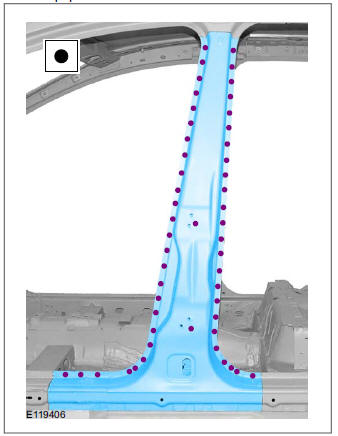

4. Resistance spot weld - Panel thickness 3 mm and greater!

General Equipment: Resistance Spotwelding Equipment

General Equipment: Resistance Spotwelding Equipment

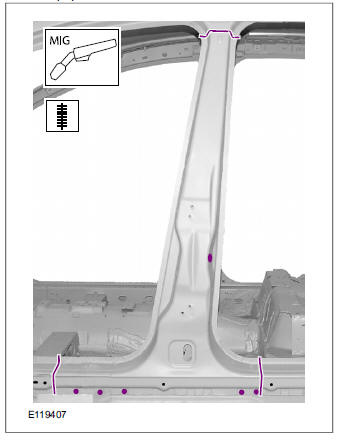

5. General Equipment: MIG/MAG Welding Equipment

General Equipment: Resistance Spotwelding Equipment

  • Front and Rear Door
  • Refer to: Front Seat (501-10 Seating, Removal and Installation).

    Refer to: Rear Seat Cushion (501-10 Seating, Removal and Installation).

    Refer to: Rear Seat Backrest (501-10 Seating, Removal and Installation).

    Refer to: B-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

    Refer to: Front Scuff Plate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

    Refer to: Rear Scuff Plate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
