 Service Manual
Power Brake Actuation
Brake Booster-2.5L Duratec (147kW/200PS) - VI5, RHD 4WD/RHD FWD. (12 451 0)

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Brake System Health and Safety Precautions (100-00 General Information, Description and Operation).

2. Torque: 24 Nm

Brake Booster-2.5L Duratec (147kW/200PS) - VI5, RHD 4WD/RHD FWD. (12 451 0)

3. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (412-00 Climate Control System - General Information, General Procedures).

Refer to: Brake Master Cylinder - 2.5L Duratec (147kW/200PS) - VI5 (206-06 Hydraulic Brake Actuation, Removal and Installation).

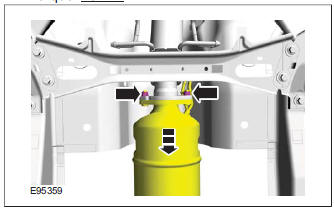

Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation).

Brake Booster-2.5L Duratec (147kW/200PS) - VI5, RHD 4WD/RHD FWD. (12 451 0)

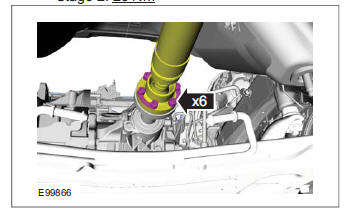

5. Torque:

  • Stage 1: 10 Nm
  • Stage 2: 25 Nm

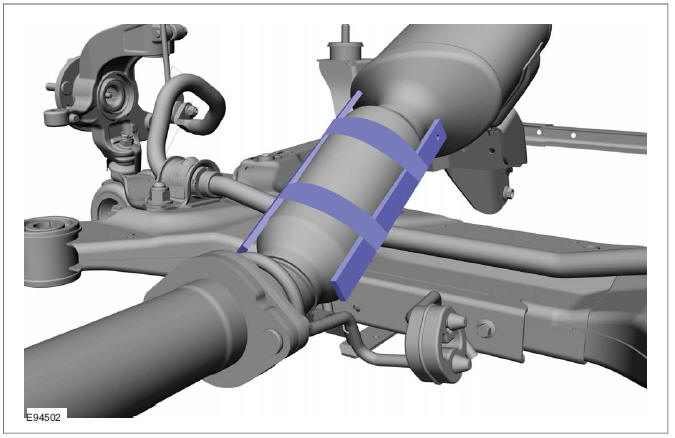

Brake Booster-2.5L Duratec (147kW/200PS) - VI5, RHD 4WD/RHD FWD. (12 451 0)

Brake Booster-2.5L Duratec (147kW/200PS) - VI5, RHD 4WD/RHD FWD. (12 451 0)

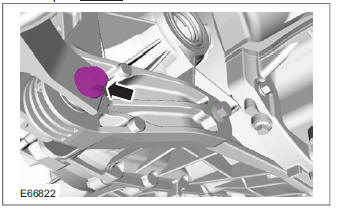

7. Torque: 48 Nm

Brake Booster-2.5L Duratec (147kW/200PS) - VI5, RHD 4WD/RHD FWD. (12 451 0)

8. Torque: 10 Nm

Brake Booster-2.5L Duratec (147kW/200PS) - VI5, RHD 4WD/RHD FWD. (12 451 0)

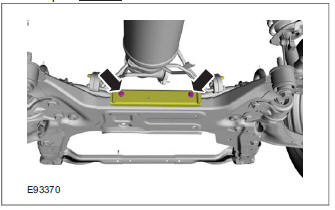

9. Torque: 80 Nm

Brake Booster-2.5L Duratec (147kW/200PS) - VI5, RHD 4WD/RHD FWD. (12 451 0)

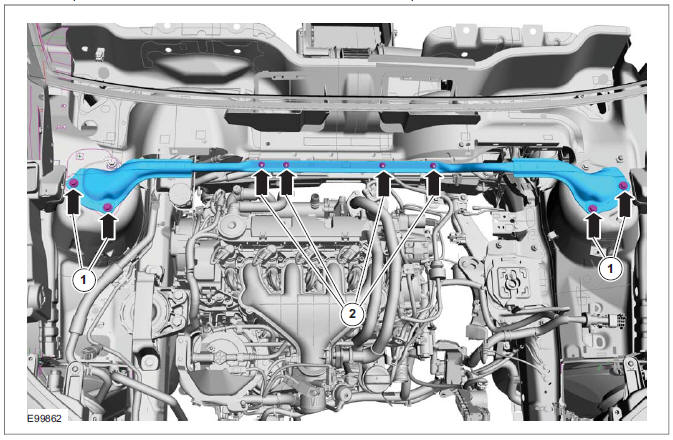

10. 1. Torque: 35 Nm

2. Torque: 10 Nm

Brake Booster-2.5L Duratec (147kW/200PS) - VI5, RHD 4WD/RHD FWD. (12 451 0)

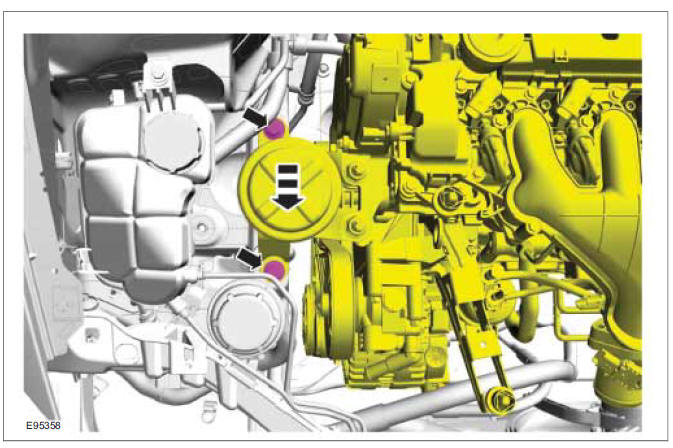

11. Torque: 80 Nm

Brake Booster-2.5L Duratec (147kW/200PS) - VI5, RHD 4WD/RHD FWD. (12 451 0)

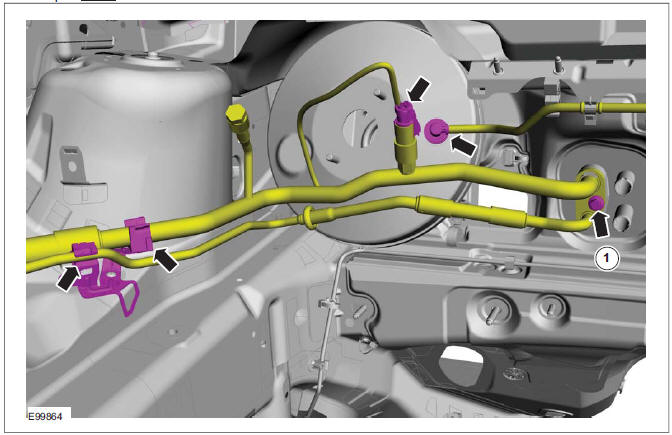

12.Torque: 18 Nm

Brake Booster-2.5L Duratec (147kW/200PS) - VI5, RHD 4WD/RHD FWD. (12 451 0)

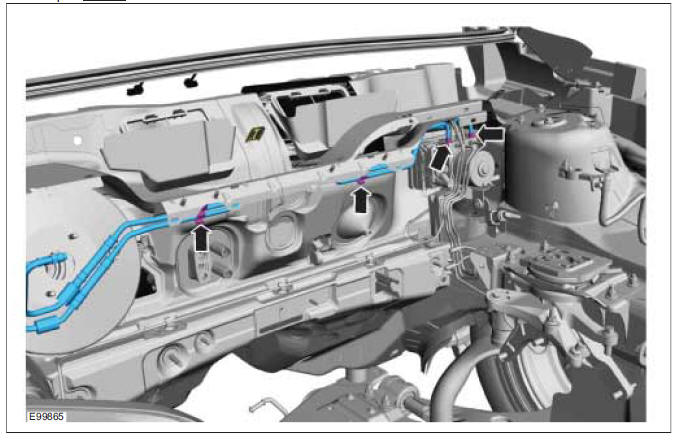

13.Torque: 8 Nm

Brake Booster-2.5L Duratec (147kW/200PS) - VI5, RHD 4WD/RHD FWD. (12 451 0)

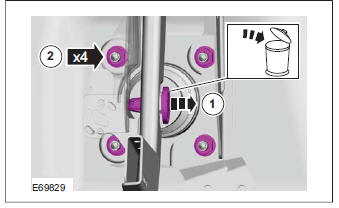

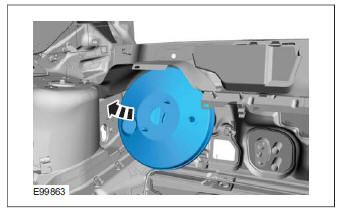

Brake Booster-2.5L Duratec (147kW/200PS) - VI5, RHD 4WD/RHD FWD. (12 451 0)

Installation

CAUTION: Make sure that the brake booster pushrod is correctly located.

1. To install, reverse the removal procedure.
