Ford Kuga
 Service Manual
Uni-Body, Subframe and Mounting System
Front Subframe

Special Tool(s) I General Equipment

204-605 Separator, Lower Arm Ball Joint

Removal

1. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

Front Subframe

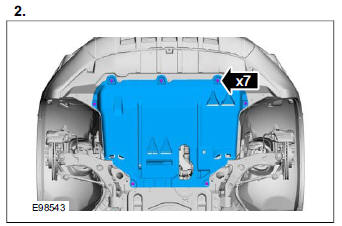

3. If equipped.

Torque: 8 Nm

Front Subframe

Special Tool(s) I General Equipment

205-880 Alignment Pins, Subframe

Transmission Jack

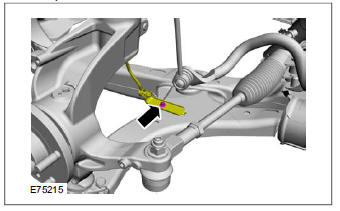

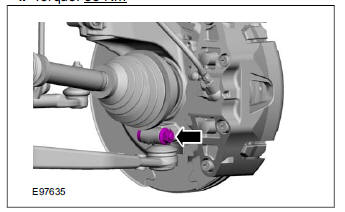

4. Torque: 83 Nm

Front Subframe

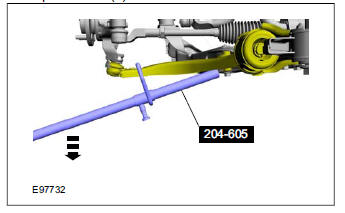

5. Special Tool(s): 204-605

Front Subframe

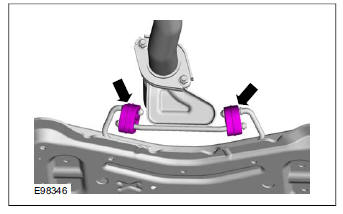

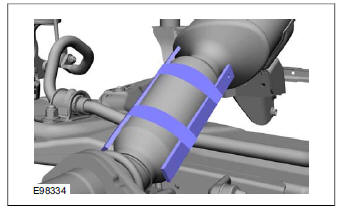

CAUTION: Make sure that the exhaust flexible pipe is not forcibly bent.

Front Subframe

Front Subframe

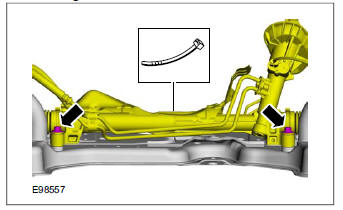

8. Torque:

  • Stage 1: 35 Nm
  • Stage 2: Loosen 360
  • Stage 3: 85 Nm

Front Subframe

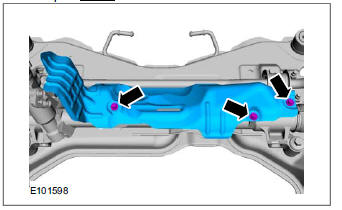

9. Torque: 7 Nm

Front Subframe

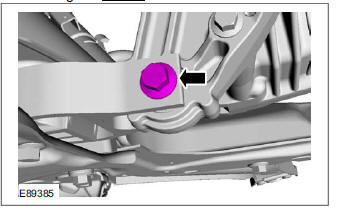

10. Torque: 47.5 Nm 2008.50

Front Subframe

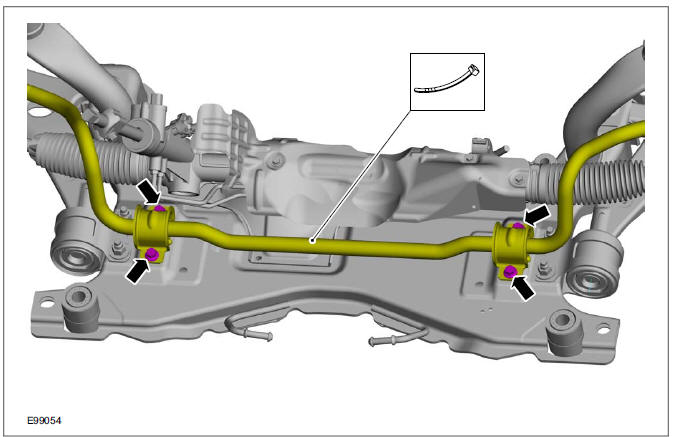

11. Torque:

  • Stage 1: 40 Nm
  • Staae 2: 60

Front Subframe

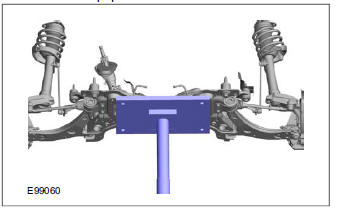

12 General Equipment: Transmission Jack

Front Subframe

WARNING: This step requires the aid of another technician.

CAUTION: Make sure that the wiring harness does not catch.

NOTE: This step is only necessary when installing a new component.

Front Subframe

WARNING: This step requires the aid of another technician.

CAUTION: Make sure that the wiring harness does not catch.

Remove the following items:

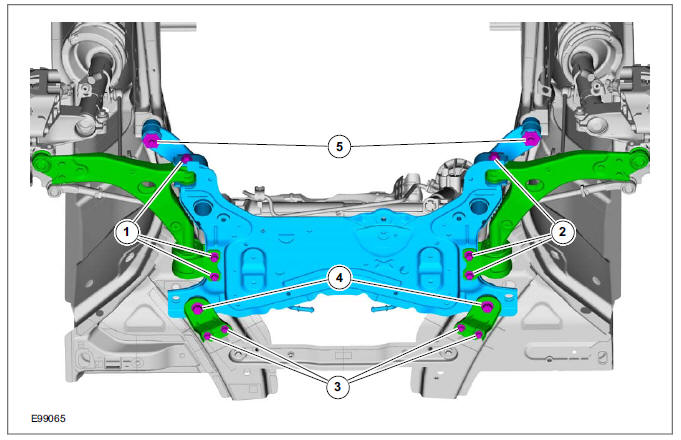

1. Torque: 70 Nm

2- Torque:

  • Stage 1 : ! 4 0 N m
  • Staae 2: 180

3. Torque: 125 Nm

Front Subframe

Installation

1. To install, reverse the removal procedure.

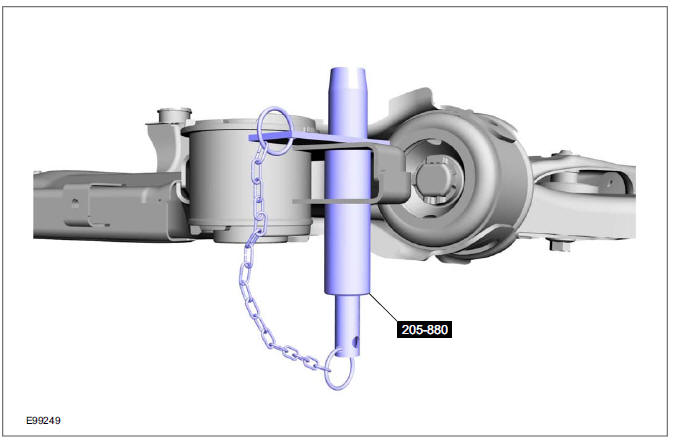

2. Special Tool(s): 205-880

Front Subframe
