Seats
Head Restraints

WARNINGS

  • Fully adjust the head restraint before you sit in or operate your vehicle. This will help minimize the risk of neck injury in the event of a collision. Do not adjust the head restraint when your vehicle is moving.
  • The head restraint is a safety device.

    Whenever possible it should be installed and properly adjusted when the seat is occupied.

  • Install the head restraint properly to help minimize the risk of neck injury in the event of a collision.

Front seat head restraint

Front seat head restraint

Rear head restraints

Rear head restraints

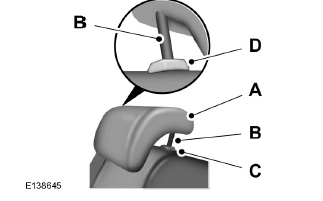

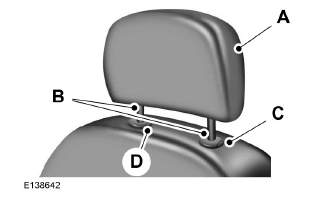

The head restraints consist of:

A. an energy absorbing head restraint

B. two steel stems guide sleeve adjust and unlock button

C.  guide sleeve unlock and remove button

Note: Adjust the seat back to an upright driving position before adjusting the head restraint. Adjust the head restraint so that the top of it is level with the top of your head and as far forward as possible. Make sure that you remain comfortable. If you are extremely tall, adjust the head restraint to its highest position.

Adjusting the Head Restraint

Raising the Head Restraint

Pull the head restraint up.

Lowering the Head Restraint

1. Press and hold button C.

2. Push the head restraint down.

Removing the Head Restraint

1. Pull the head restraint up until it reaches its highest position.

2. Press and hold buttons C and D.

3. Pull the head restraint up.

Installing the Head Restraint

Align the steel stems into the guide sleeves and push the head restraint down until it locks.

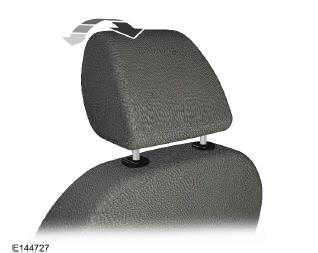

Tilting the Head Restraint

The front head restraints may have a tilting feature for extra comfort. To tilt the head restraint, do the following:

Tilting the Head Restraint

1. Adjust the seat back to an upright driving or riding position.

2. Pivot the head restraint forward toward your head to the desired position.

After the head restraint reaches the forward-most tilt position, pivot it forward again to release it to the rearward, un-tilted position.
