Lighting
Headlamp Leveling

Note:Vehicles with Xenon headlamps have automatic headlamp leveling.

Headlamp Leveling

A Raised headlamp beams

B Lowered headlamp beams

You can adjust the level of the headlamp beams according to your vehicle load.

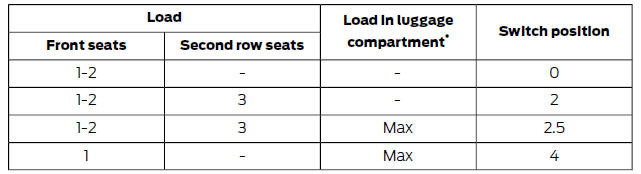

Recommended Headlamp Leveling Switch Positions

Recommended Headlamp Leveling Switch Positions

* See Vehicle Identification Plate

Cornering Lamps

Cornering Lamps

A Headlamp beam

B Cornering lamp beam

The cornering lamps illuminate the inside of a corner when you are turning.

Direction Indicators

Direction Indicators

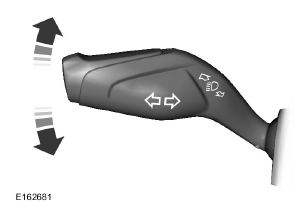

Push the lever up or down to use the direction indicators.

Note: Tap the lever up or down to make the direction indicators flash three times to indicate a lane change.
