 Service Manual
Power Steering
Power Steering Pump to Steering Gear Pressure Line - 2.5L Duratec (147kW/200PS) - VI5(13 440 0; 13 443 0)

General Equipment

Hose Clamp Remover/Installer

Removal

1. Refer to: Steering System Health and Safety Precautions (100-00 General Information, Description and Operation).

2. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

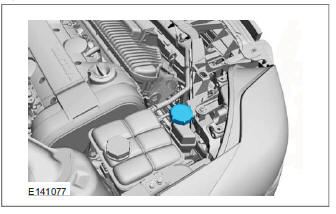

Power Steering Pump to Steering Gear Pressure Line - 2.5L Duratec (147kW/200PS) - VI5(13 440 0; 13 443 0)

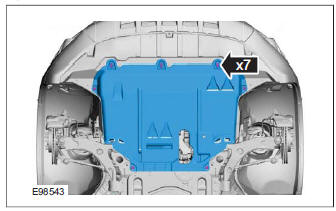

Power Steering Pump to Steering Gear Pressure Line - 2.5L Duratec (147kW/200PS) - VI5(13 440 0; 13 443 0)

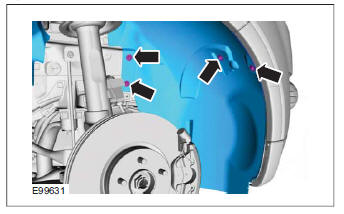

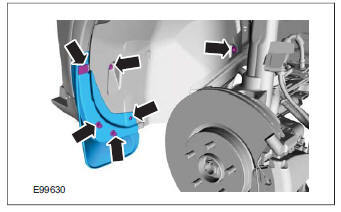

Power Steering Pump to Steering Gear Pressure Line - 2.5L Duratec (147kW/200PS) - VI5(13 440 0; 13 443 0)

WARNING: Be prepared to collect escaping fluid.

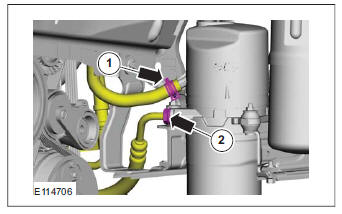

1. General Equipment: Hose Clamp Remover/Installer

2. Torque: 30 Nm

Power Steering Pump to Steering Gear Pressure Line - 2.5L Duratec (147kW/200PS) - VI5(13 440 0; 13 443 0)

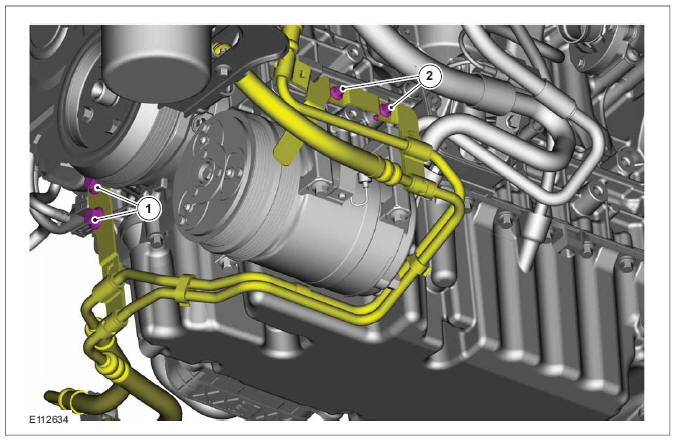

7. 1. Torque: 23 Nm

2. Torque: 7 Nm

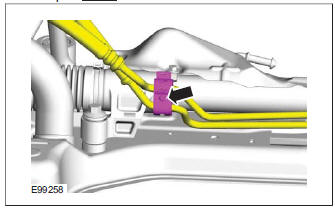

Power Steering Pump to Steering Gear Pressure Line - 2.5L Duratec (147kW/200PS) - VI5(13 440 0; 13 443 0)

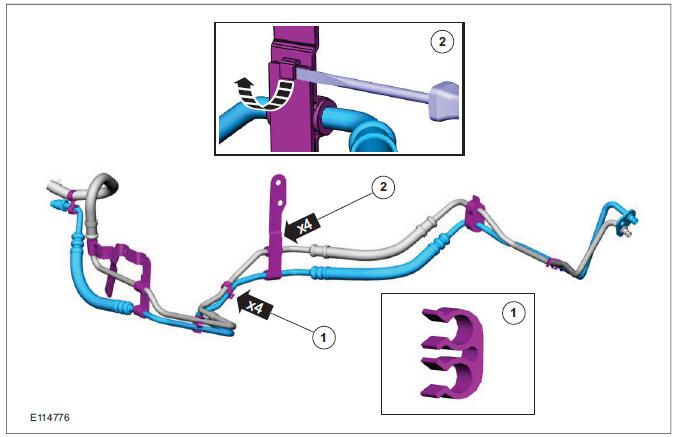

8. Torque: 4 Nm

Power Steering Pump to Steering Gear Pressure Line - 2.5L Duratec (147kW/200PS) - VI5(13 440 0; 13 443 0)

WARNING: Be prepared to collect escaping fluid.

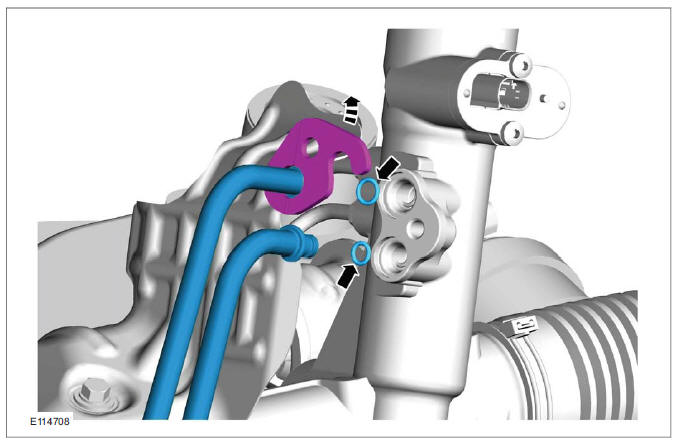

CAUTION: Make sure that all openings are sealed.

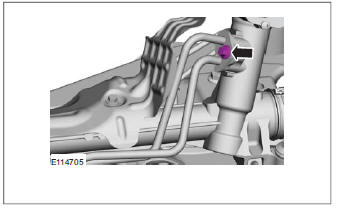

Torque: 18 Nm

Power Steering Pump to Steering Gear Pressure Line - 2.5L Duratec (147kW/200PS) - VI5(13 440 0; 13 443 0)

Power Steering Pump to Steering Gear Pressure Line - 2.5L Duratec (147kW/200PS) - VI5(13 440 0; 13 443 0)

Power Steering Pump to Steering Gear Pressure Line - 2.5L Duratec (147kW/200PS) - VI5(13 440 0; 13 443 0)

Installation

1. To install, reverse the removal procedure.

Power Steering Pump to Steering Gear Pressure Line - 2.5L Duratec (147kW/200PS) - VI5(13 440 0; 13 443 0)

Power Steering Pump to Steering Gear Pressure Line - 2.5L Duratec (147kW/200PS) - VI5(13 440 0; 13 443 0)

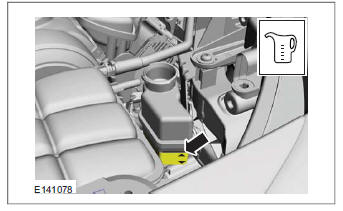

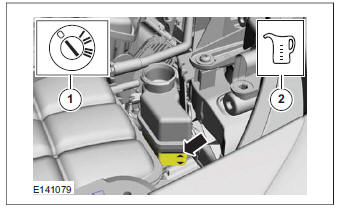

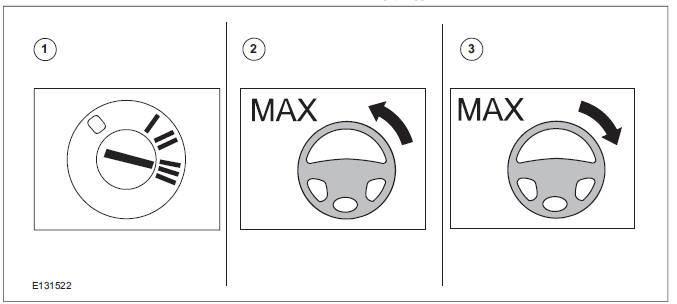

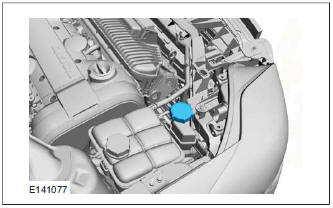

4. NOTE: Make sure the fluid in the reservoir does not fall below the MIN mark, as air could enter the system. Slowly turn the steering wheel from lock to lock five times.

Power Steering Pump to Steering Gear Pressure Line - 2.5L Duratec (147kW/200PS) - VI5(13 440 0; 13 443 0)

Power Steering Pump to Steering Gear Pressure Line - 2.5L Duratec (147kW/200PS) - VI5(13 440 0; 13 443 0)

Power Steering Pump to Steering Gear Pressure Line - 2.5L Duratec (147kW/200PS) - VI5(13 440 0; 13 443 0)
