Keys and Remote Controls
Remote Control

Reprogramming the Unlocking Function

Note:When you press the unlock button either all the doors are unlocked or only the driver's door and the liftgate are unlocked.

Pressing the unlock button again unlocks all the doors.

Press and hold the unlock and lock buttons on the remote control simultaneously for at least four seconds with the ignition off.

The direction indicators will flash twice to confirm the change.

To return to the original unlocking function, repeat the process.

Changing the Remote Control Battery

Make sure that you dispose of old batteries in an environmentally friendly way.

Seek advice from your local authority regarding recycling.

Remote Control with a Folding Key Blade

Remote Control with a Folding Key Blade

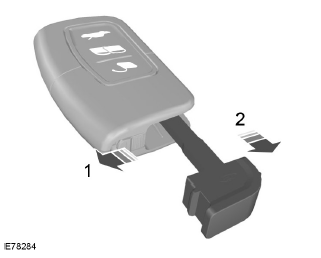

1. Slide the release slider in the direction of the arrow.

2. Remove the key blade.

Remote Control with a Folding Key Blade

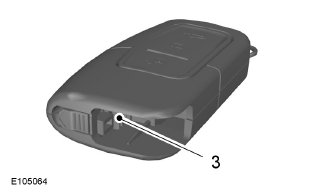

3. Twist the screwdriver in the position shown to separate the two halves of the remote control.

4. Carefully prise out the battery with the screwdriver.

Note: Do not touch the battery contacts or the printed circuit board with the screwdriver.

5. Install a new battery (3V CR 2032) with the + facing downwards.

6. Assemble the two halves of the remote control.

7. Install the key blade.

Remote Control without a Folding Key Blade

Remote Control without a Folding Key Blade

1. Press and hold the buttons on the edges to release the cover. Carefully remove the cover.

2. Remove the key blade.

Remote Control without a Folding Key Blade

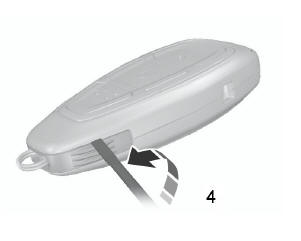

3. Twist the screwdriver in the position shown to start separating the two halves of the remote control.

Remote Control without a Folding Key Blade

4. Twist the screwdriver in the position shown to separate the two halves of the remote control.

Remote Control without a Folding Key Blade

Note: Do not touch the battery contacts or the printed circuit board with the screwdriver.

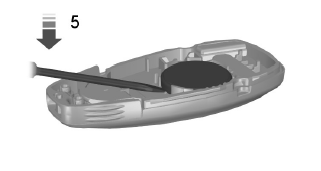

5. Carefully prise out the battery with the screwdriver.

6. Install a new battery (3V CR 2032) with the + facing downwards.

7. Assemble the two halves of the remote control.

8. Install the key blade.

Replacing a Lost Key or Remote Control

Replacement keys or remote controls can be purchased from an authorized dealer.

Authorized dealers can program remote controls for your vehicle. See Passive Anti-Theft System

To re-program the passive anti-theft system see an authorized dealer.
