 Service Manual
Climate Control
Suction Accumulator to Air Conditioning (A/C) Compressor Line - 2.5L Duratec (147kW/200PS) - VI5

Removal

NOTE: Removal steps in this procedure may contain installation details

1. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (412-00 Climate Control System - General Information, General Procedures).

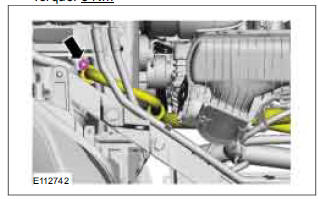

2. CAUTION: Make sure that all openings are sealed.

Torque: 8 Nm

Suction Accumulator to Air Conditioning (A/C) Compressor Line - 2.5L Duratec (147kW/200PS) - VI5

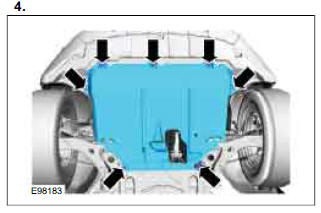

3. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation).

Suction Accumulator to Air Conditioning (A/C) Compressor Line - 2.5L Duratec (147kW/200PS) - VI5

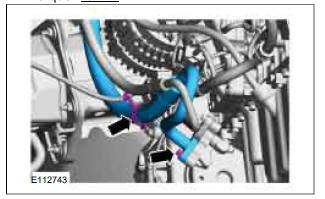

5. CAUTION: Make sure that all openings are sealed.

Torque: 20 Nm

Suction Accumulator to Air Conditioning (A/C) Compressor Line - 2.5L Duratec (147kW/200PS) - VI5

Installation

1. To install, reverse the removal procedure. 2. Coat the O-ring seals on the refrigerant lines. Material: Compressor Oil - Air Conditioning (WSH-M1C231-B / 6U7J-M1C231-AA) refrigerant oil
