Air Conditioning (A/C) Clutch Air Gap Adjustment

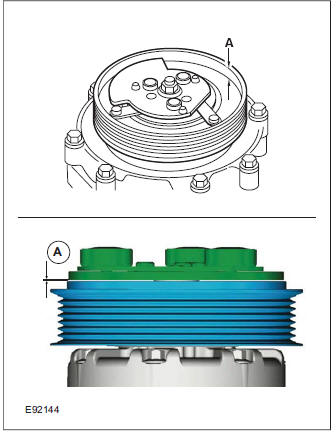

1. Check the gap A (measure the difference between the engaged and disengaged positions of the air conditioning clutch) at 60 intervals around the circumference of the pulley. Operate the air conditioning clutch several times with the aid of a 5 A fused cable. Refer to the relevant wiring diagram for the correct electrical connection.

Refer to: Specifications (412-00 Climate Control System - General Information, Specifications).

Air Conditioning (A/C) Clutch Air Gap Adjustment

Air Conditioning (A/C) Clutch Air Gap Adjustment

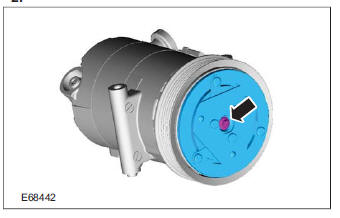

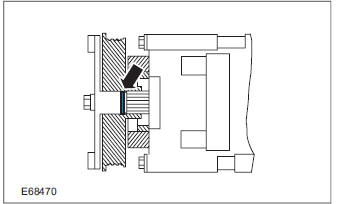

3. If necessary correct the gap A using spacer washers.

Air Conditioning (A/C) Clutch Air Gap Adjustment

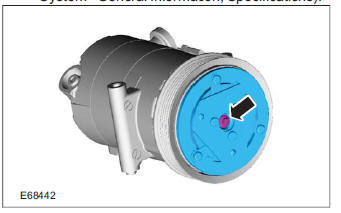

4. Refer to: Specifications (412-00 Climate Control System - General Information, Specifications).

Air Conditioning (A/C) Clutch Air Gap Adjustment

5. Check the gap A as described in step 1. If necessary, repeat steps 2-5.
