Ford Kuga

 Service Manual

Information and Entertainment System

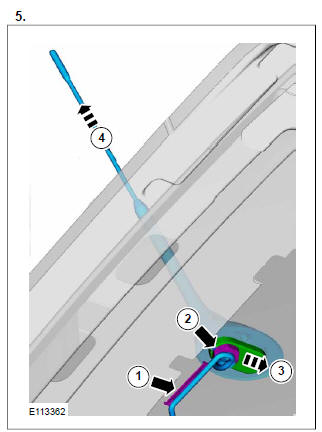

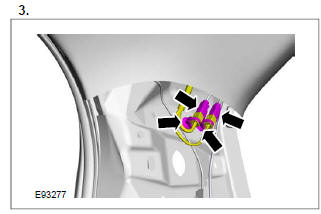

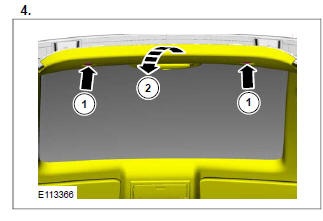

Audio Unit Antenna - Vehicles With: Glass Roof Panel

Removal

1. On both sides.

Refer to: C-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

2. On both sides.

Refer to: D-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

Installation

1. To install, reverse the removal procedure.
