Ford Kuga

 Service Manual

Rear Disc Brake
Brake Pads (12 238 0)

Special Tool(s)

206-012 Retractor, Rear Brake Caliper Piston

Materials

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Brake System Health and Safety Precautions (100-00 General Information, Description and Operation).

2. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

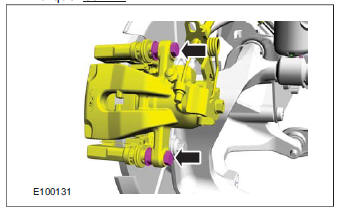

WARNING: Make sure that no load is placed on the brake hose.

Torque: 35 Nm

CAUTIONS:

• Make sure that the component is not bent.
• Make sure that the clips are correctly located.

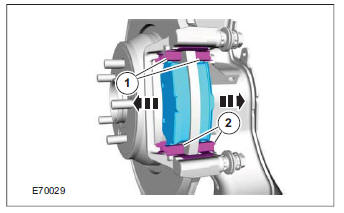

NOTE: Note the position of each component before removal.

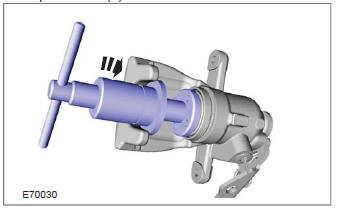

5. Special Tool(s): 206-012

Installation

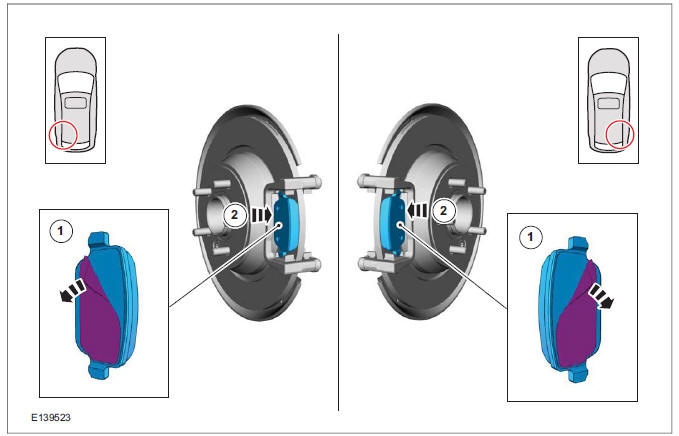

CAUTION: Make sure that the mating faces are clean and free of foreign material.

Remove the adhesive foil from the rear of the outer brake pad.

2. To install, reverse the removal procedure.

3. Depress the brake pedal, check the brake fluid level in the brake fluid reservoir and top up as necessary with brake fluid.

Material: Brake Fluid - Super DOT4 (WSS-M6C57-A2) brake fluid

Brake Pads (12 238 0)

Brake Caliper (12 253 0)

Rear Brake Flexible Hose
