 Service Manual
Brake System - General Information
Brake System Draining and Filling (12 154 0; 12 154 4)

General Equipment

Fluid Container

Draining

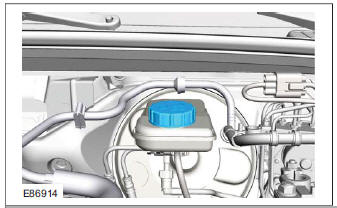

15. Refer to: Brake System Health and Safety Precautions (100-00 General Information, Description and Operation).

Brake System Draining and Filling (12 154 0; 12 154 4)

17. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation).

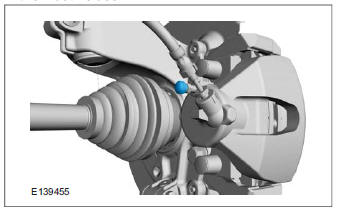

18.On both sides.

Brake System Draining and Filling (12 154 0; 12 154 4)

19.On both sides.

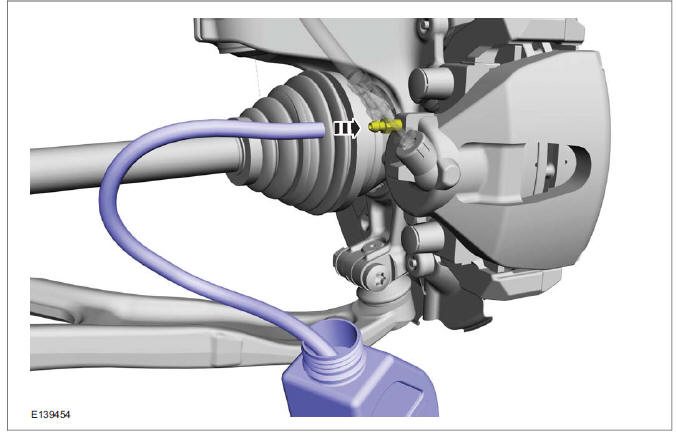

General Equipment: Fluid Container

Brake System Draining and Filling (12 154 0; 12 154 4)

20.On both sides.

Loosen: 180

Brake System Draining and Filling (12 154 0; 12 154 4)

Brake System Draining and Filling (12 154 0; 12 154 4)

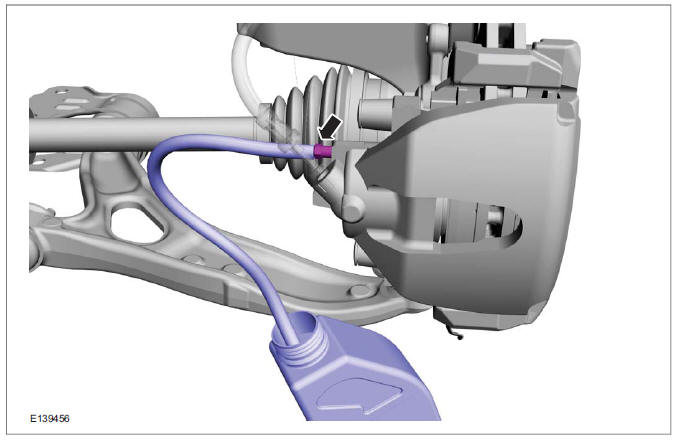

22.On both sides.

Torque: 9 Nm

Brake System Draining and Filling (12 154 0; 12 154 4)

Filling

23. Refer to: Brake System Bleeding (206-00 Brake System - General Information, General Procedures).

Refer to: Brake System Pressure Bleeding (206-00 Brake System - General Information, General Procedures).

Refer to: Component Bleeding (206-00 Brake System - General Information, General Procedures).
