Instrument Cluster » Instrument Cluster (System Operation and Component Description)
Component Description

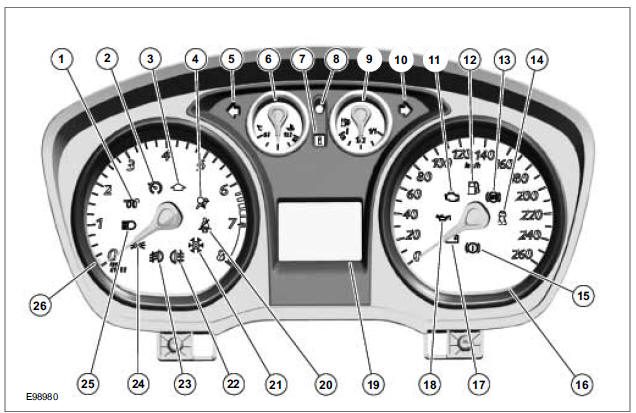

Vehicles with low series instrument cluster

Vehicles with low series instrument cluster

Item Description
1 Glow plug indicator
2 Speed control system indicator
3 Gear shift indicator
4 Air bag warning indicator
5 Left-hand turn signal indicator
6 Coolant temperature gauge
7 Generic warning indicator (red/amber)
8 PATS (passive anti-theft system) control
9 Fuel Level Gauge
10 Right-hand turn signal indicator
11 Malfunction Indicator Lamp (MIL
12 Low fuel warning indicator
13 Anti-lock Braking system (ABS) Warning Indicator
14 Stability assist indicator
15 Brake warning indicator
16 Speedometer
17 Charging system indicator
18 Low oil pressure warning indicator
19 Message center
20 Seat belt indicator
21 Ice warning indicator
22 Rear Fog Lamp Indicator
23 Front fog lamp indicator
24 Headlamp indicator
25 High beam indicator
26 Tachometer

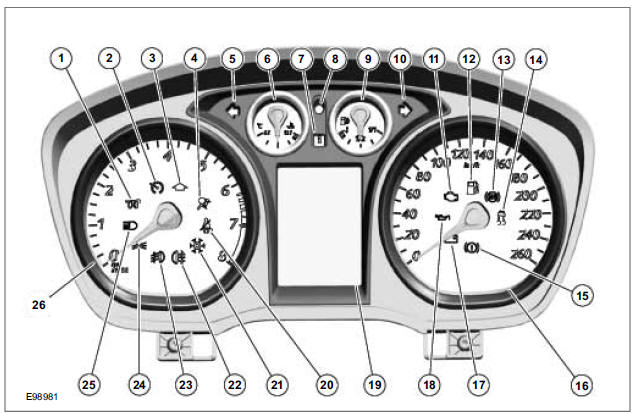

Vehicles with high series instrument cluster

Vehicles with high series instrument cluster

Item Description
1 Glow plug indicator
2 Speed control system indicator
3 Gear shift indicator
4 Air bag warning indicator
5 Left-hand turn signal indicator
6 Coolant temperature gauge
7 Generic warning indicator (red/amber)
8 PATS control
9 Fuel Level Gauge
10 Right-hand turn signal indicator
11 Malfunction Indicator Lamp (MIL)
12 Low fuel warning indicator
13 Anti-lock Braking system (ABS) Warning Indicator
14 Stability assist indicator
15 Brake warning indicator
16 Speedometer
17 Charging system indicator
18 Low oil pressure warning indicator
19 Message center
20 Seat belt indicator
21 Ice warning indicator
22 Rear Fog Lamp Indicator
23 Front fog lamp indicator
24 Headlamp indicator
25 High beam indicator
26 Tachometer
