Body Repairs - General Information » Panel Beating Technique and Smart Repairs

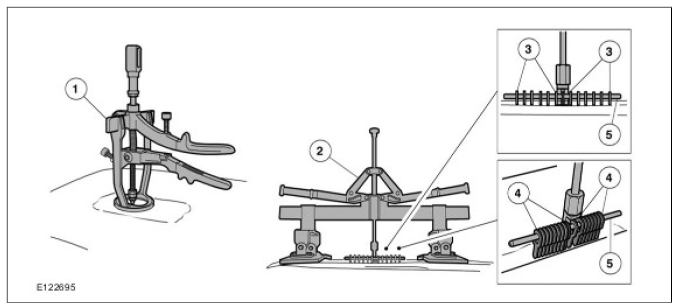

Dynamic puller with counter bearing

Dynamic puller with counter bearing

Des cript ion Description
1 Puller device for minor damage, with integral copper electrode
2 Puller device for more extensive damage
3 U-washers spot-welded in place
4 Puller bits spot-welded in place
5 Attachment for U-washers or puller bits

This method can be used to reshape dents or more extensive damage from the outside.

For minor damage, the copper electrode in the tool is secured onto the panel surface by spot-welding and the puller device is used to pull out the damage without jolting.

For more extensive damage, puller bits or U-washers (depending on the application area) are spot-welded to the panel surface and the area pulled out using the puller device.

Because of the versatile puller and the variable counter bearing, a wide variety of damage can be worked and rectified using this repair method.

Because of the mechanical lever operation, the variable counter bearing and the optimum controlled application of power, this external dent removal system allows dents in almost all vehicle body areas to be pulled out.
