Engine- 2.5L Duratec (147kW/200PS) - VI5
Engine

Disassembly

Special Tool(s) / General Equipment

211-014 Remover, Steering Wheel
303-1054 Locking Tool, Timing Belt Tensioner

Punch

Two Leg Puller

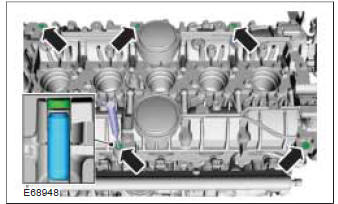

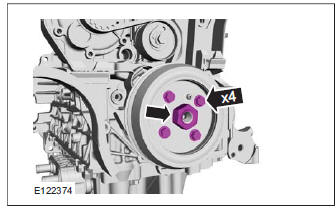

Engine

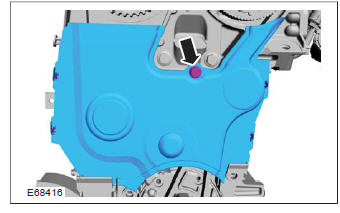

Engine

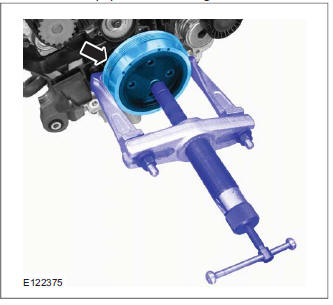

3. General Equipment: Two Leg Puller

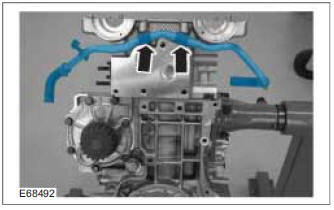

Engine

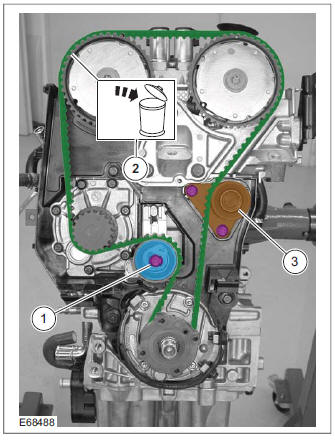

Vehicles with mechanical timing belt tensioner

Engine

Vehicles with automatic timing belt tensioner

WARNING: Take extra care when handling the compressed spring.

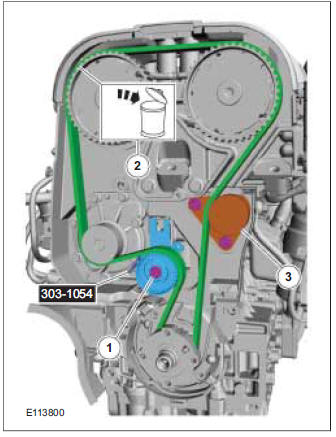

Install the Special Tool(s): 303-1054

Engine

WARNING: Take extra care when handling the compressed spring.

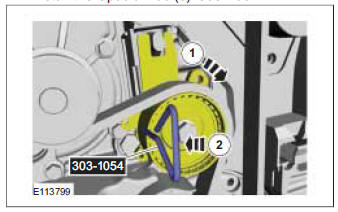

Special Tool(s): 303-1054

Engine

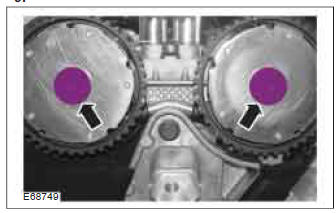

All vehicles

Engine

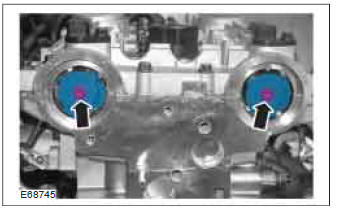

Engine

Engine

Engine

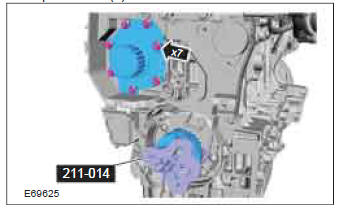

11. Special Tool(s): 211-014

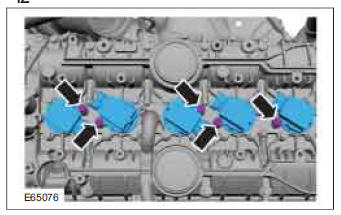

Engine

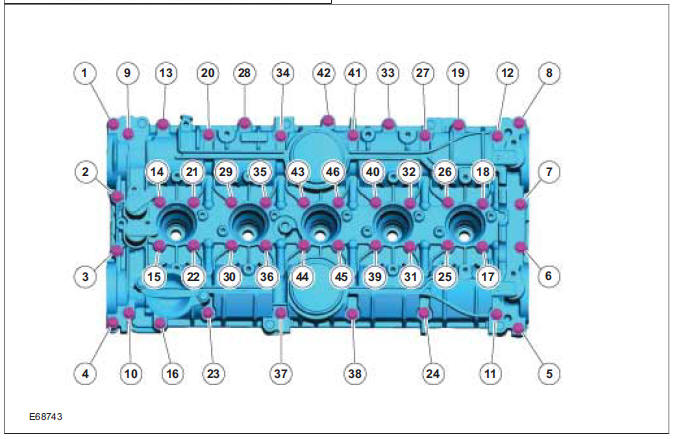

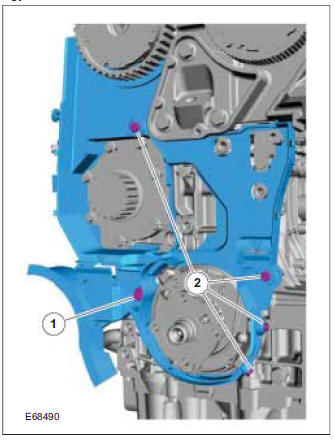

Engine

Engine

Engine

15. General Equipment: Punch

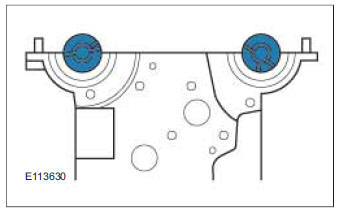

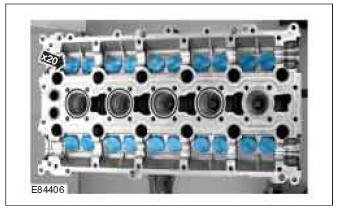

Engine

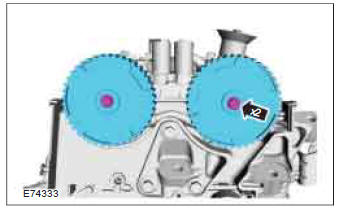

Engine

Engine

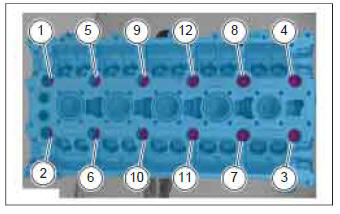

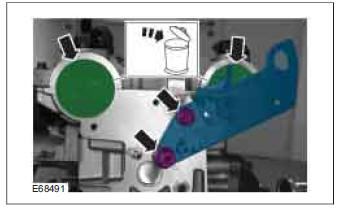

Engine

Engine

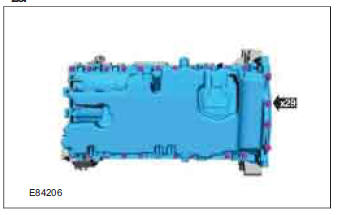

Engine

Engine

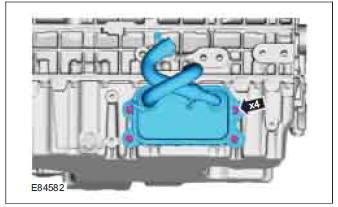

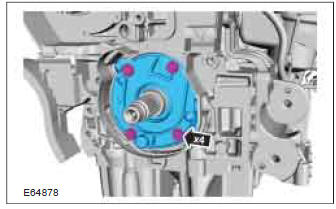

Engine

Engine

Engine

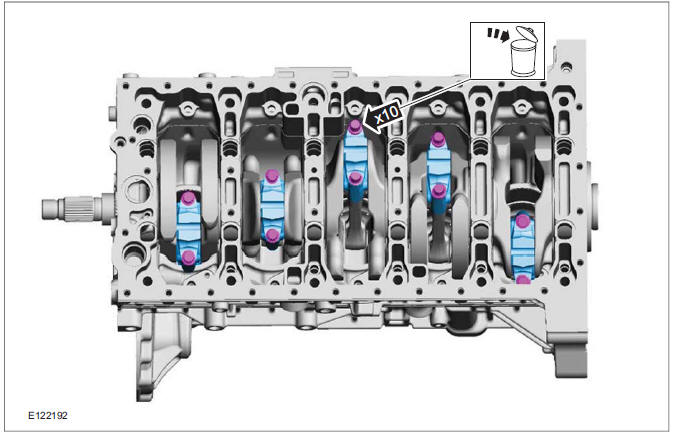

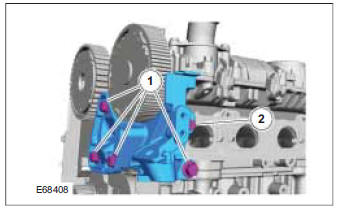

CAUTION: Note the position of the components before removal.

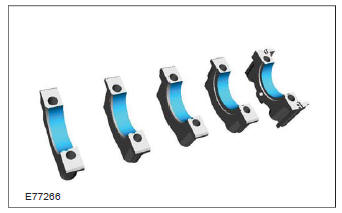

Engine

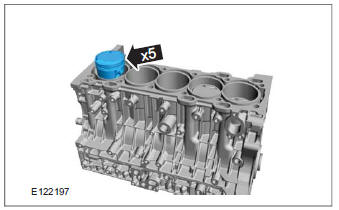

CAUTION: Note the position of the components before removal.

Engine

CAUTION: Note the position of the components before removal.

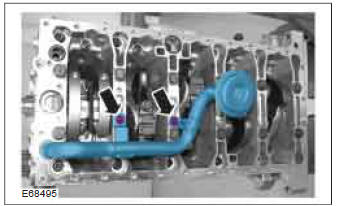

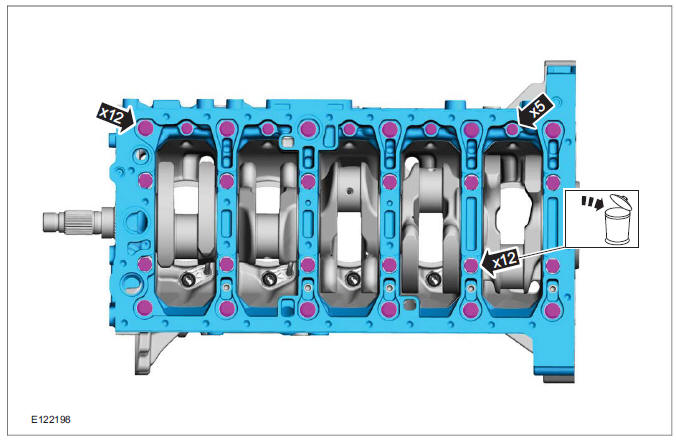

Engine

Engine

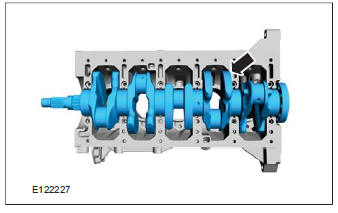

CAUTION: Note the position of the components before removal.

Engine

Engine

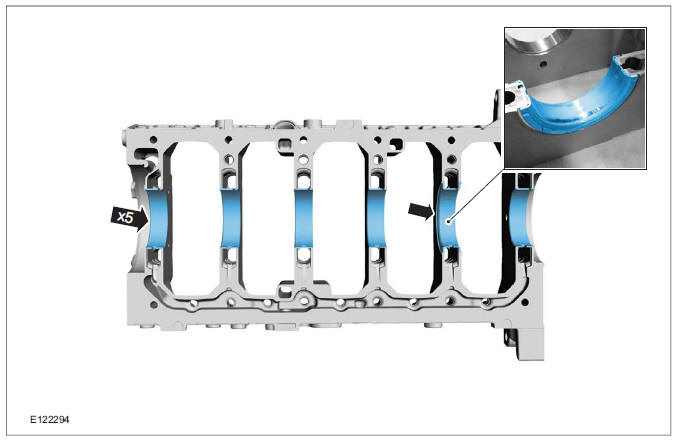

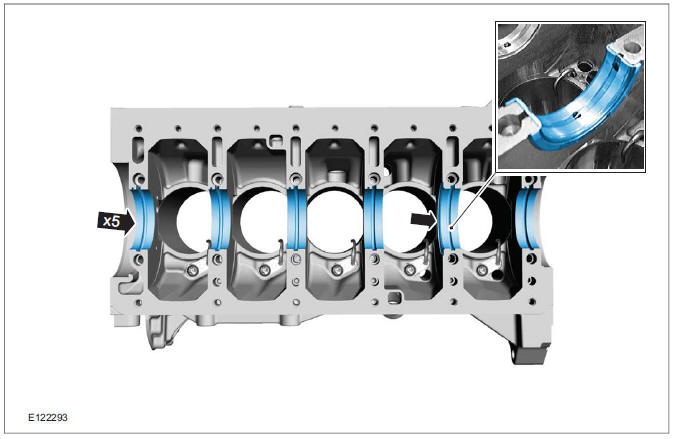

CAUTION: Note the position of the components before removal.

Engine
