Ford Kuga

 Service Manual

Wiring Harnesses
Engine Compartment Wiring Harness

Removal

NOTE: Removal steps in this procedure may contain installation details.

2. Refer to: Headlamp Assembly (417-01 Exterior Lighting, Removal and Installation).

3. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

4. Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

5. Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).

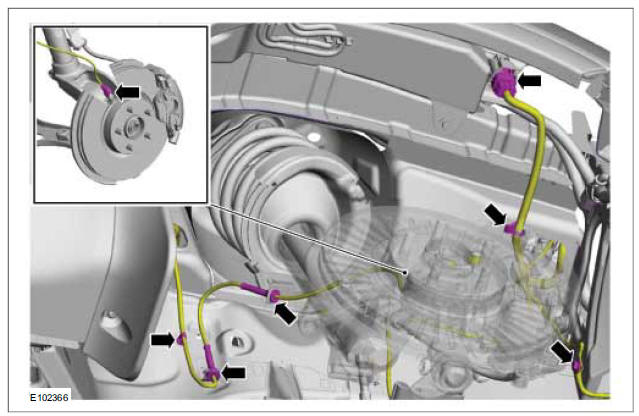

6. Torque: 10 Nm

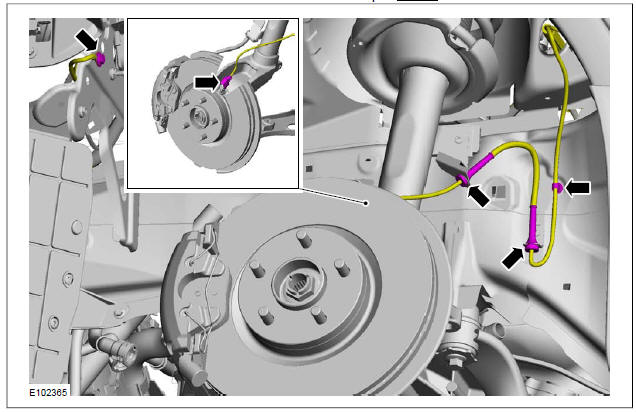

7. Torque: 10 Nm

8. Refer to: Cowl Panel Grille (501-02 Front End Body Panels, Removal and Installation).

9. Refer to: Hydraulic Control Unit (HCU) (206-09 Anti-Lock Control - Stability Assist, Removal and Installation).

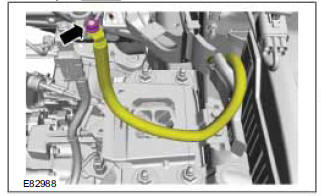

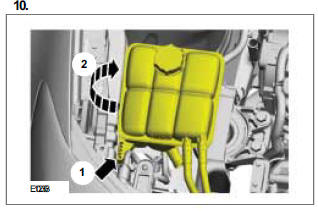

11. Torque: 10 Nm

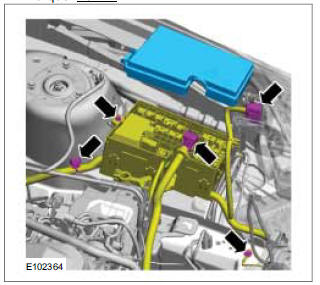

12. Torque: 24 Nm

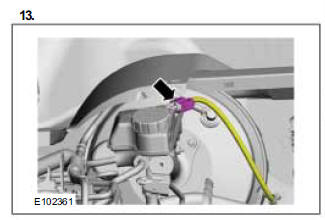

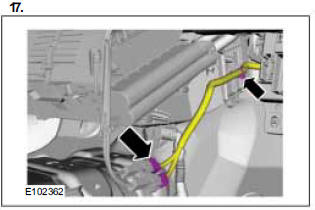

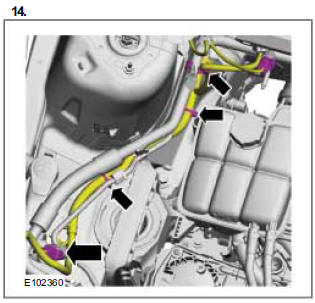

15i Refer to: Glove Compartment - Removal - RHD (501-12 Instrument Panel and Console, Removal and Installation).

16l Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).

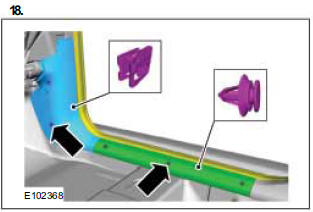

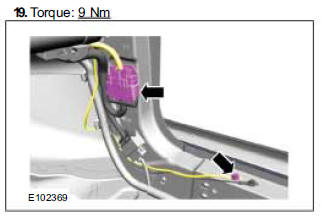

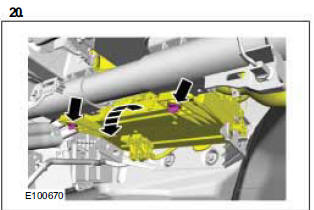

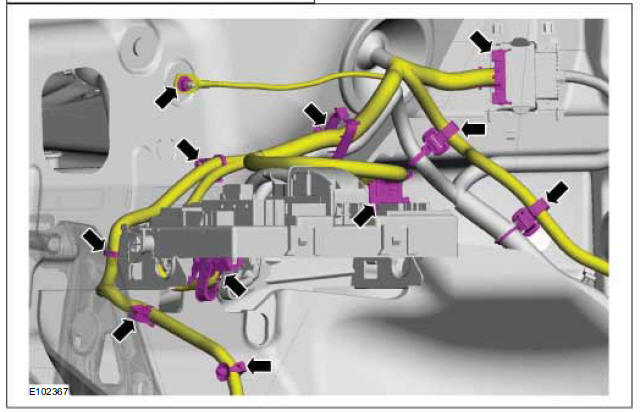

21.Torque: 9 Nm

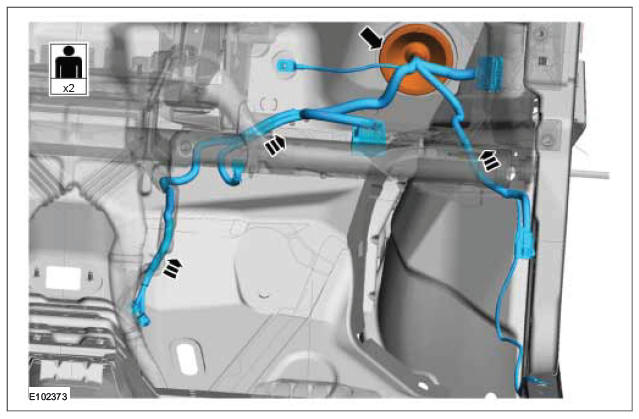

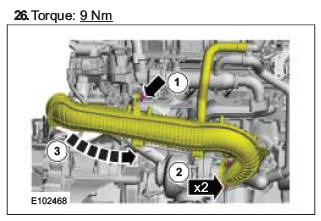

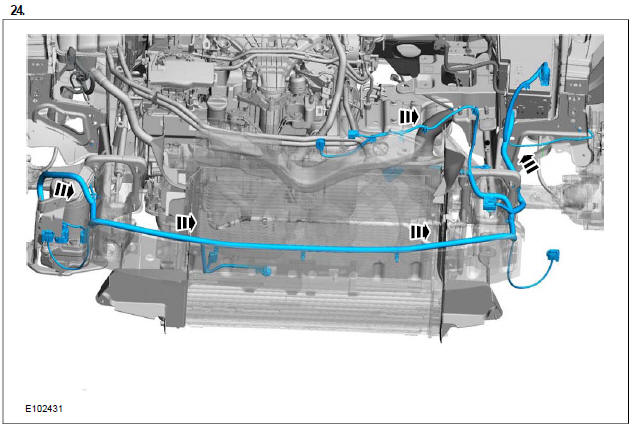

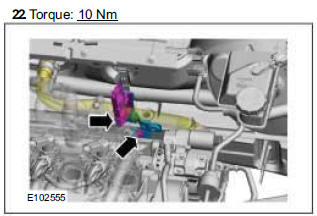

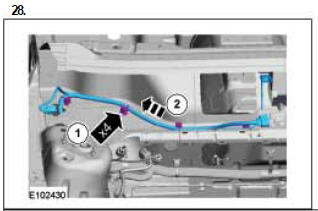

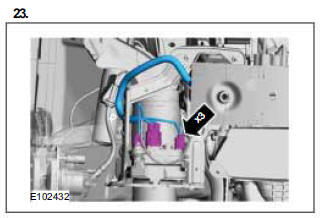

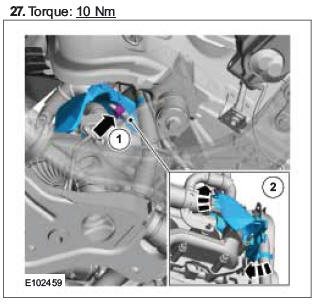

29. Torque: 10 Nm

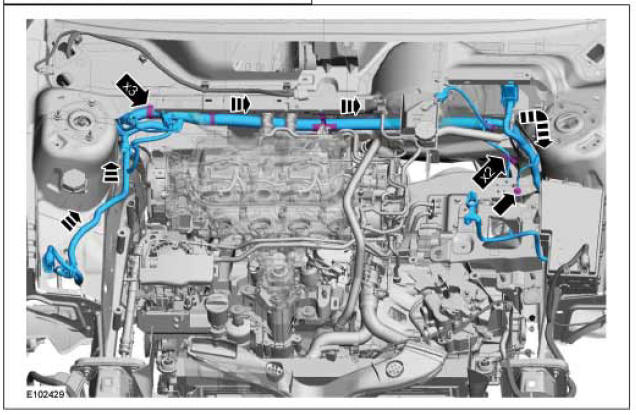

Installation

1. To install, reverse the removal procedure
