Engine- 2.5L Duratec (147kW/200PS) - VI5
Engine (Component Location)

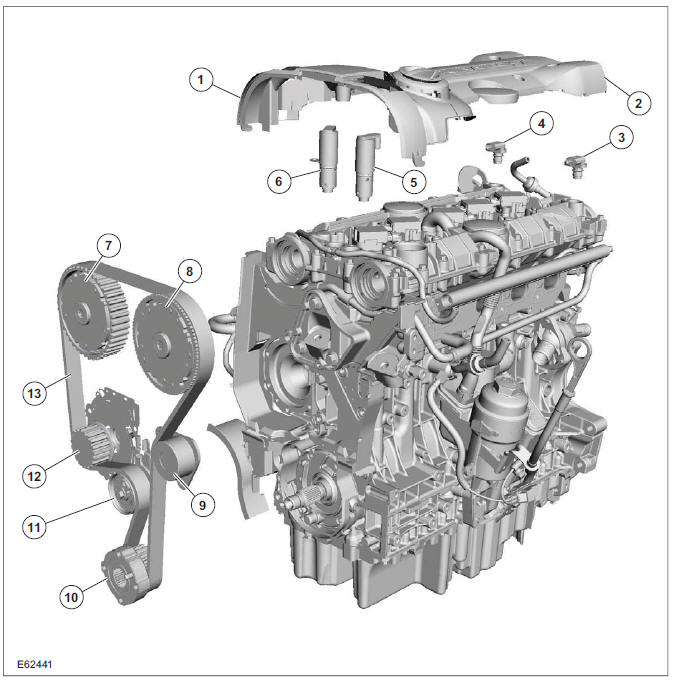

Engine

Engine

Item

Description

1 Front engine cover
2 Rear engine cover
3 CMP (camshaft position) Sensor - intake camshaft
4 CMP Sensor - exhaust camshaft
5 Intake variable camshaft timing oil control solenoid
6 Exhaust variable camshaft timing oil control solenoid
7 Exhaust VCT control unit
8 Intake VCT control unit
9 Timing belt idler pulley
10 Crankshaft timing belt pulley
11 Timing belt tensioner
12 Coolant pump pulley
13 Timing belt

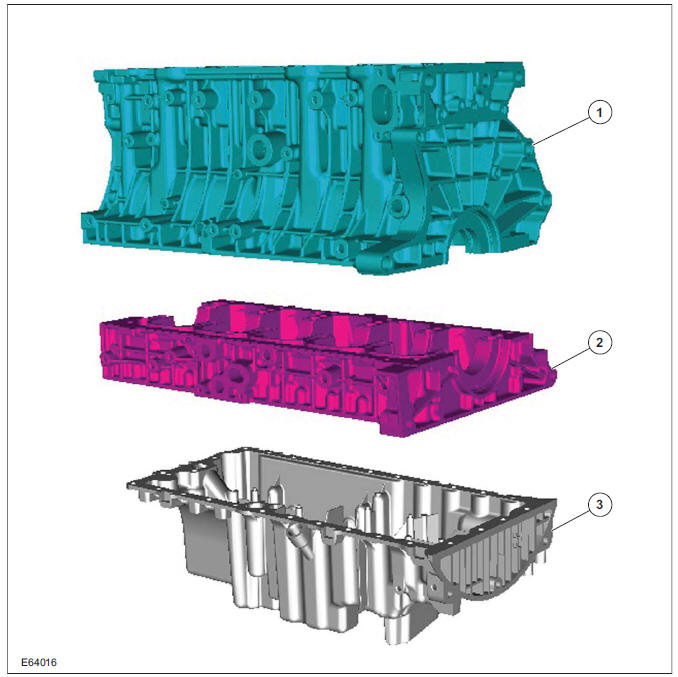

Cylinder block

Cylinder block

Item Description
1 Cylinder block
2 Bedplate
3 Oil sump
