 Service Manual
Glass, Frames and Mechanisms
Front Door Window Regulator

General Equipment

5 mm Drill Bit

Adhesive Tape

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

General Equipment

Blind Rivet Gun

Electric Drill

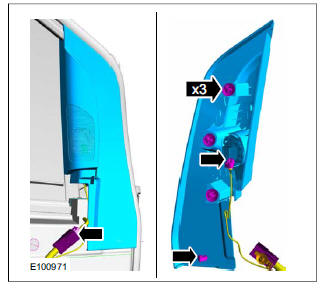

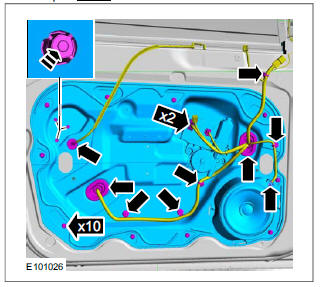

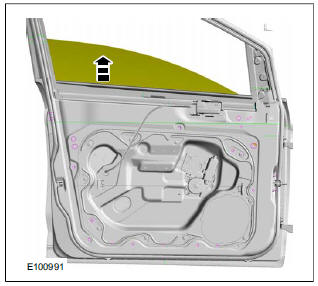

Front Door Window Regulator

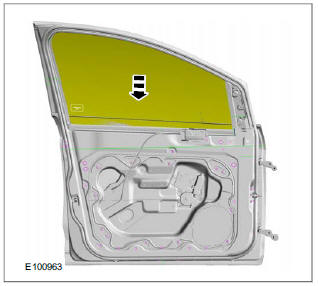

Front Door Window Regulator

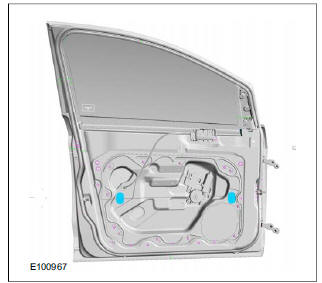

Front Door Window Regulator

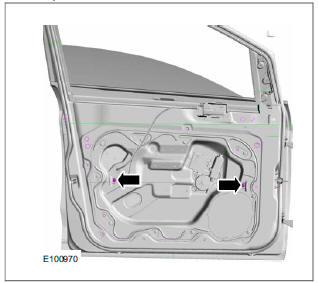

5. Torque: 7 Nm

Front Door Window Regulator

Front Door Window Regulator

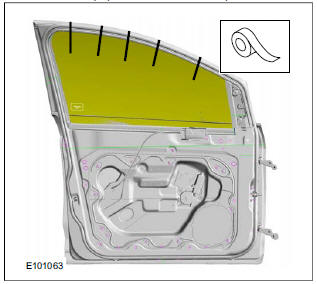

7. General Equipment: Adhesive Tape

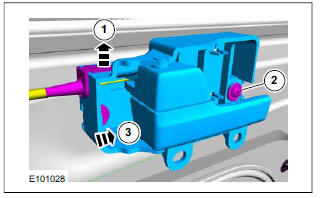

Front Door Window Regulator

Front Door Window Regulator

9. Torque: 8 Nm

Front Door Window Regulator

IO. NOTE: This step is only necessary when installing a new component.

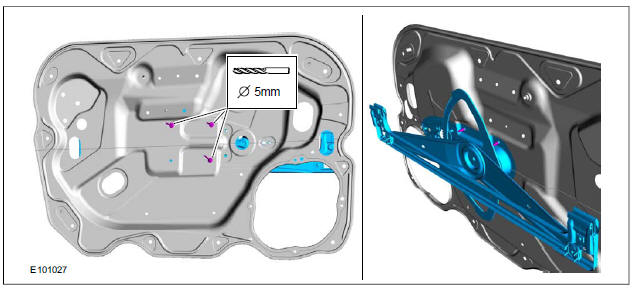

General Equipment: 5 mm Drill Bit

General Equipment: Electric Drill

Front Door Window Regulator

Installation

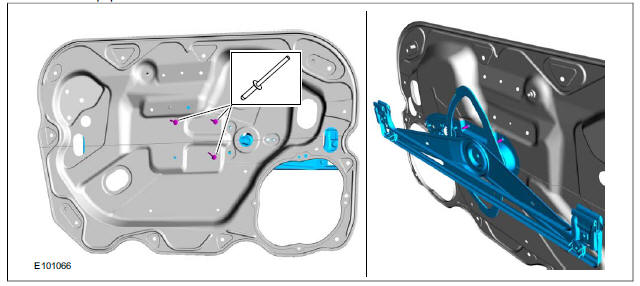

1. General Equipment: Blind Rivet Gun

Front Door Window Regulator

2. To install, reverse the removal procedure.

Refer to: Door Window Motor Initialization (501-11 Glass, Frames and Mechanisms, General Procedures).
