Ford Kuga

 Service Manual

Seating
Front Seat Cushion Heater Mat (33 401 0; 33 401 4)

Removal

1. Refer to: Front Seat Cushion Cover (501-10 Seating, Removal and Installation).

Installation

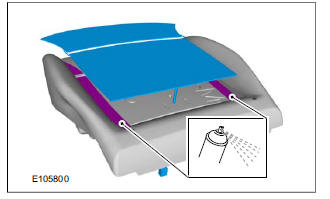

1. Using adhesive, secure the front seat heater mat to the front seat cushion.

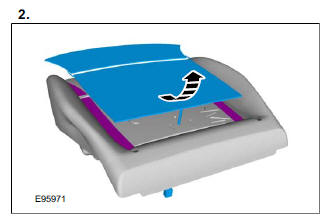

2. Refer to: Front Seat Cushion Cover (501-10 Seating, Removal and Installation).
