Fuel Tank and Lines - 2.5L Duratec (147kW/200PS) - VI5 (Component Location)

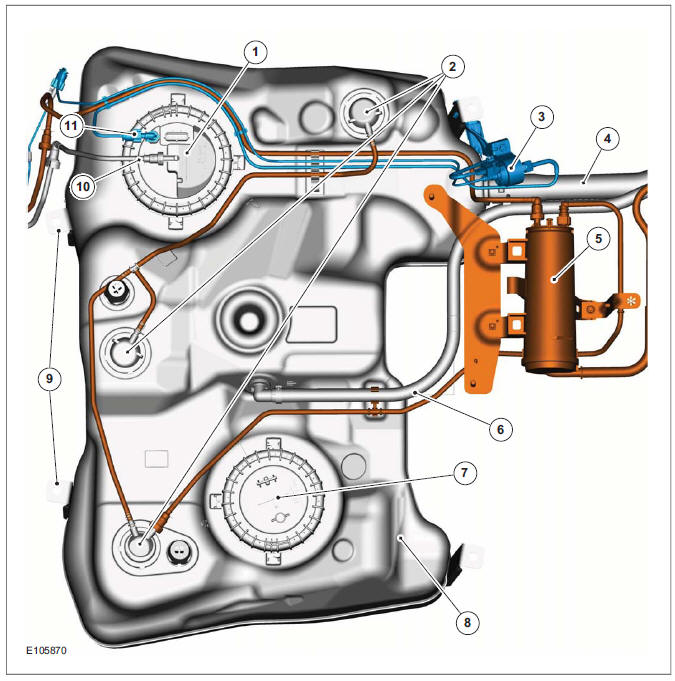

| Item | Description |
| 1 | Fuel pump and level indicator module, right-hand side |
| 2 | EVAP (evaporative emission) extraction points |
| 3 | Fuel pump and lines for the fuel-fired booster heater/additional heater |
| 4 | Fuel-filler pipe |
| 5 | EVAP container and lines |
| 6 | Vent hose, fuel filler pipe |
| 7 | Fuel pump and level indicator module, left-hand side |
| 8 | Fuel tank |
| 9 | Fuel tank retaining straps |
| 10 | Line, fuel tank to fuel distribution pipe |
| 11 | Connection, fuel-fired booster heater/additional heater |

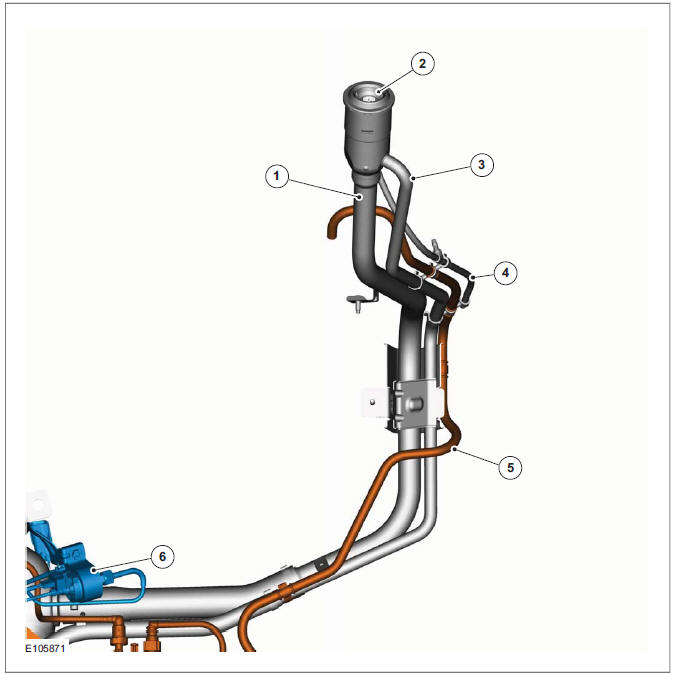

| Item | Description |
| 1 | Fuel-filler pipe |
| 2 | Fuel filler opening, capless |
| 3 | Vent hose, fuel filler pipe |
| 4 | Overflow hose, fuel filler pipe |
| 5 | EVAP venting/breather hose |
| 6 | Fuel pump and lines for the fuel-fired booster heater/additional heater |

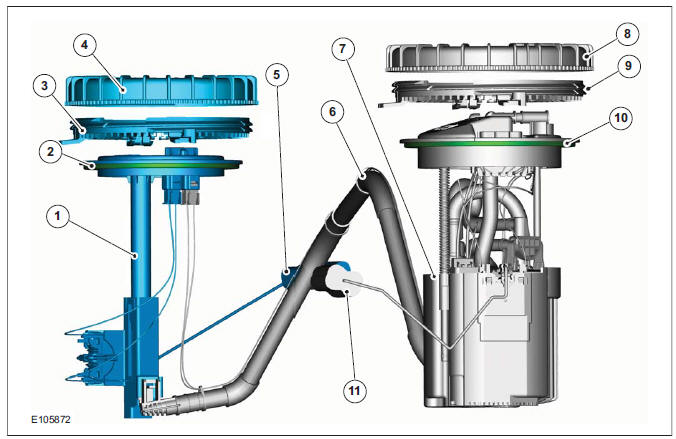

| Item | Description |
| 1 | Fuel pump and level indicator module, left-hand side |
| 2 | Seal, fuel pump and level indicator module, left-hand side |
| 3 | Retaining ring, fuel pump and level indicator module, left-hand side |
| 4 | Nut, fuel pump and level indicator module, left-hand side |
| 5 | Float, fuel pump and level indicator module, left-hand side |
| 6 | Suction hose, left-hand half of the fuel tank |
| 7 | Fuel pump and level indicator module, right-hand side |
| 8 | Nut, fuel pump and level indicator module, right-hand side |
| 9 | Retaining ring, fuel pump and level indicator module, right-hand side |
| 10 | Seal, fuel pump and level indicator module, right-hand side |
| 11 | Float, fuel pump and level indicator module, right-hand side |
