Multifunction Electronic Modules
Generic Electronic Module (GEM)

General Equipment

Ford Diagnostic Equipment

Removal

CAUTIONS:

  • Modules must not be swapped between vehicles.
  • Compare the number of relays and fuses in the defective GEM and the new GEM.

    Transfer from the defective GEM any relays and fuses which are not in the new GEM.

    In doing so, pay attention that fuses with the correct Ampere rating are used, by referring to the wiring diagrams

  • When installing a new GEM on vehicles with a diesel engine, make sure that a fuel pump fuse (F111) with 5A is used.
  • When installing a new GEM on vehicles with a petrol engine, make sure that a fuel pump fuse (F111) with 15A is used.

NOTE: GEM is integrated into the central junction box (CJB) and cannot be removed individually.

1. NOTE: This step is only necessary when installing a new component.

Upload the GEM configuration information using the Programmable Modules Installation Routine.

General Equipment: Ford Diagnostic Equipment

2. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

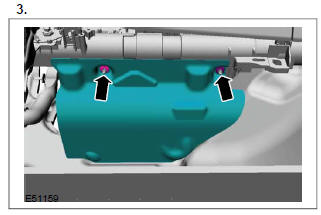

Generic Electronic Module (GEM)

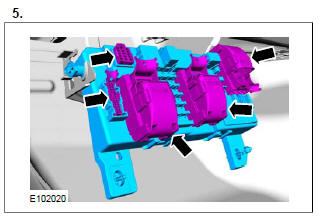

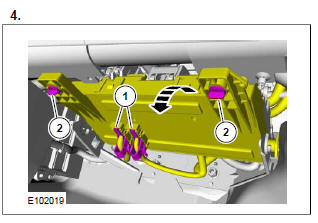

Generic Electronic Module (GEM)

Generic Electronic Module (GEM)

Installation

1. To install, reverse the removal procedure.

2. NOTE: This step is only necessary when installing a new component.

Download the GEM configuration information to the newly installed GEM using the programmable modules installation routine.

3. NOTE: This step is only necessary when installing a new component.

Program all keys using the Key Programming Routine.

General Equipment: Ford Diagnostic Equipment
