Exterior Lighting » Headlamp Leveling
Inspection and Checking

NOTE: The generic electronic module (GEM) forms part of the central junction box (CJB).

NOTE: Before reading out the vehicle-specific data, remake all the separated electrical connections in the vehicle, so that communication between the module and the Ford approved diagnostic tool is ensured.

1. Verify the customer concern.

2. Visually inspect for obvious signs of electrical (or mechanical) damage.

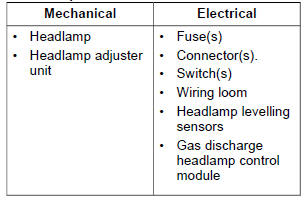

Visual Inspection

3. Resolve any obvious causes or concerns found d#uring the visual inspection before carrying out any further tests.

4. If the cause is not visually evident, verify the symptom and refer to the diagnostic tab within the Ford approved diagnostic tool.
