Ford Kuga

 Service Manual

Wiring Harnesses
Instrument Panel Wiring Harness

General Equipment

Flat-bladed screwdriver

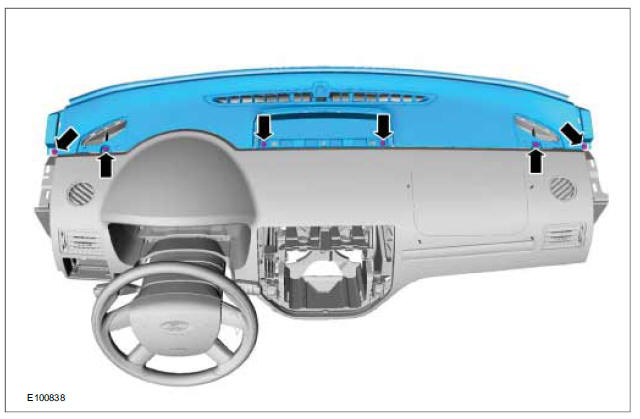

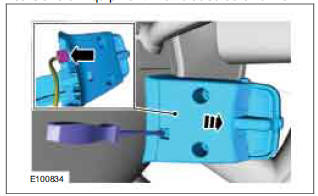

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Cowl Panel Grille (501-02 Front End Body Panels, Removal and Installation).

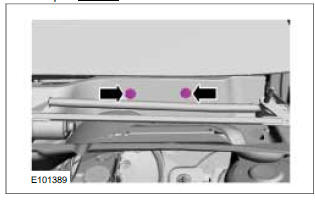

2. Torque: 25 Nm

3. Remove the front doors.

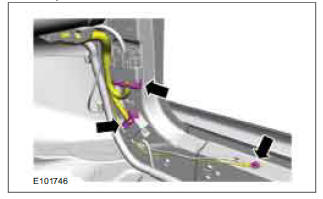

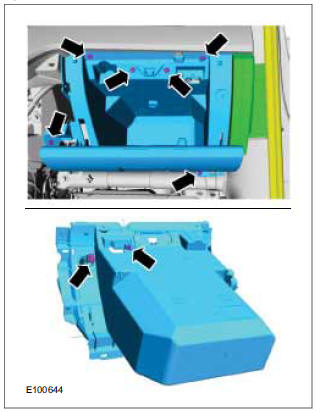

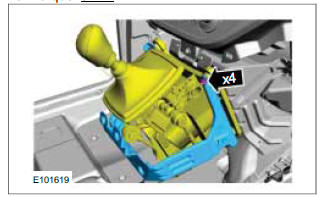

4. Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).

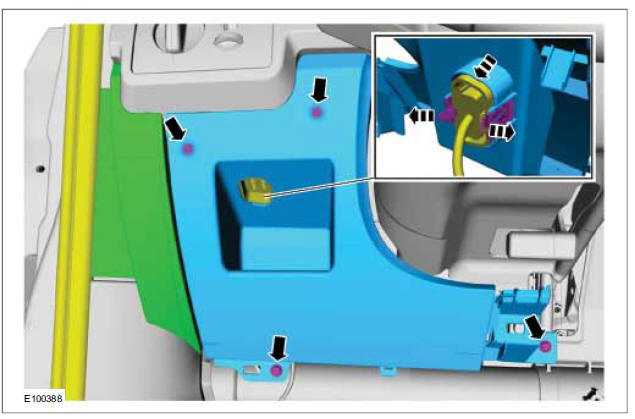

6. Torque: 9 Nm

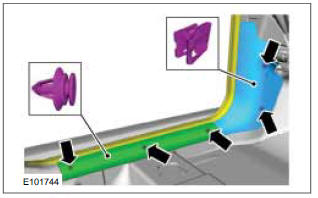

8. On both sides.

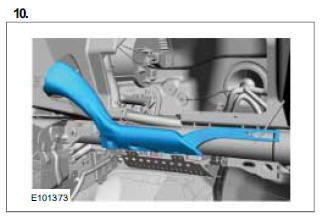

Refer to: A-PillarTrim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

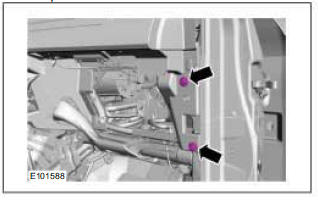

9. On both sides.

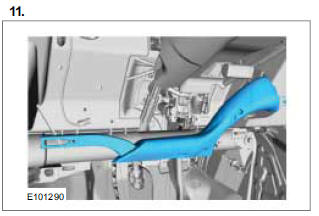

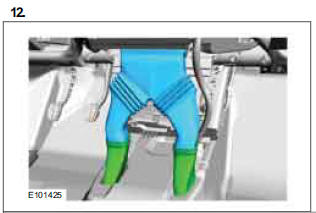

13.Torque: 9 Nm

14.Torque: 9 Nm

15. Refer to: Climate Control Assembly - Vehicles With: Manual Temperature Control (412-01 Climate Control, Removal and Installation). Refer to: Climate Control Assembly - Vehicles With: Automatic Temperature Control (412-01 Climate Control, Removal and Installation).

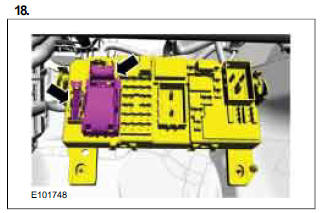

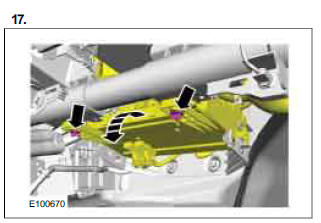

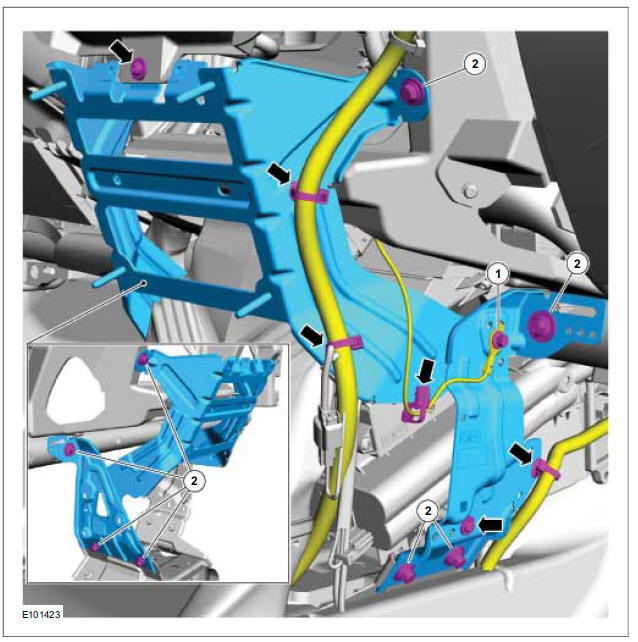

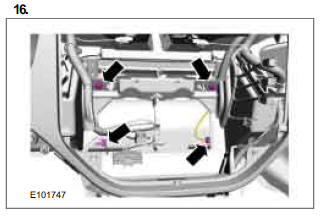

19.1. Torque: 9 Nm 2. Torque: 25 Nm

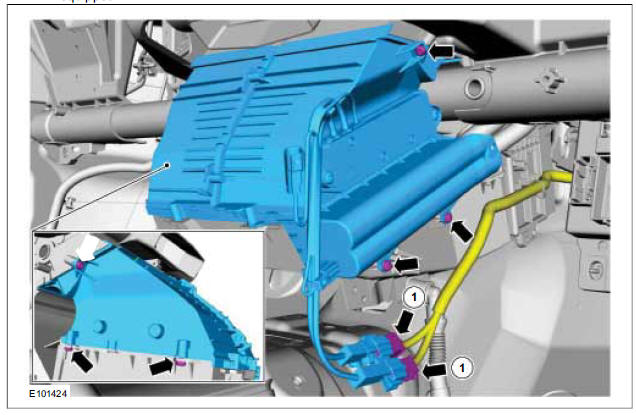

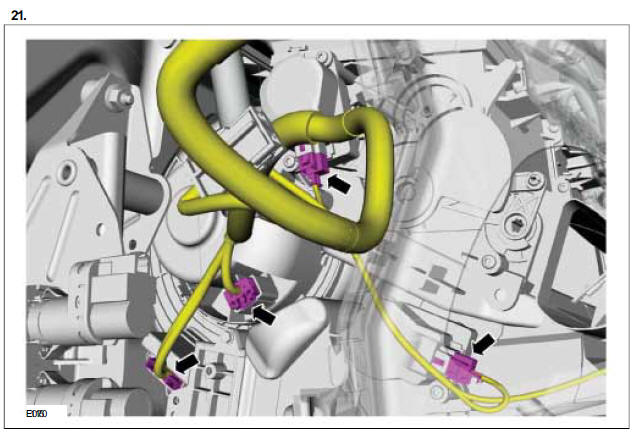

22 1. If equipped.

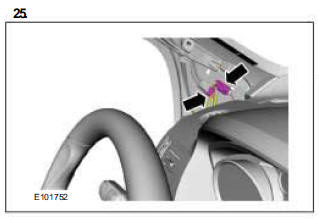

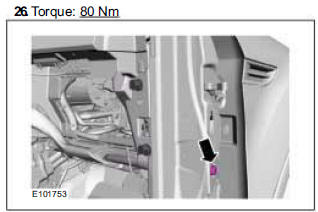

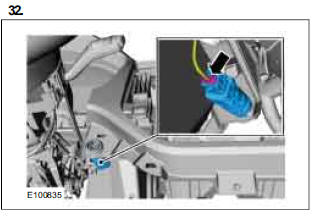

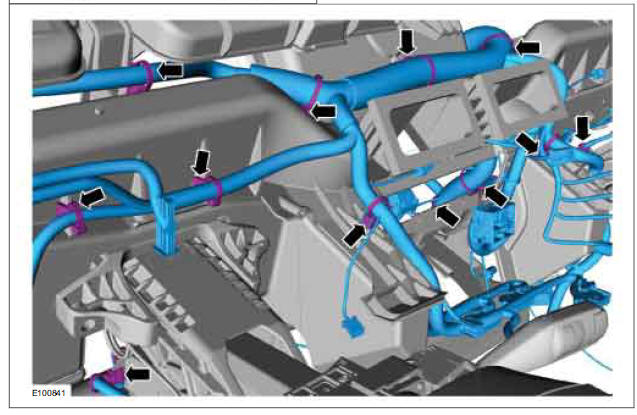

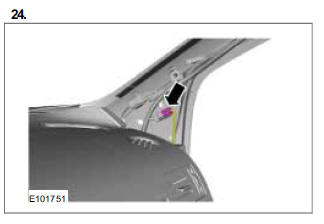

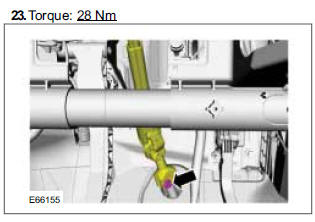

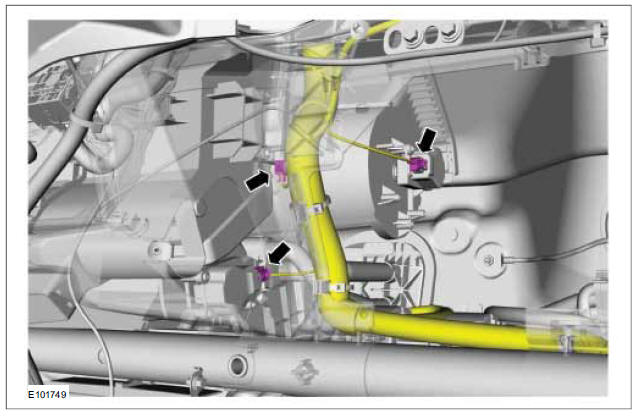

27. NOTE: Note the position of the component before removal.

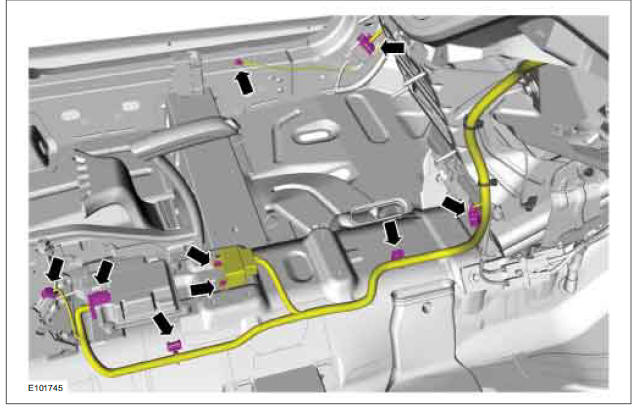

29 Refer to: Instrument Cluster (413-01 Instrument Cluster, Removal and Installation).

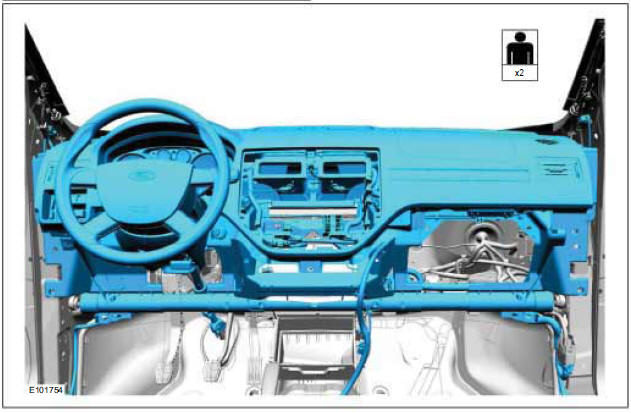

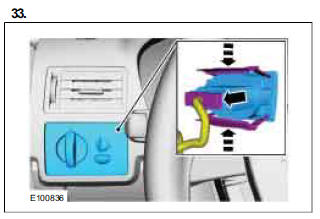

30. General Equipment: Flat-bladed screwdriver

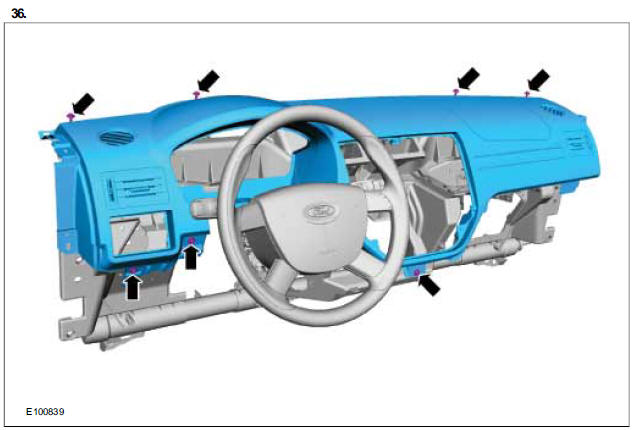

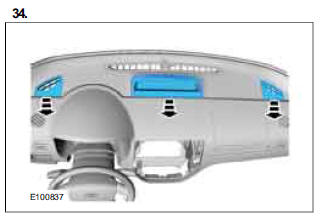

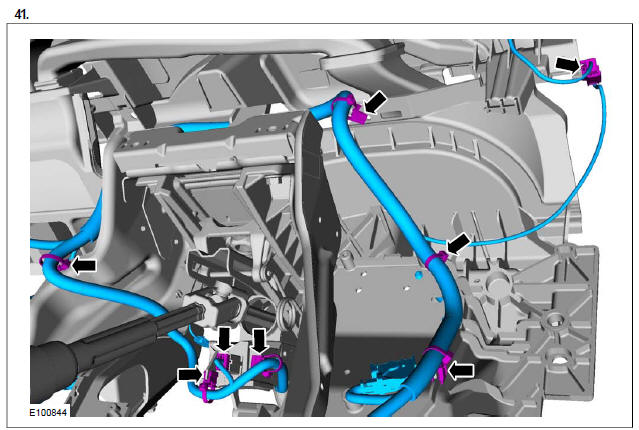

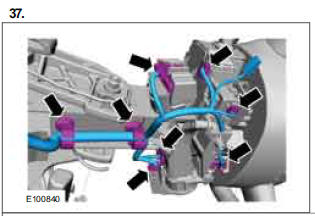

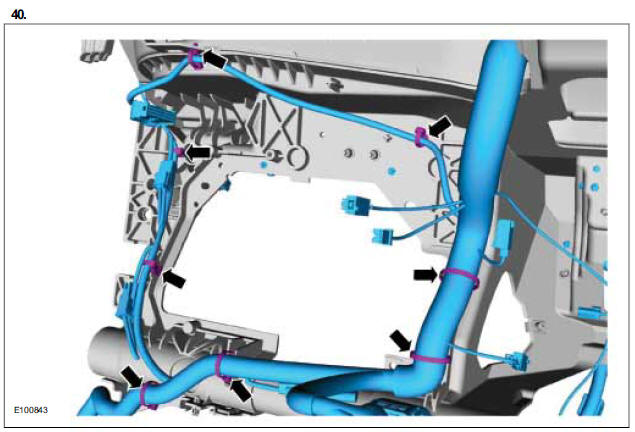

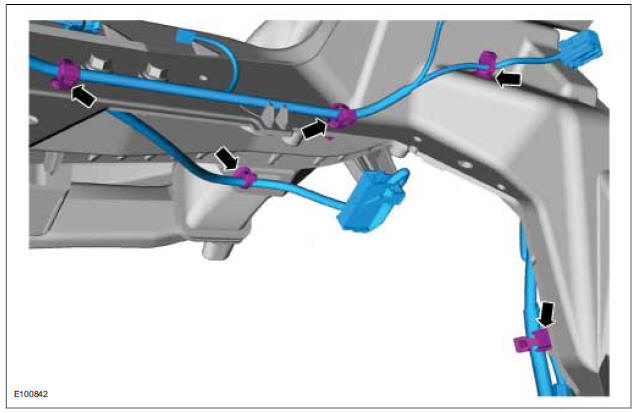

Installation

1. To install, reverse the removal procedure.
