Ford Kuga

 Service Manual

Interior Trim and Ornamentation

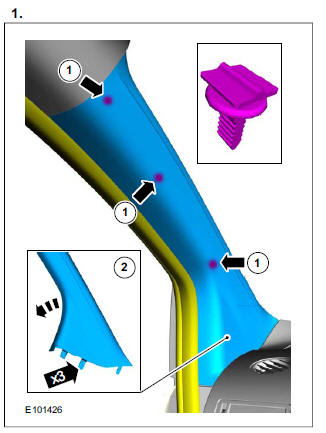

A-Pillar Trim Panel

Removal

Installation

1. To install, reverse the removal procedure.

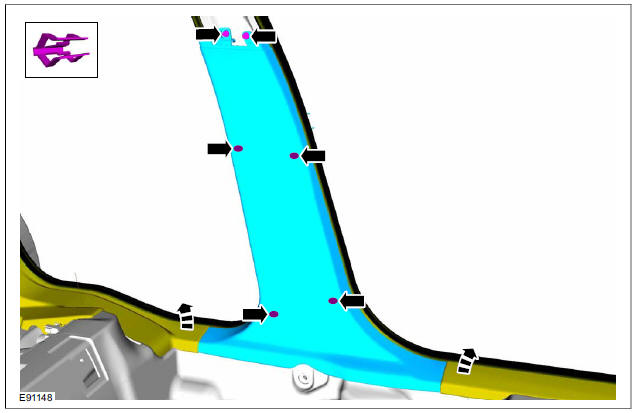

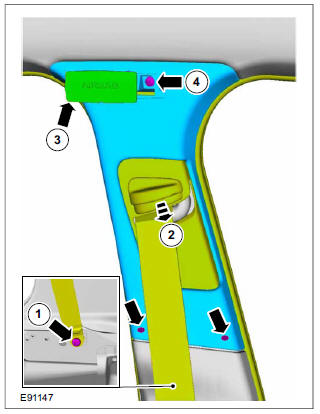

B-Pillar Trim Panel

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. 1. Torque: 38 Nm

Installation

1. To install, reverse the removal procedure.

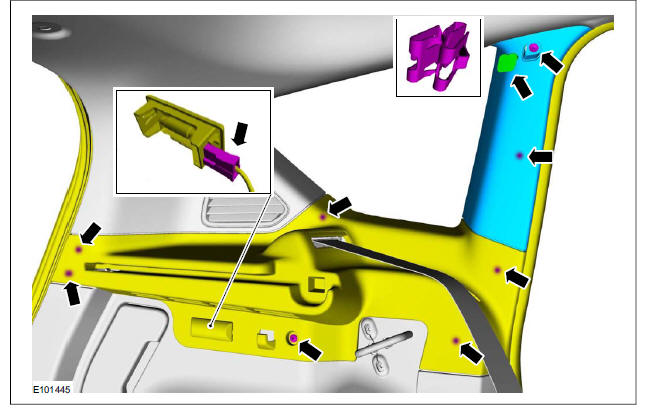

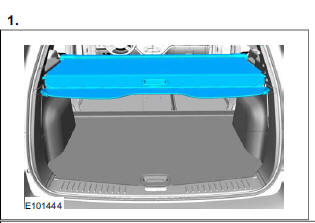

C-Pillar Trim Panel

Removal

2. All.

Installation

1. To install, reverse the removal procedure.

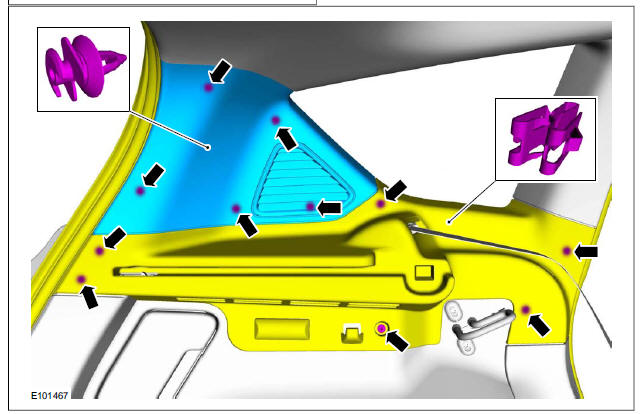

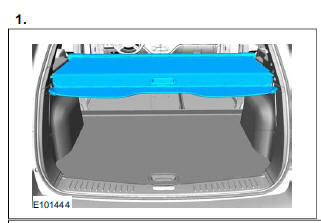

D-Pillar Trim Panel

Removal

Installation

1. To install, reverse the removal procedure.

• Loadspace Trim Panel LH
• Loadspace Trim Panel RH
• Headliner
• Glass Roof Panel Blind
• Front Door Trim Panel
• Rear Door Trim Panel
• Liftgate Upper Trim Panel
• Liftgate Lower Trim Panel
