Front Suspension
Lower Arm (14 706 0; 14 707 0; 14 709 0)

Special Tool(s)

204-605 Separator, Lower Arm Ball Joint
204-609 Protection Cap, Ball Joint Gaiter

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

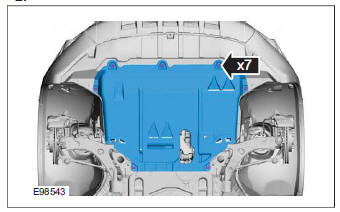

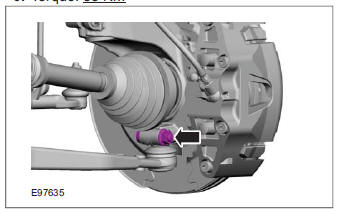

Lower Arm (14 706 0; 14 707 0; 14 709 0)

3. Torque: 83 Nm

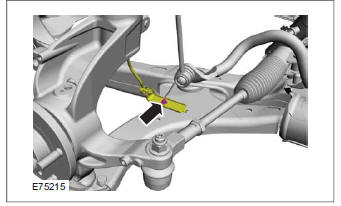

Lower Arm (14 706 0; 14 707 0; 14 709 0)

4. If equipped.

Torque: 8 Nm

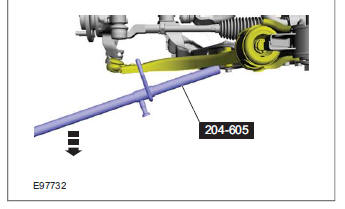

Lower Arm (14 706 0; 14 707 0; 14 709 0)

5. Special Tool(s): 204-605

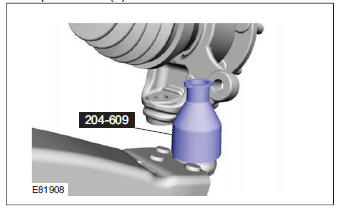

Lower Arm (14 706 0; 14 707 0; 14 709 0)

6. Special Tool(s): 204-609

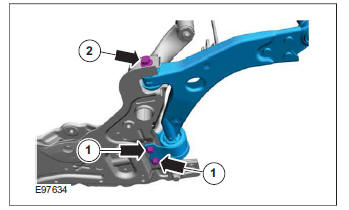

Lower Arm (14 706 0; 14 707 0; 14 709 0)

CAUTION: Make sure that new bolts are installed.

1. Torque:

  • Stage 1: 100 Nm
  • Stage 2: Loosen 90
  • Stage 3: 125 Nm

2. Torque: 175 Nm

Lower Arm (14 706 0; 14 707 0; 14 709 0)

Installation

1. To install, reverse the removal procedure.

2. Check the toe setting and adjust as necessary.

Refer to: Front Toe Adjustment (204-00 Suspension System - General Information, General Procedures).

    More about «Front Suspension»:

    Front Suspension (Overview)

    Front Wheel Bearing (14 411 0; 14 411 4; 14 412 0; 14 414 4; 14 416 4)

    Lower Arm (14 706 0; 14 707 0; 14 709 0)

    Front Stabilizer Bar (14 752 0)

    Wheel Knuckle (14 343 0)

    Front Strut and Spring Assembly (14 781 0; 14 782 0)

    Front Strut and Spring Assembly (14 783 4)

    Ford Kuga Service Manual / Front Suspension / Lower Arm (14 706 0; 14 707 0; 14 709 0)
