Rear Door Trim Panel

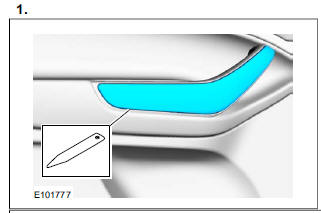

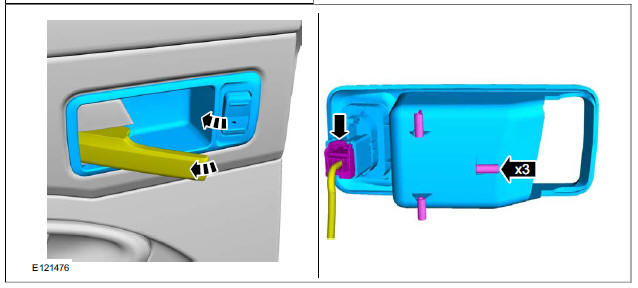

Removal

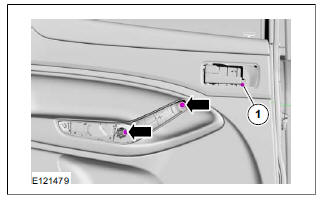

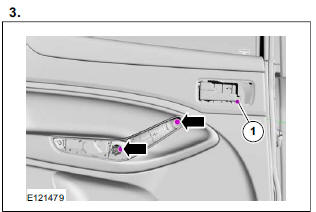

3. 1. Loosen: 1 turn(s)

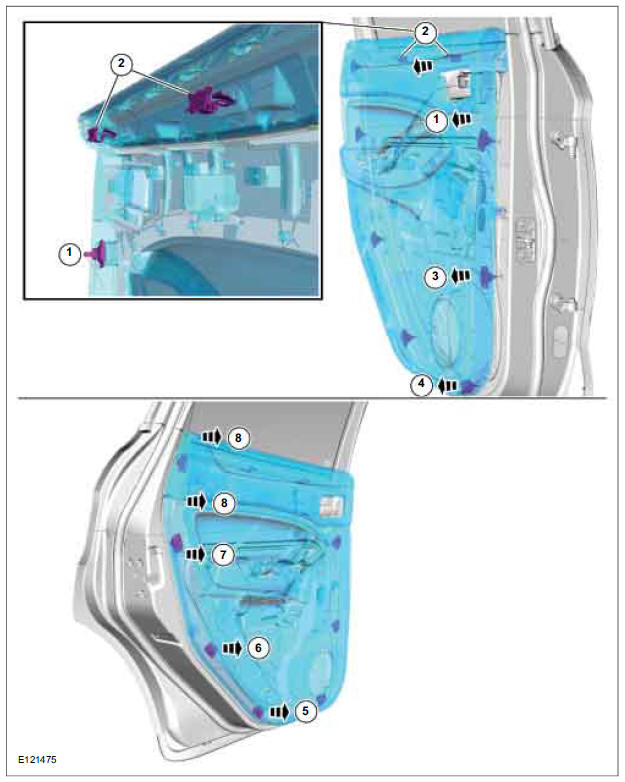

4. CAUTIONS:
Only use moderate force.
Take extra care not to damage the clips.

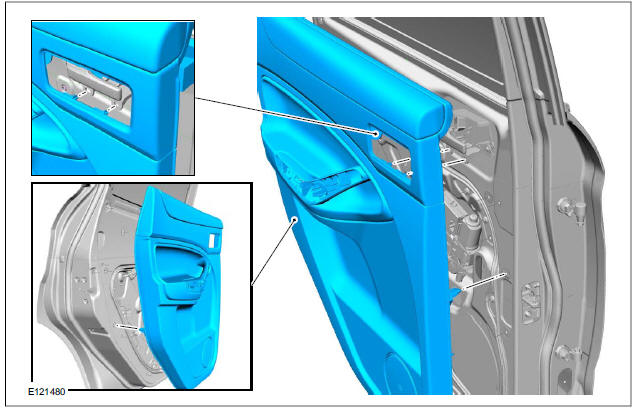

Installation
1. CAUTION: Make sure that the component is correctly located on the locating dowels.

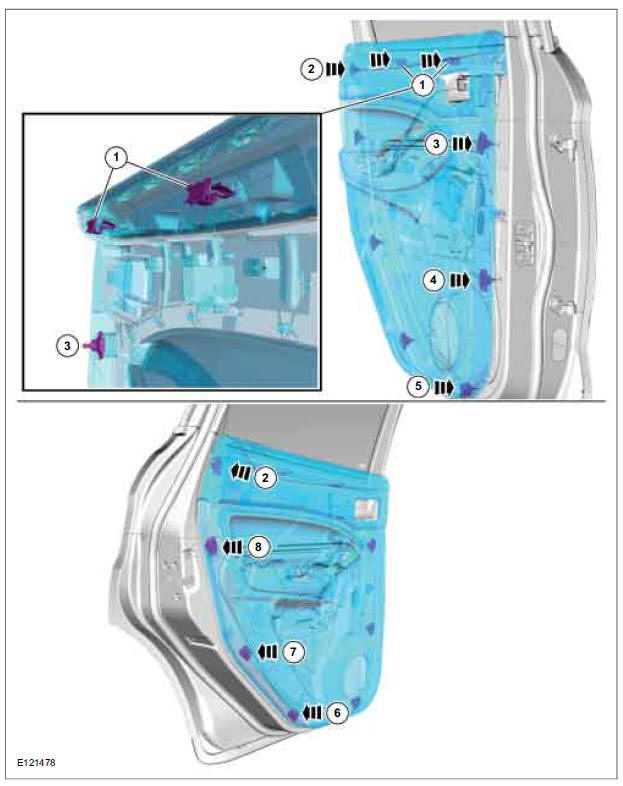

2 CAUTIONS
Make sure that the clips are correctly located.
