Ford Kuga
Service Manual
Rear Suspension
Rear Lower Arm(15 705 0)

General Equipment

Transmission Jack

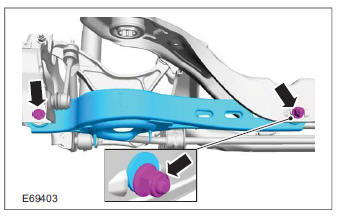

Removal

1. Refer to: Spring (204-02 Rear Suspension, Removal and Installation).

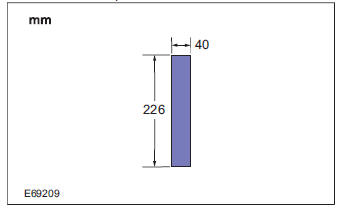

2. Fabricate a spacer.

Rear Lower Arm(15 705 0)

Installation

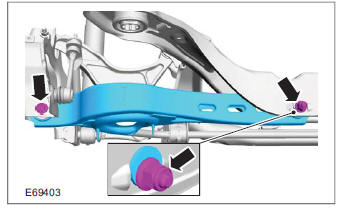

1. NOTE: Only tighten the nuts finger tight at this stage.

Rear Lower Arm(15 705 0)

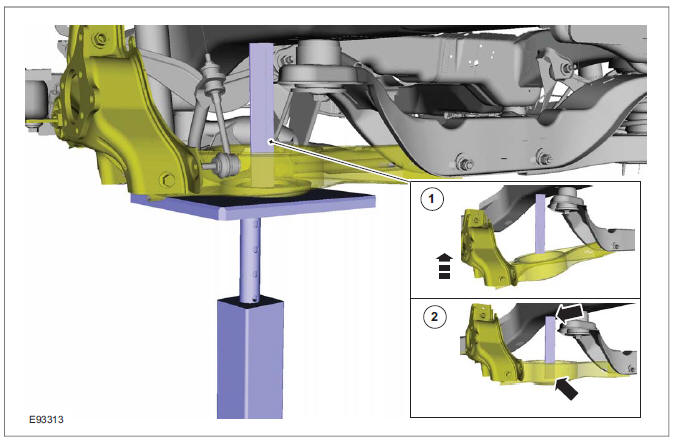

2. General Equipment: Transmission Jack

Rear Lower Arm(15 705 0)

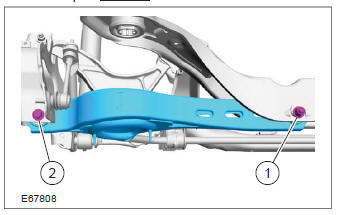

3. 1. Torque: 18 Nm

2. Torque: 115 Nm

Rear Lower Arm(15 705 0)

4. Remove the spacer.

5. Install the spring.

Refer to: Spring (204-02 Rear Suspension, Removal and Installation).

6. Refer to: Rear Toe Adjustment (204-00 Suspension System - General Information, General Procedures).
