Ford Kuga Service ManualWipers and Washers
Rear Window Wiper Motor
Ford Kuga
Service Manual
Rear Window Wiper Motor
Removal
NOTE: Removal steps in this procedure may contain installation details.
1. Refer to: Liftgate Upper Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

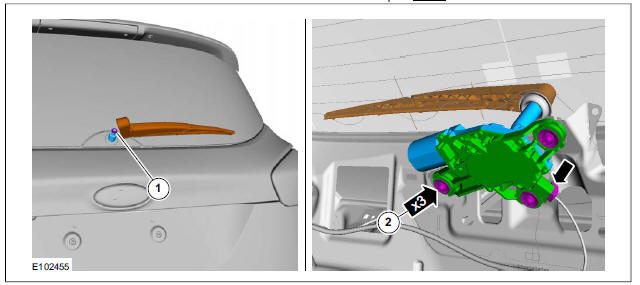

2. 1. Torque: 15 Nm
2. Torque: 8 Nm
Installation
1. To assemble, reverse the disassembly procedure.
