Removing a Headlamp

1. Make sure the lighting control is in the off position and open the hood.

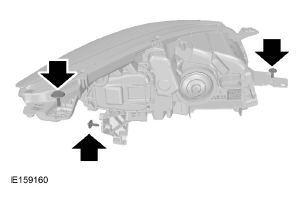

2. Remove the three screws from the headlamp assembly.

3. Carefully pull the headlamp assembly as far as possible toward the front of your vehicle to disengage it from the lower fixing point.

4. Carefully lift the outer side of the headlamp and remove it.

5. Disconnect the electrical connector.
