Ford Kuga Service ManualPower Steering » Power Steering (System Operation and Component Description)
System Diagram
Ford Kuga
Service Manual

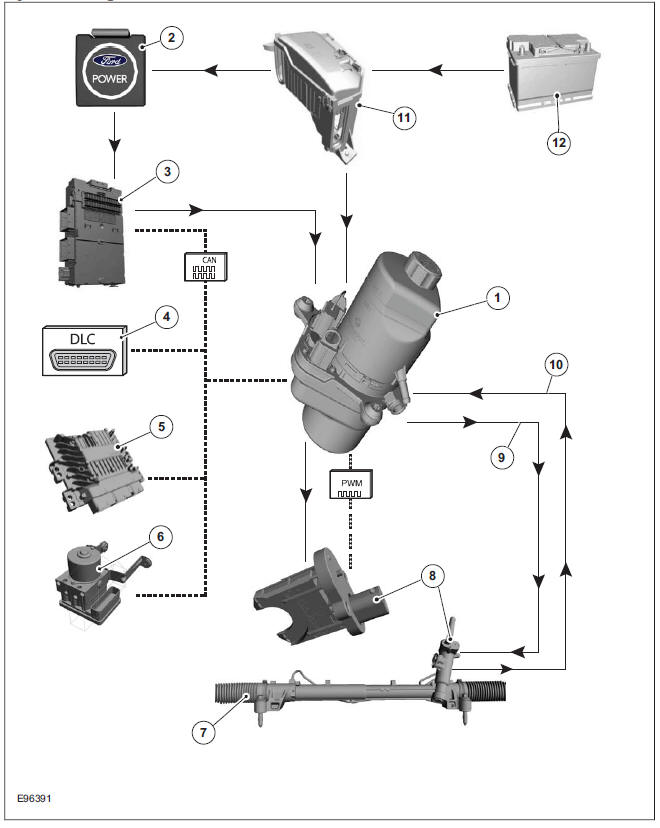

System Diagram
| Item | Description |
| 1 | Electro-hydraulic power steering pump with integrated power steering module Refer to Component Description: Electro-hydraulic power steering pump |
| 2 | Ignition switch |
| 3 | Generic electronic module (GEM) |
| 4 | Data link connector (DLC) |
| 5 | Powertrain Control Module (PCM) |
| 6 | ABS module or ESP module |
| 7 | Steering gear |
| 8 | Integrated steering angle sensor - vehicles built up to 09/2009 Refer to Component Description: (page 10) |
| 9 | High pressure pipe |
| 10 | Fluid Return Line |
| 11 | Battery junction box (BJB) |
| 12 | Battery |
