Steering Linkage
Tie Rod End

Special Tool(s)

211-020 Separator, Ball Joint

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

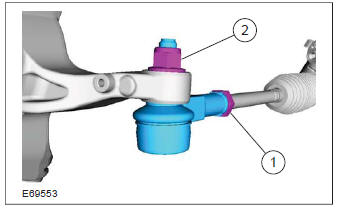

2. CAUTION: Make sure that the ball joint ball does not rotate.

1. Torque: 69 Nm

2. Torque: 48 Nm

Tie Rod End

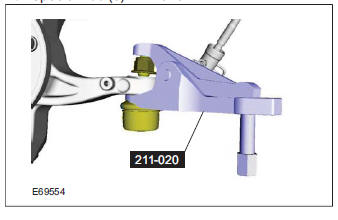

3. Special Tool(s): 211-020

Tie Rod End

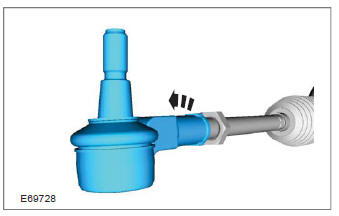

4. NOTE: Make sure that the tie rod end is installed with the same number of turns as when removed.

Tie Rod End

Installation

1. To install, reverse the removal procedure.

2. Refer to: Front Toe Adjustment (204-00 Suspension System - General Information, General Procedures).
