Ford Kuga

 Service Manual

Automatic Transmission/Transaxle
Transmission

Removal

Special Tool(s) / General Equipment

	303-290-01 Adapter for 303-290A
	303-290-03A Adapter for 303-290A
	303-290-05A Adapter for 303-290A
	303-290A Support Bar, Engine
	303-290A-14 Adapter for 303-290A

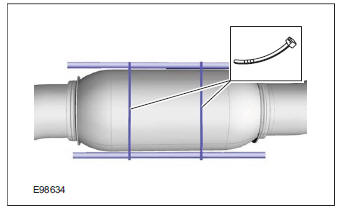

Cable Ties

Transmission Jack

Wooden Block

1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

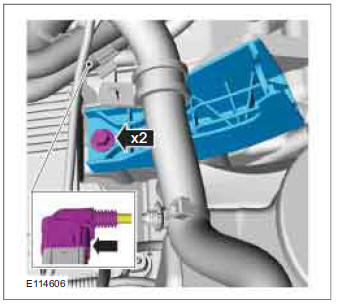

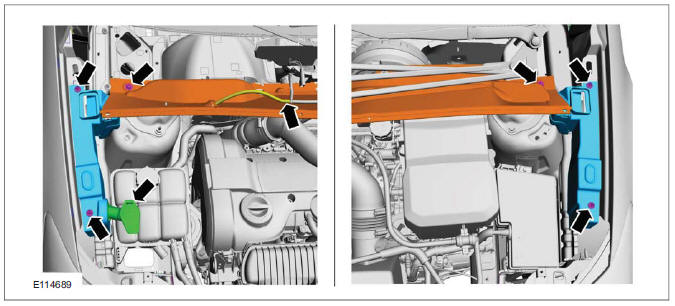

2. Refer to: Cowl Panel Grille (501-02 Front End Body Panels, Removal and Installation).

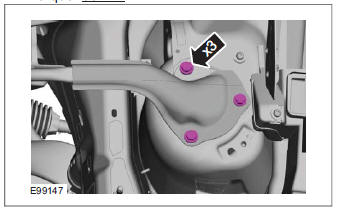

4. On both sides.

Loosen: 3 turn(s)

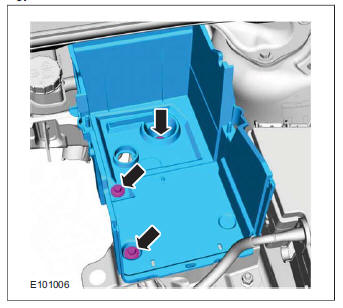

5. Refer to: Battery (414-01 Battery, Mounting and Cables, Removal and Installation).

7. Refer to: Air Cleaner (303-12 Intake Air Distribution and Filtering - 2.5L Duratec (147kW/200PS) - VI5, Removal and Installation).

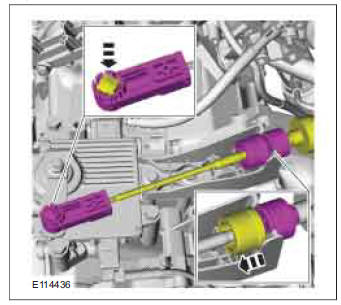

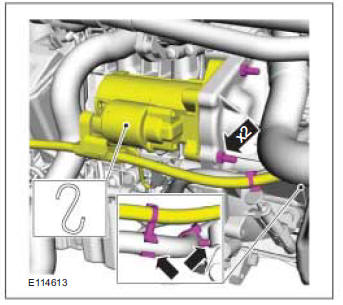

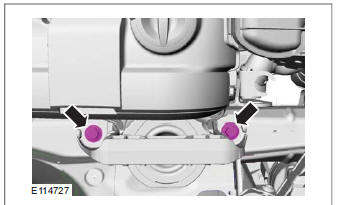

8. NOTE: Only tighten the bolts finger tight at this stage.

19. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation).

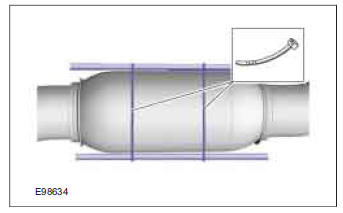

21. Install the following items: 1. General Equipment: Cable Ties

25. Refer to: Front Halfshaft LH (205-04 Front Drive Halfshafts, Removal and Installation).

Refer to: Front Halfshaft RH - LHD 4WD/RHD 4WD (205-04 Front Drive Halfshafts, Removal and Installation).

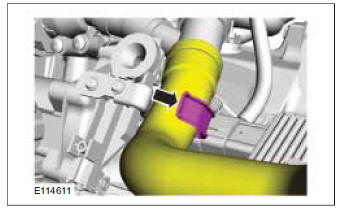

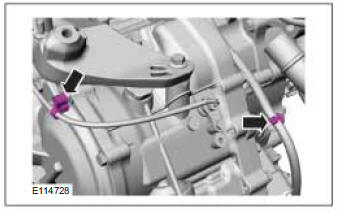

26. NOTE: Note the position of the component before removal.

30. Lower the vehicle.

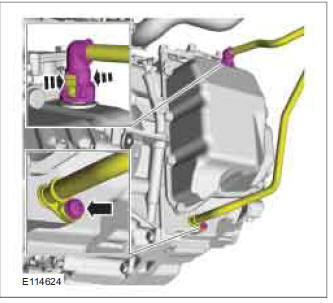

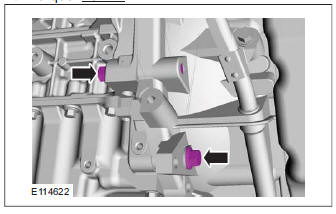

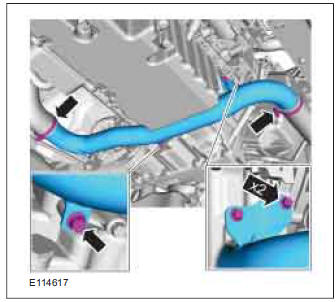

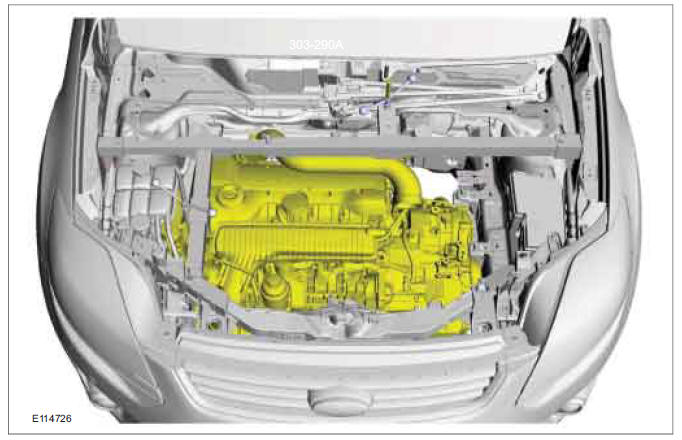

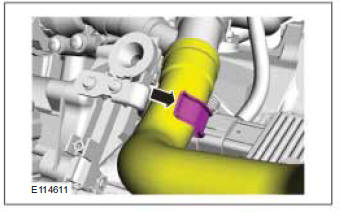

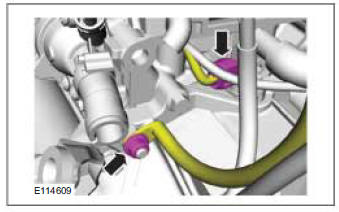

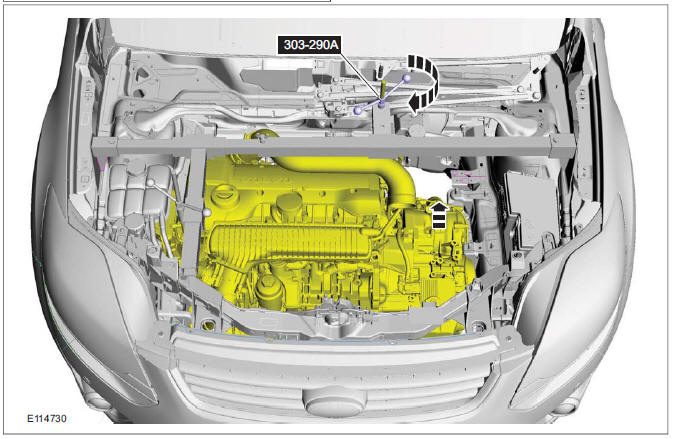

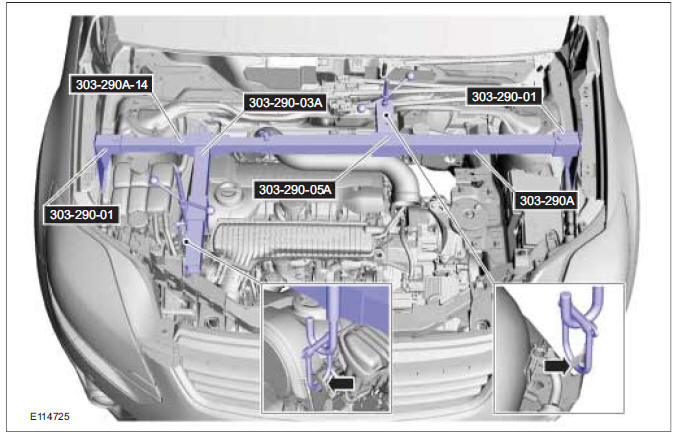

31. Install the Special Tool(s): 303-290-01, 303-290-03A, 303-290-05A, 303-290A, 303-290A-14

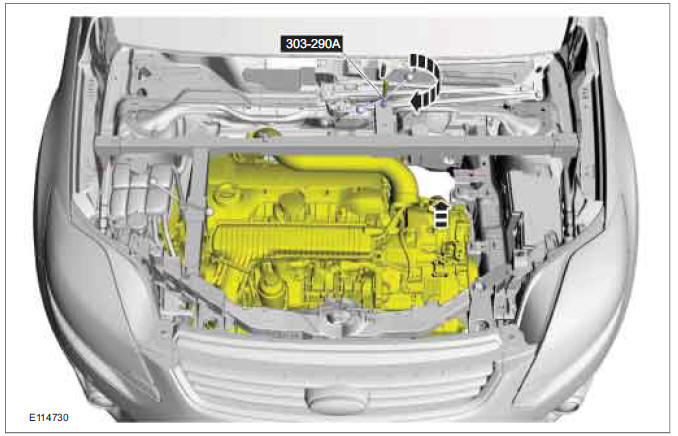

34. Special Tool(s): 303-290A

35. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation).

CAUTION: Make sure that all openings are sealed.

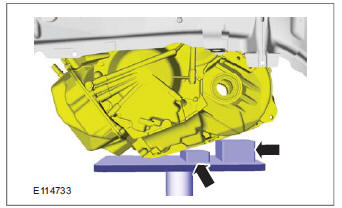

39. Install the following items: 1. General Equipment: Wooden Block General Equipment: Transmission Jack

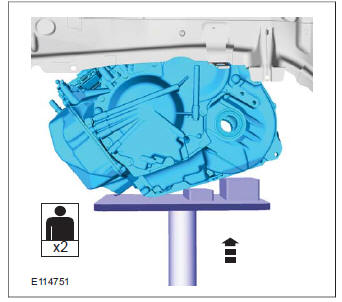

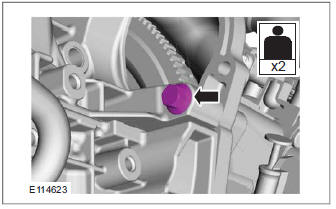

WARNING: This step requires the aid of another technician.

General Equipment: Transmission Jack

INSTALLATION

Transmission

Installation

Special Tool(s) / General Equipment

	303-290-01 Adapter for 303-290A
	303-290-03A303-290A Support Bar, Engine Adapter for 303-290A
	303-290-05A Adapter for 303-290A
	303-290A Support Bar, Engine
	303-290A-14 Adapter for 303-290A

Cable Ties

Round-Ended Steel Rule

Transmission Jack

Wooden Block

Materials

Name	Specification
Grease K-HT	ESD-M1C220-A / A88SX1C220AA
Grease KS-PS	SA-M1C9107-A / YS5JM1C9107- AA

1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

2. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation).

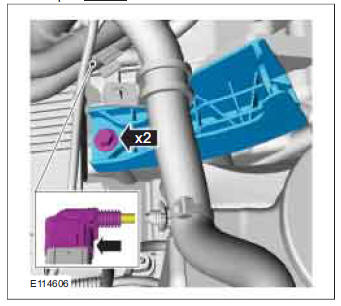

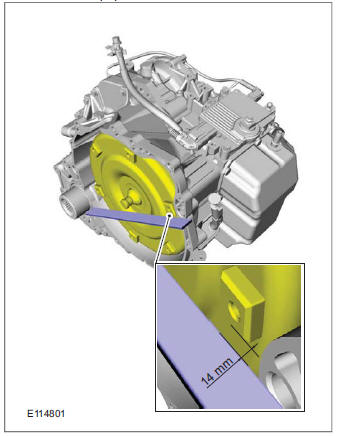

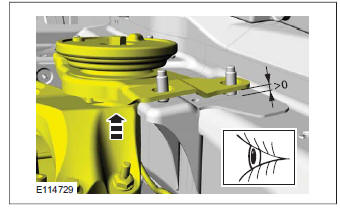

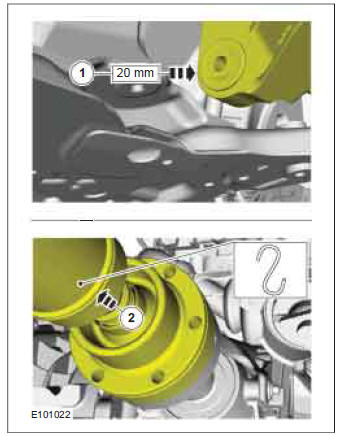

3. General Equipment: Round-Ended Steel Rule

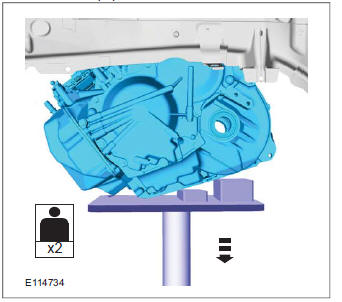

WARNING: This step requires the aid of another technician.

CAUTIONS:

Make sure that the locating dowels remain installed.

Make sure that the torque converter remains in the transmission.

General Equipment: Transmission Jack

5. Perform this and the following operation simultaneously.

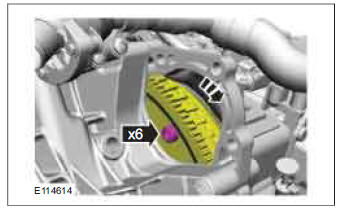

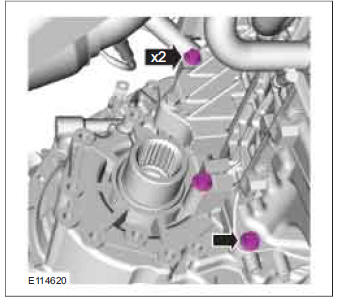

Torque: 48 Nm

6. Torque: 48 Nm

7. Remove the following items: 1. General Equipment: Wooden Block General Equipment: Transmission Jack

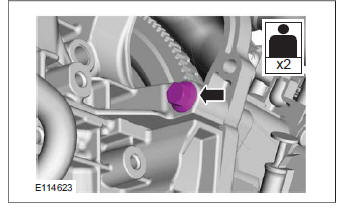

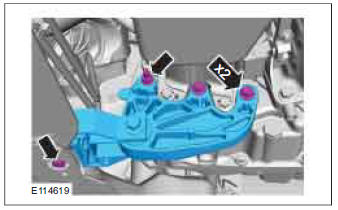

8. Torque: 48 Nm

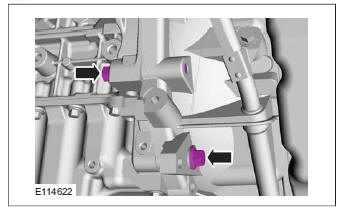

9. Torque: 48 Nm

10.Torque: 6 Nm

11. Lower the vehicle.

12. Special Tool(s): 303-290A

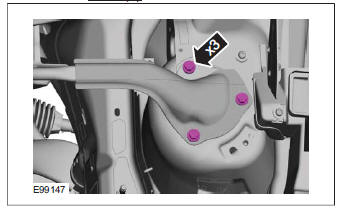

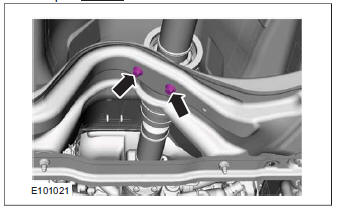

13.Torque: 80 Nm

14. Special Tool(s): 303-290A

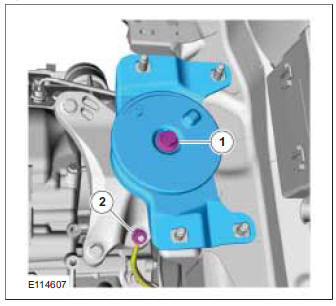

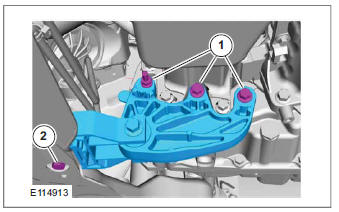

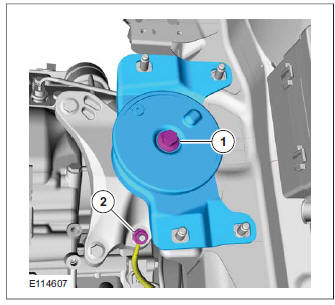

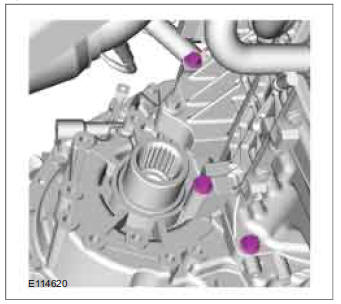

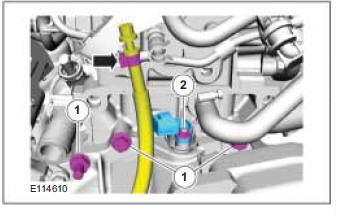

16. 1. Torque: 148 Nm

2. Torque: 10 Nm

17.Remove the Special Tool(s): 303-290-01, 303-290-03A, 303-290-05A, 303-290A, 303-290A-14

18. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation).

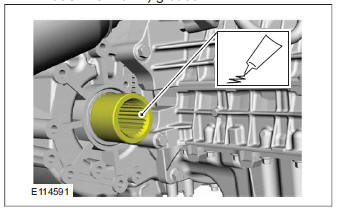

19. Material: Grease K-HT (ESD-M1C220-A / A88SX1C220AA) grease

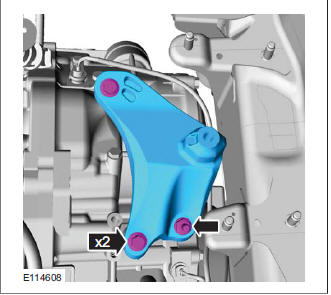

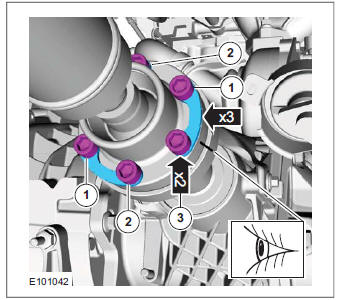

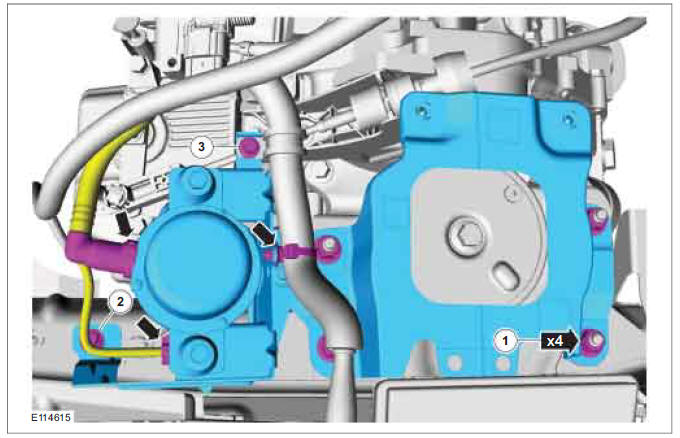

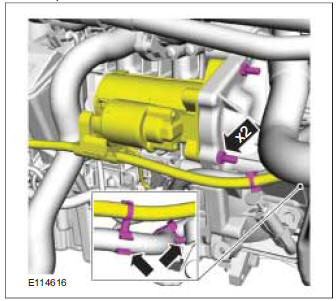

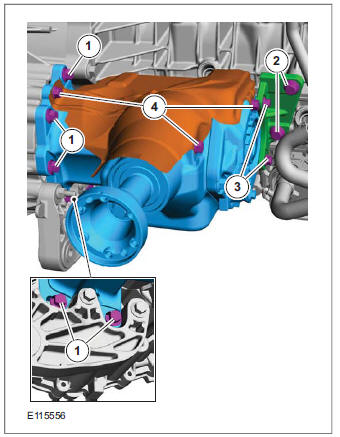

20. 1. Torque: 60 Nm

2. Torque: 60 Nm

3. Torque: 25 Nm

4. Torque: 9 Nm

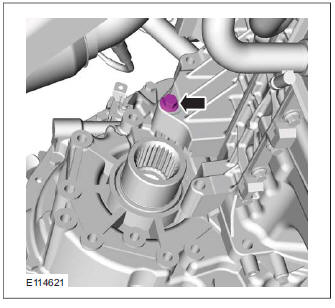

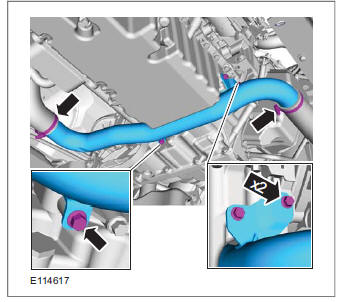

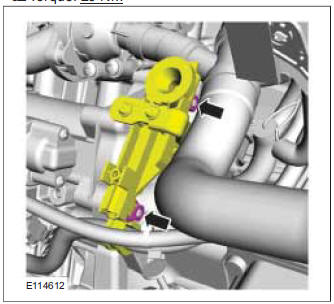

22.Torque: 25 Nm

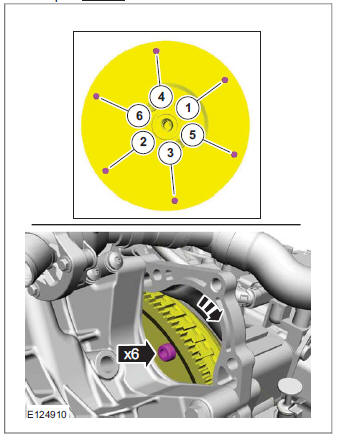

CAUTION: Make sure that the installation marks are aligned.

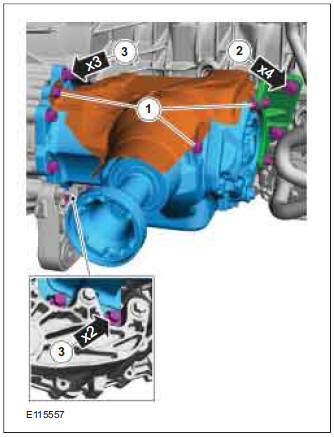

Torque: 35 Nm

2. Torque: 35 Nm

3. Torque: 35 Nm

24. Refer to: Front Halfshaft LH (205-04 Front Drive Halfshafts, Removal and Installation).

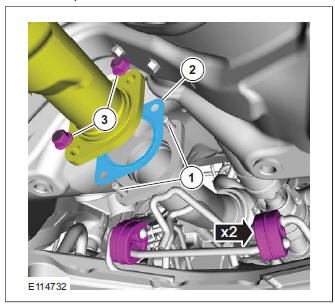

25. 1. Torque: 48 Nm

2. Torque: 80 Nm

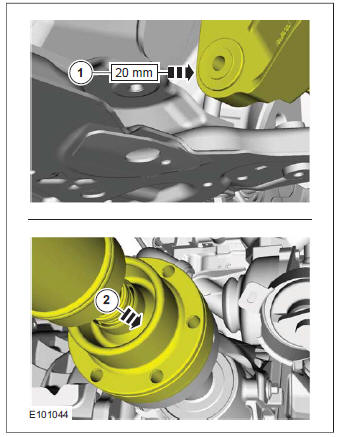

26. Material: Grease KS-PS (SA-M1C9107-A / YS5J-M1C9107-AA) grease 1.

2. NOTE: Make sure that a new component is installed.

3. Torque: 48 Nm

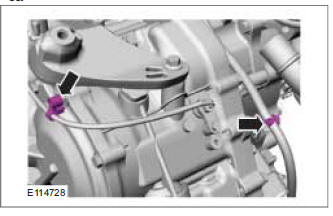

27.Remove the following items: 1. General Equipment: Cable Ties

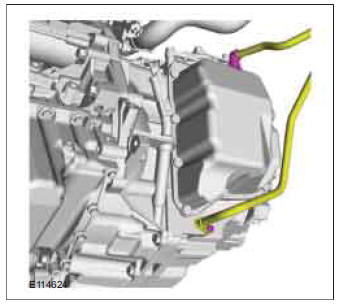

28.Torque: 10 Nm

29. Lower the vehicle.

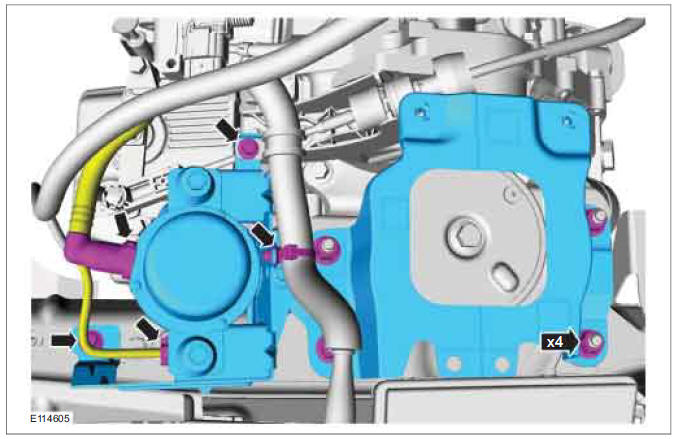

30.NOTE: Install all the bolts finger tight before final tightening.

Torque: 60 Nm

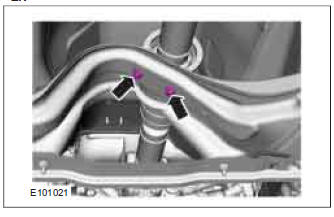

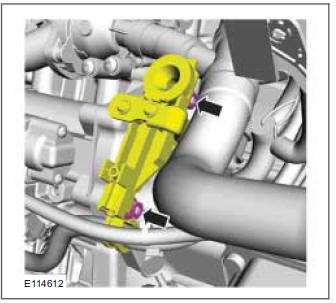

31.Torque: 40 Nm

32.Torque: 25 Nm

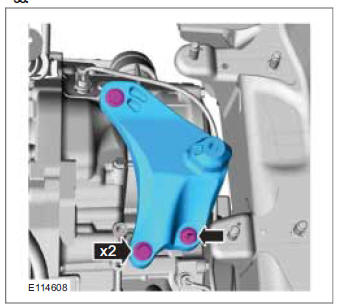

34. 1. Torque: 48 Nm

2. Torque: 9 Nm

35.Torque: 25 Nm

37.Torque: 25 Nm

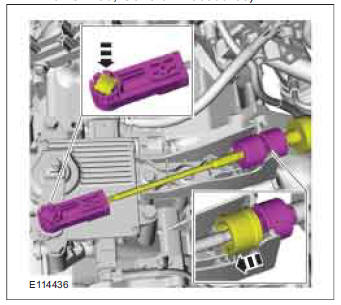

38. Refer to: Selector Lever Cable Adjustment - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD (307-05 Automatic Transmission/Transaxle External Controls - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450, General Procedures).

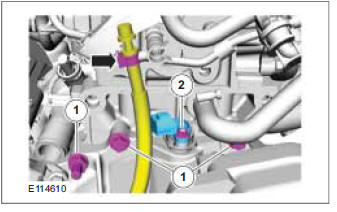

39.1. Torque:48 Nm

2. Torque:25 Nm

103. Torque:  Nm

40.Torque: 10 Nm

41. Refer to: Battery (414-01 Battery, Mounting and Cables, Removal and Installation).

42.On both sides.

Torque: 35 Nm

43. Refer to: Air Cleaner (303-12 Intake Air Distribution and Filtering - 2.5L Duratec (147kW/200PS) - VI5, Removal and Installation).

45. Refer to: Cowl Panel Grille (501-02 Front End Body Panels, Removal and Installation).

Refer to: Transmission Fluid Level Check (307-01 Automatic Transmission/Transaxle - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD, General Procedures).
