Ford Kuga Service ManualRear End Sheet Metal Repairs
Water Drain Panel Reinforcement
Ford Kuga
Service Manual
Water Drain Panel Reinforcement
Removal
Replacement Parts:
- Water Drain Panel Reinforcement
Necessary Removal and Installation Work:
- Water Drain Panel
Refer to: Water Drain Panel (501-30 Rear End Sheet Metal Repairs, Removal and Installation).
- Back Panel Panel and Reinforcement
Refer to: Back Panel and Reinforcement (501-30 Rear End Sheet Metal Repairs, Removal and Installation).
- Reposition the carpeting and the wiring harness away from the working area.
Water Drain Panel Reinforcemnet

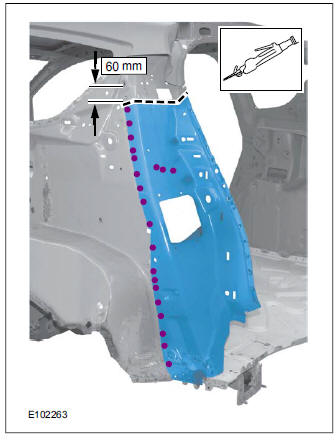

- Mark cutline and cut.
- Mill out the spot welds.
Installation
Water Drain Panel Reinforcemnet
- Resistance spot weld.
- Continuous MIG weld seam.
