Ford Kuga

 Service Manual

Rear Suspension
Wheel Bearing and Wheel Hub

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

2. Refer to: Rear Wheel Speed Sensor (206-09 Anti-Lock Control - Stability Assist, Removal and Installation).

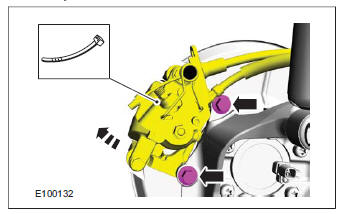

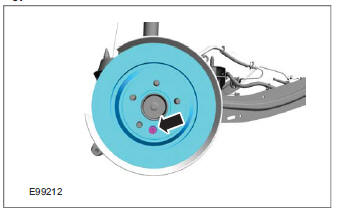

WARNING: Make sure that no load is placed on the brake hose.

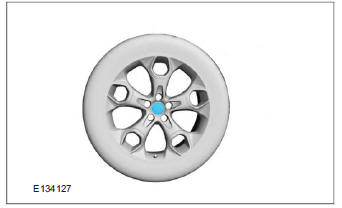

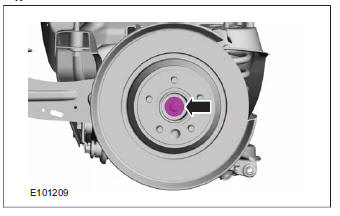

4x4

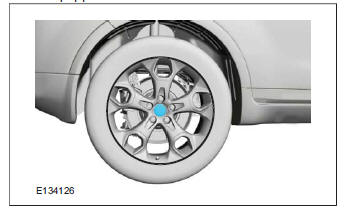

5. If equipped.

All vehicles

Installation

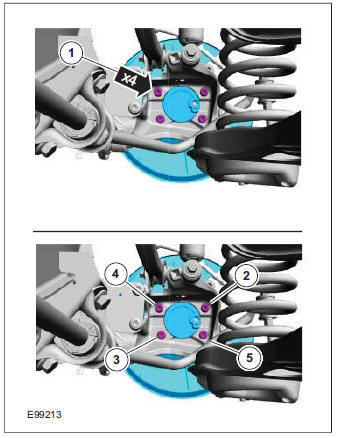

1. Torque: 110 Nm

4x4

3. NOTE: Only tighten the bolt finger tight at this stage.

All vehicles

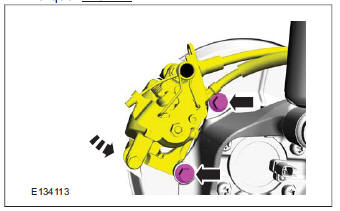

WARNING: Make sure that no load is placed on the brake hose.

Torque: 110 Nm

5. Refer to: Rear Wheel Speed Sensor (206-09 Anti-Lock Control - Stability Assist, Removal and Installation).

6. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

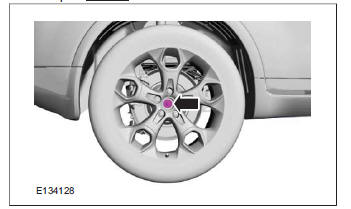

4x4

7. Torque: 50 Nm

8. If equipped.
