Ford Kuga
 Service Manual
Front Suspension
Wheel Knuckle (14 343 0)

Special Tool(s)

204-052 Lever, Wheel Knuckle
204-602 Installer, Halfshaft
204-605 Separator, Lower Arm Ball Joint
204-609 Protection Cap, Ball Joint Gaiter
211-020 Separator, Ball Joint

Removal

NOTE: Removal steps in this procedure may contain installation details.

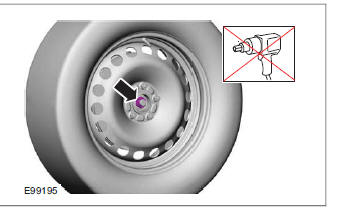

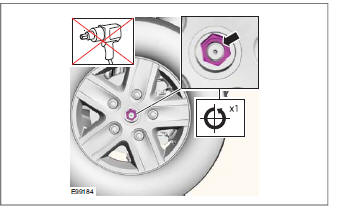

Wheel Knuckle (14 343 0)

2. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

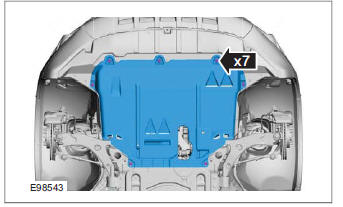

Wheel Knuckle (14 343 0)

Wheel Knuckle (14 343 0)

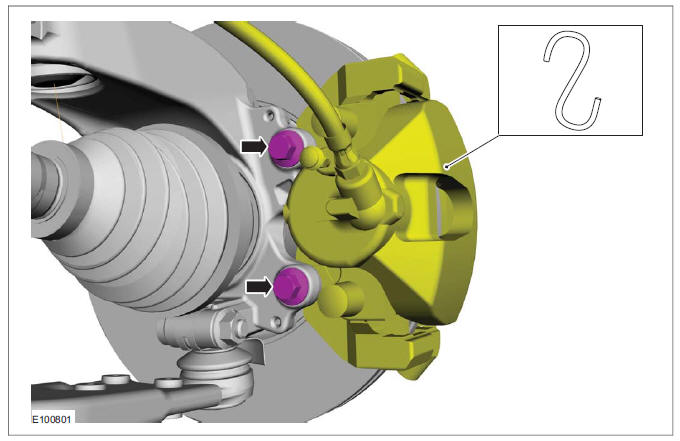

WARNING: Make sure that no load is placed on the brake hose.

Torque: 120 Nm

Wheel Knuckle (14 343 0)

6. Refer to: Front Wheel Speed Sensor (206-09 Anti-Lock Control - Stability Assist, Removal and Installation).

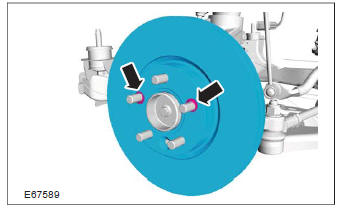

Wheel Knuckle (14 343 0)

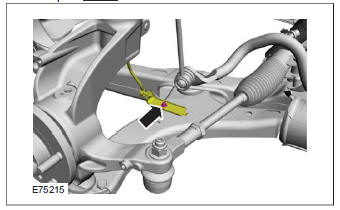

8. If equipped.

Torque: 9 Nm

Wheel Knuckle (14 343 0)

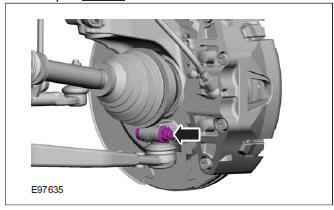

9. Torque: 83 Nm

Wheel Knuckle (14 343 0)

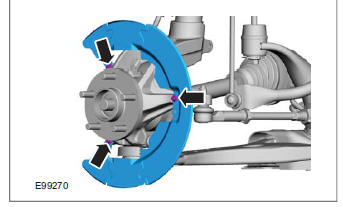

10. If equipped.

Torque: 8 Nm

Wheel Knuckle (14 343 0)

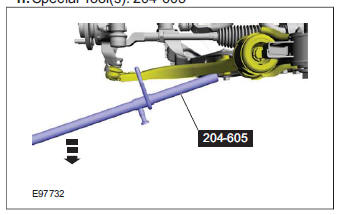

11. Special Tool(s): 204-605

Wheel Knuckle (14 343 0)

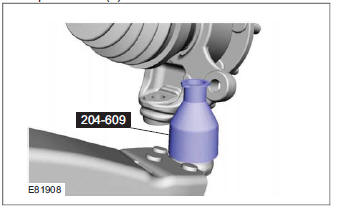

12. Special Tool(s): 204-609

Wheel Knuckle (14 343 0)

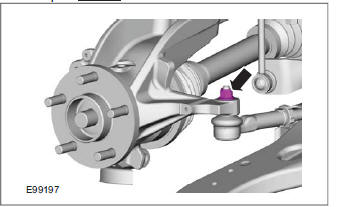

CAUTION: Make sure that the ball joint ball does not rotate.

Torque: 48 Nm

Wheel Knuckle (14 343 0)

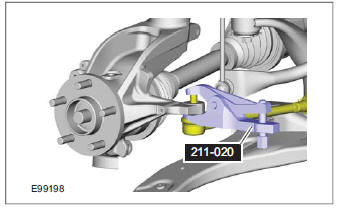

14. Install the Special Tool(s): 211-020

Wheel Knuckle (14 343 0)

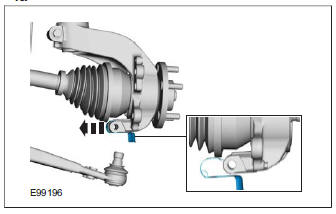

15.Remove the Special Tool(s): 211-020

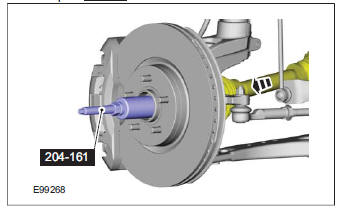

Wheel Knuckle (14 343 0)

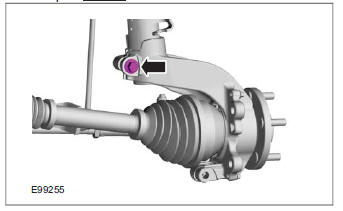

17.Torque: 90 Nm

Wheel Knuckle (14 343 0)

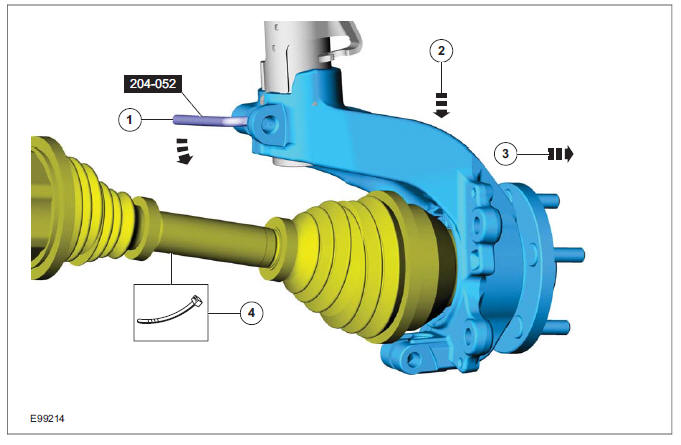

18. Special Tool(s): 204-052

Wheel Knuckle (14 343 0)

19. Refer to: Wheel Hub (204-01 Front Suspension, Removal and Installation).

Installation

1. To install, reverse the removal procedure.

2. Install the Special Tool(s): 204-602 Torque: 45 Nm

Wheel Knuckle (14 343 0)

3. Remove the Special Tool(s): 204-602

4. Torque: 100 Nm

Wheel Knuckle (14 343 0)

5. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

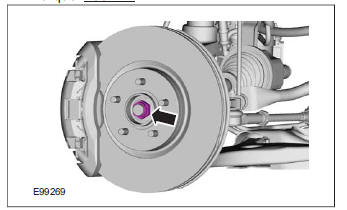

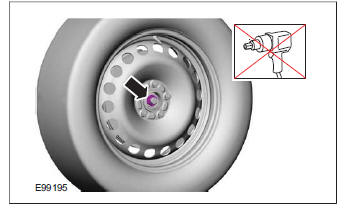

6. Torque: 270 Nm

Wheel Knuckle (14 343 0)
