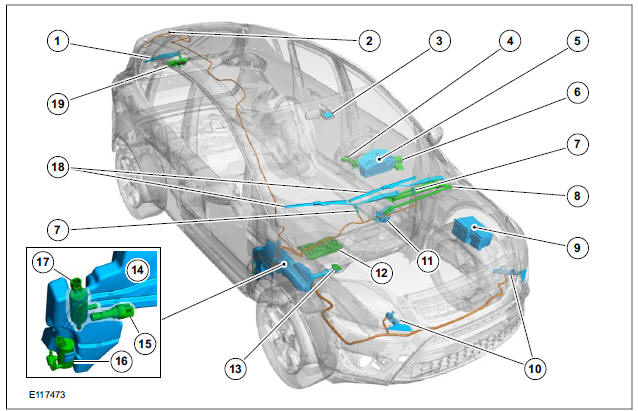

Wipers and Washers (Component Location)
| Item | Description |
| 1 | Rear windshield wiper |
| 2 | Rear window washer nozzle |
| 3 | Combined rain sensor/light sensor |
| 4 | Window wash/wipe switch, front and rear |
| 5 | Instrument Cluster |
| 6 | Light switch |
| 7 | Front window washer nozzle |
| 8 | Wiper linkage assembly |
| 9 | Fuse box - engine compartment |
| 10 | Headlamp washer nozzle |
| 11 | Front wiper motor |
| 12 | GEM (generic electronic module) |
| 13 | Windshield washer reservoir cap |
| 14 | Windshield washer reservoir |
| 15 | Sensor - window washer system fluid level |
| 16 | Window washer pump |
| 17 | Headlamp washer pump |
| 18 | Front wiper |
| 19 | Rear wiper motor |
