Automatic Climate Control

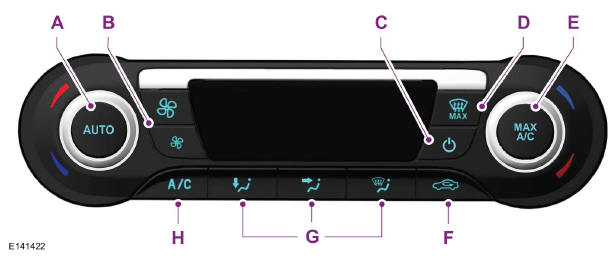

Automatic Climate Control

A. Fan speed: Controls the volume of air circulated in your vehicle. Press the buttons to select the desired fan speed. The setting is shown in the display.

B.Fan speed: Controls the volume of air circulated in your vehicle. Press the buttons to select the desired fan speed. The setting is shown in the display.

C. On and off button: Press the button to switch the system on and off.

D. MAX Defrost: Press the button to distribute outside air through the windshield air vents. Air conditioning is automatically selected. The fan is set to the highest speed and the temperature to HI. When the air distribution is set in this position you are unable to select recirculated air or manually adjust the temperature control. Press the AUTO button to return to auto mode.

E. MAX A/C: Press the button to distribute maximum air conditioning through the instrument panel air vents. This mode is more economical and efficient than normal air conditioning.

F. Recirculated air: Press the button to switch between outside air and recirculated air. The air currently in the passenger compartment recirculates.

This can reduce the time needed to cool the interior and reduce unwanted odors from entering your vehicle.

G. Defrost: Press the button to distribute air through the windshield air vents. You can also use this setting to defog and clear the windshield of a thin covering of ice.

H. Instrument panel: Press the button to distribute air through the instrument panel air vents.

I. Footwell: Press the button to distribute air through the footwell air vents.

J. Air conditioning: Press the button to switch the air conditioning on or off. Air conditioning cools your vehicle using outside air. To improve air conditioning when starting your vehicle, drive with the windows slightly open for two to three minutes.

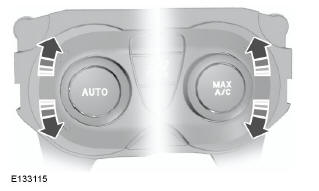

Temperature Control

Temperature Control

You can set the temperature between 60F (15.5C) and 85F (29.5C). In position LO, the system switches to permanent cooling. In position HI, the system switches to permanent heating.

Note: If you select either position LO or HI, the system does not regulate a stable temperature.

Mono Mode

In this mode, the temperature settings for both the driver side and passenger side are linked. If you adjust the setting using the rotary control on the driver side, the system adjusts the temperature to the same setting on the passenger side.

Switching Mono Mode Off

Select a temperature for the passenger side using the rotary control on the passenger side. Mono mode automatically switches off. The temperature on the driver side remains unchanged. You can now adjust the driver side and passenger side temperatures independently. The temperature settings for each side are shown in the display.

Switching Mono Mode Back On

Press and hold the AUTO button. The passenger side temperature is adjusted to the driver side temperature setting.
