Climate Control
Auxiliary Heater

Fuel Operated Parking Heater

WARNING

Do not use the fuel operated parking heater at fuel filling stations or near sources of combustible vapors, dust or in enclosed spaces. This could result in serious personal injury or death.

The system warms the engine and the vehicle interior, it uses fuel from the vehicle fuel tank. The system will only operate when your vehicle is stationary with the engine switched off.

Used correctly the system will:

  • Warm the engine and the vehicle interior.
  • Keep the windows clear of ice in the event of frost and prevent condensation.
  • Avoid cold starts to assist the engine to reach operating temperature sooner.

Following a heating cycle, if you do not start the engine the system will not turn on the next programmed heating cycle.

Following a heating cycle we recommend that you drive your vehicle for at least the same period of time as the heating cycle.

This prevents the vehicle battery from running out of charge.

We recommend you switch the system on for approximately 10 minutes every month to prevent the water pump or heater motor seizing.

The system will only operate if there is a minimum of 7.5 liters (1.6 gallons) of fuel in the vehicle fuel tank and the outside air temperature is below 59F (15C). The system will not operate if the battery charge level is low.

Note:When the system is operating, exhaust fumes will come from under your vehicle. This is normal.

Note: On vehicles with manual climate control, heating the vehicle interior will depend on the heater control settings. See Climate Control

Programming the Fuel Operated Parking Heater

Use the information display controls on the steering wheel. See Information Displays

Note: The time and date on your vehicle's clock must be set correctly. See Clock

Note: You must program the time at least 70 minutes before the time you wish to set.

Note: The programmed time is when you want your vehicle to be warm and ready to drive, not when the heater turns on.

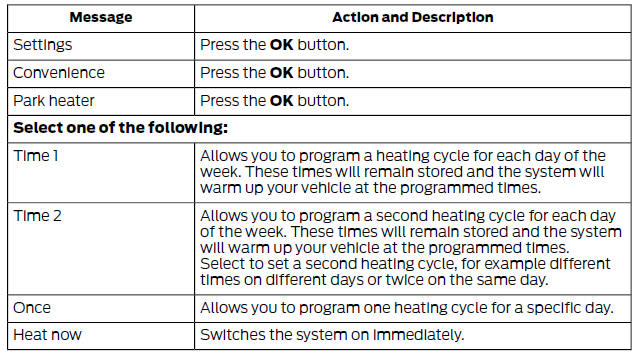

To program the fuel operated parking heater, scroll to

To program the fuel operated parking heater, scroll to

Programming the Time Functions

Set the time you want your vehicle to be warm and ready to drive. Use the information display controls on the steering wheel. See Information Displays

1. Select the desired days you want the system to warm up your vehicle.

Highlight each desired day and press the OK button.

2. Highlight the time at the top of the menu and press the OK button. The hours will flash.

3. Set the hours using the up and down arrow buttons.

4. Press the right arrow button. The minutes will flash. Set the minutes using the up and down arrow buttons.

Press the OK button.

Programming the Once Function

Selecting this function allows you to program one heating cycle for one specific day.

Set the time you want your vehicle to be warm and ready to drive. Use the information display controls on the steering wheel. See Information Displays

1. Highlight the time at the top of the menu and press the OK button. The hours start to flash.

2. Set the hours using the up and down arrow buttons.

3. Press the right arrow button. Set the minutes using the up and down arrow buttons. Press the OK button.

Switching Programmed Functions Off

Use the information display controls on the steering wheel. See Information Displays

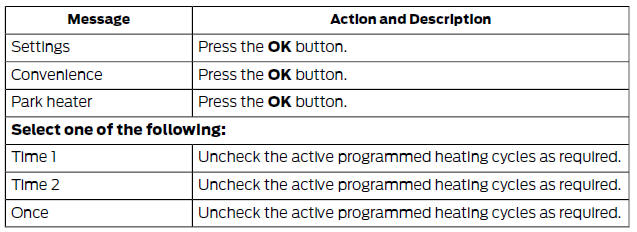

To switch the programmed functions off, scroll to

To switch the programmed functions off, scroll to

Switching the Heat Now Function On

WARNING

Do not use the fuel operated parking heater at fuel filling stations or near sources of combustible vapors, dust or in enclosed spaces. This could result in serious personal injury or death.

Selecting this function allows you to switch the system on immediately.

Use the information display controls on the steering wheel. See Information Displays

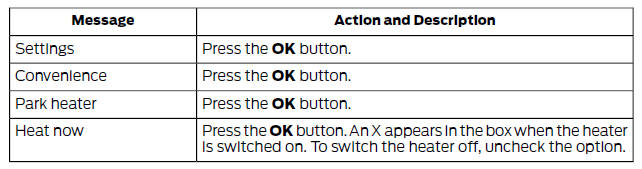

To switch the heat now function on, scroll to

To switch the heat now function on, scroll to

Switching the Heat Now Function On and Off Using the Remote Control

Selecting this function allows you to switch the system on immediately using the remote control.

Note: The vehicle does not need to be unlocked.

1. Press the ON button on the remote control to switch the system on.

2. Press the OFF button on the remote control to switch the system off.

Fuel Operated Heater

WARNING

Do not use the fuel operated parking heater at fuel filling stations or near sources of combustible vapors, dust or in enclosed spaces. This could result in serious personal injury or death.

The heater operates by warming the engine cooling system, it uses fuel from the vehicle fuel tank. The system will only operate when your vehicle is stationary with the engine switched off.

The system will only operate if there is a minimum of 7.5 liters (1.6 gallons) of fuel in the vehicle fuel tank. The system will not operate if the battery charge level is low.

The system automatically turns on and off depending on the engine coolant temperature when the outside air temperature is below 37F (3C), unless you have switched it off.

Note: The default setting is on. Note:When the system is operating, exhaust fumes will come from under your vehicle. This is normal. Note: On vehicles with manual climate control, heating the vehicle interior will depend on the heater control settings. See Climate Control

Use the information display controls on the steering wheel. See Information Displays

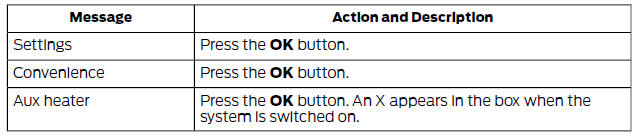

To switch the auxiliary heater on and off, scroll to

To switch the auxiliary heater on and off, scroll to
