 Service Manual
Front Suspension
Front Wheel Bearing (14 411 0; 14 411 4; 14 412 0; 14 414 4; 14 416 4)

Special Tool(s) / General Equipment

204-158 Collet for 205-295
204-348 Remover/Installer, Wheel Hub/Wheel Bearing
204-740 Remover/Installer, Wheel Hub/Bearing
205-071-01 Adapter for 205-071 (Thrust Pad)
205-080 Installer, Differential Bearing
205-255 Installer, Front Wheel Hub Seal
205-295 Remover, Bearing (Main Tool)
Hydraulic Press

Removal

1. Refer to: Wheel Knuckle (204-01 Front Suspension, Removal and Installation).

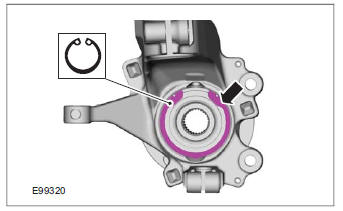

2. NOTE: Note the position of the component before removal.

Front Wheel Bearing (14 411 0; 14 411 4; 14 412 0; 14 414 4;

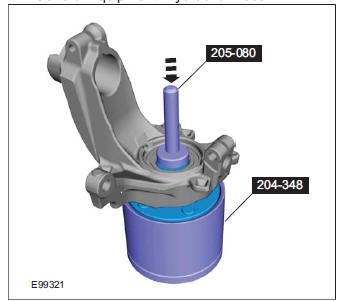

3. Special Tool(s): 205-080, 204-348 General Equipment: Hydraulic Press

Front Wheel Bearing (14 411 0; 14 411 4; 14 412 0; 14 414 4;

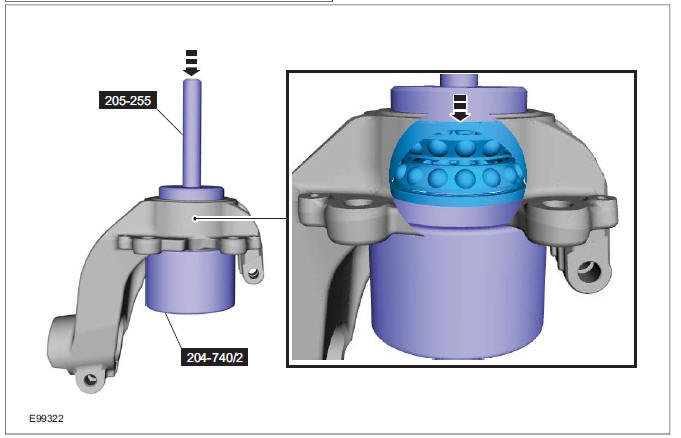

4. Special Tool(s): 205-255, 204-740 General Equipment: Hydraulic Press

Front Wheel Bearing (14 411 0; 14 411 4; 14 412 0; 14 414 4;

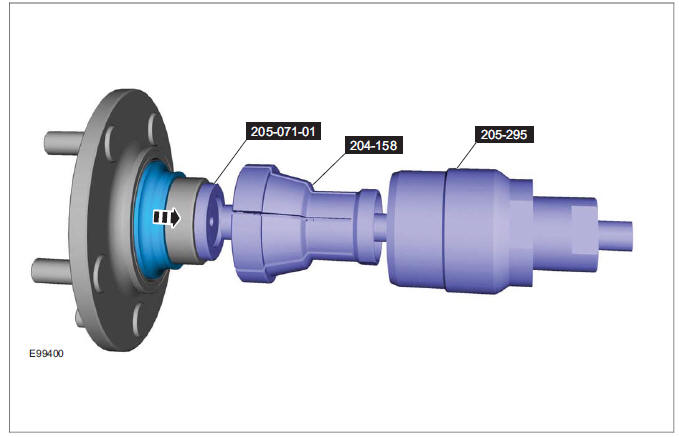

5. Special Tool(s): 205-071-01, 205-295, 204-158

Front Wheel Bearing (14 411 0; 14 411 4; 14 412 0; 14 414 4;

Front Wheel Bearing (14 411 0; 14 411 4; 14 412 0; 14 414 4;

Installation

1. NOTE: Make sure that the sensor ring is correctly located.

Install the wheel bearing with the black colored wheel speed sensor ring facing towards the transmission side.

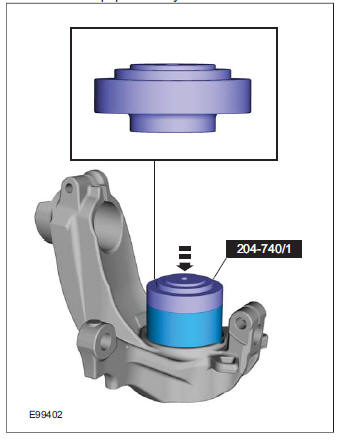

Special Tool(s): 204-740 General Equipment: Hydraulic Press

Front Wheel Bearing (14 411 0; 14 411 4; 14 412 0; 14 414 4;

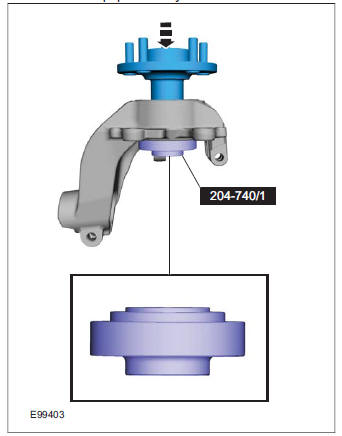

2. Special Tool(s): 204-740 General Equipment: Hydraulic Press

Front Wheel Bearing (14 411 0; 14 411 4; 14 412 0; 14 414 4;

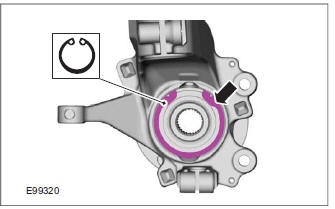

3. NOTE: Make sure that this component is installed to the noted removal position.

Front Wheel Bearing (14 411 0; 14 411 4; 14 412 0; 14 414 4;

4. Refer to: Wheel Knuckle (204-01 Front Suspension, Removal and Installation).
