Glass, Frames and Mechanisms » Glass, Frames and Mechanisms (System Operation and Component Description)
System Diagram

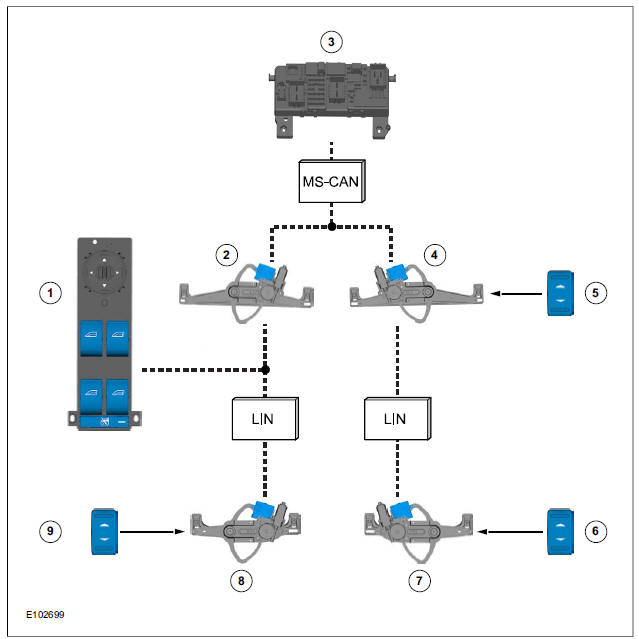

Electrically operated side windows

Electrically operated side windows

Item Description
1 Driver's door window switch
2 Power window with driver's door module
3 GEM (generic electronic module)
4 Power window with passenger door module
5 Passenger front window switch
6 Rear passenger side window switch
7 Power window with passenger side RDM
8 Power window with driver's side RDM
9 Rear driver's side window switch

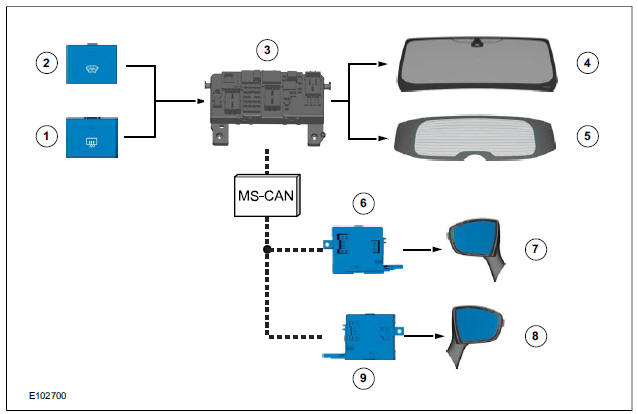

Heated windows

Heated windows

Item Description
1 Heated rear window switch
2 Windshield heater switch
3 GEM
4 Heated windshield
5 Heated rear window
6 Left FDM (front door module)
7 Heated exterior mirror, left
8 Heated exterior mirror, right
9 Right FDM
