Ford Kuga
 Service Manual
Transfer Case
Transfer Case Fluid Level Check

Materials

Name Specification
Rear Axle Oil SAE 75W- 90 8U7J-19G518-BA

Inspection

1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

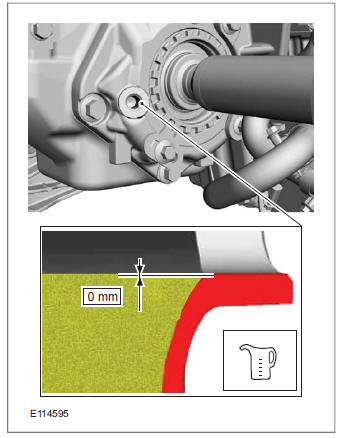

Transfer Case Fluid Level Check

  • Material: Rear Axle Oil SAE 75W-90 (8U7J-19G518-BA) transmission fluid
  • Correct the rear axle oil level if neccessary.
  • 20 ml ~ 1 mm

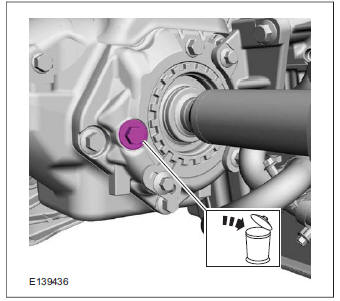

Transfer Case Fluid Level Check

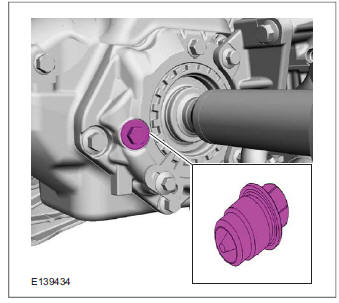

4. NOTE: Make sure that a new component is installed.

Torque: 34 Nm

Transfer Case Fluid Level Check
