Rear Suspension
Wheel Knuckle - LHD 4WD/RHD 4WD

Removal

1. Refer to: Spring (204-02 Rear Suspension, Removal and Installation).

2. Refer to: Wheel Bearing and Wheel Hub (204-02 Rear Suspension, Removal and Installation).

Wheel Knuckle - LHD 4WD/RHD 4WD

Wheel Knuckle - LHD 4WD/RHD 4WD

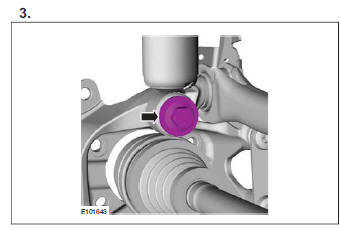

Wheel Knuckle - LHD 4WD/RHD 4WD

Wheel Knuckle - LHD 4WD/RHD 4WD

Installation

1. Fabricate a spacer.

Wheel Knuckle - LHD 4WD/RHD 4WD

2. 1. Torque: 120 Nm 2. NOTE: Only tighten the bolt finger tight at this stage.

Wheel Knuckle - LHD 4WD/RHD 4WD

3. Install the spacer. Make sure that the spacer is in a vertical plane and raise the suspension to the design height setting.

Wheel Knuckle - LHD 4WD/RHD 4WD

4. Torque: 115 Nm

Wheel Knuckle - LHD 4WD/RHD 4WD

5. Torque: 115 Nm

Wheel Knuckle - LHD 4WD/RHD 4WD

Wheel Knuckle - LHD 4WD/RHD 4WD

7. Torque: 115 Nm

Wheel Knuckle - LHD 4WD/RHD 4WD

8. Refer to: Wheel Bearing and Wheel Hub (204-02 Rear Suspension, Removal and Installation).

9. Refer to: Spring (204-02 Rear Suspension, Removal and Installation).
