 Service Manual
Climate Control
Defrost Vent/Register Blend Door Actuator - RHD(34 591 0)

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Cowl Panel Grille (501-02 Front End Body Panels, Removal and Installation).

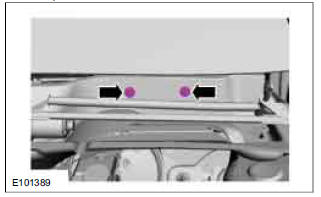

2. Torque: 25 Nm

Defrost Vent/Register Blend Door Actuator - RHD(34 591 0)

3. Refer to: Steering Column (211-04 Steering Column, Removal and Installation).

4. Torque: 25 Nm

Defrost Vent/Register Blend Door Actuator - RHD(34 591 0)

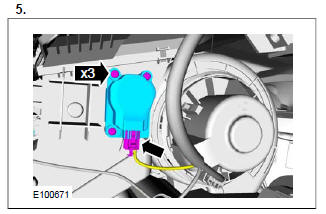

Defrost Vent/Register Blend Door Actuator - RHD(34 591 0)

Installation

1. To install, reverse the removal procedure.
