 Service Manual
Automatic Transmission/Transaxle
Transmission

Removal

Special Tool(s) / General Equipment

303-290-01 Adapter for 303-290A
303-290-03A Adapter for 303-290A
303-290-05A Adapter for 303-290A
303-290A Support Bar, Engine
303-290A-14 Adapter for 303-290A

Cable Ties

Transmission Jack

Wooden Block

1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

2. Refer to: Cowl Panel Grille (501-02 Front End Body Panels, Removal and Installation).

Transmission

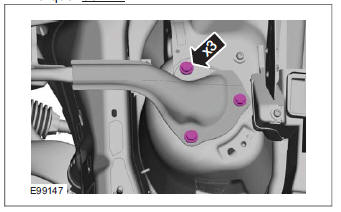

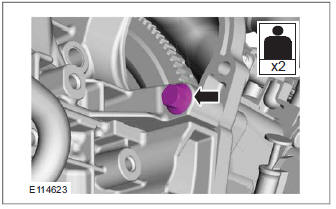

4. On both sides.

Loosen: 3 turn(s)

Transmission

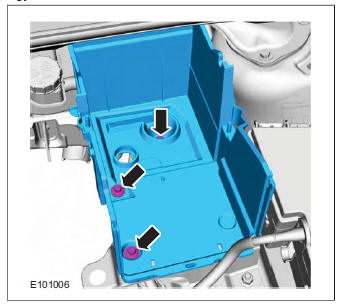

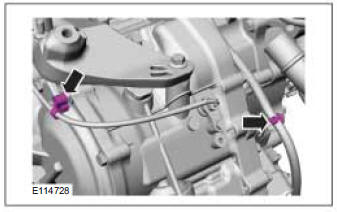

5. Refer to: Battery (414-01 Battery, Mounting and Cables, Removal and Installation).

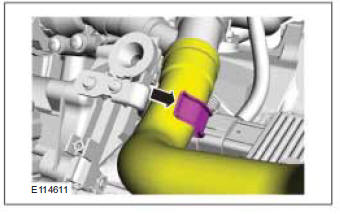

Transmission

7. Refer to: Air Cleaner (303-12 Intake Air Distribution and Filtering - 2.5L Duratec (147kW/200PS) - VI5, Removal and Installation).

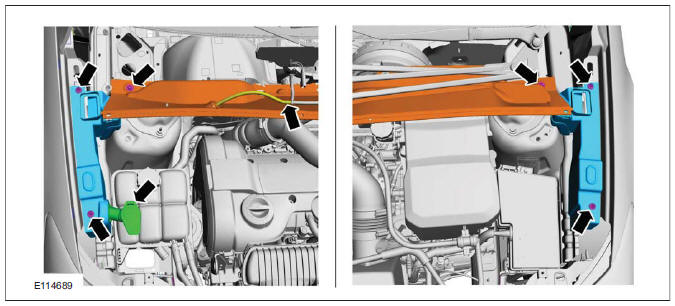

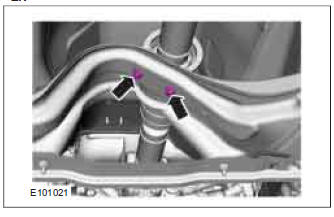

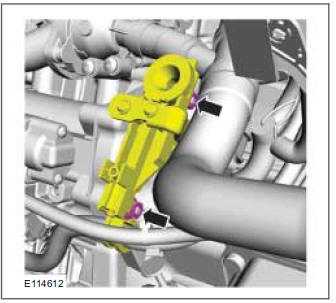

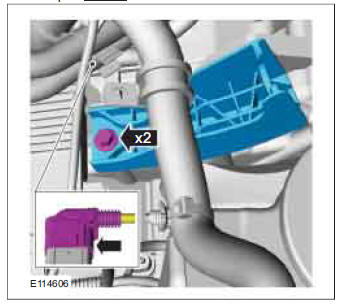

8. NOTE: Only tighten the bolts finger tight at this stage.

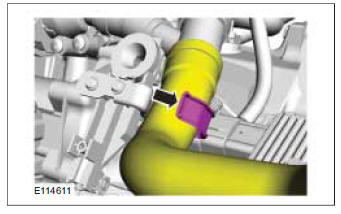

Transmission

Transmission

Transmission

Transmission

Transmission

Transmission

Transmission

Transmission

Transmission

Transmission

Transmission

19. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation).

Transmission

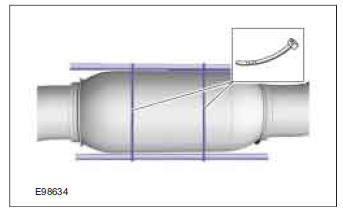

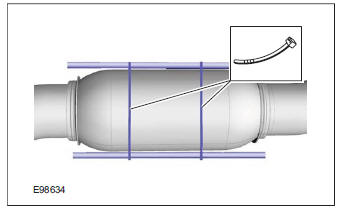

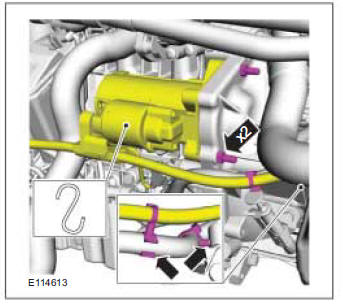

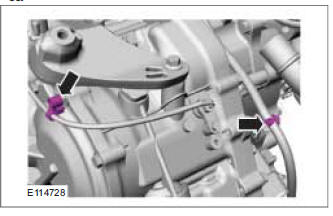

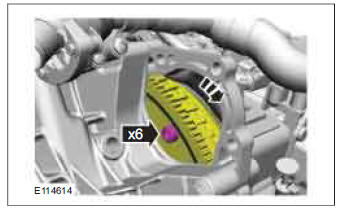

21. Install the following items: 1. General Equipment: Cable Ties

Transmission

Transmission

Transmission

Transmission

25. Refer to: Front Halfshaft LH (205-04 Front Drive Halfshafts, Removal and Installation).

Refer to: Front Halfshaft RH - LHD 4WD/RHD 4WD (205-04 Front Drive Halfshafts, Removal and Installation).

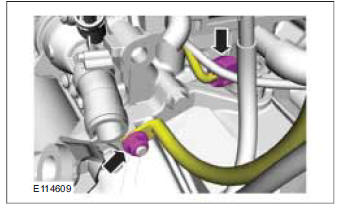

26. NOTE: Note the position of the component before removal.

Transmission

Transmission

Transmission

Transmission

30. Lower the vehicle.

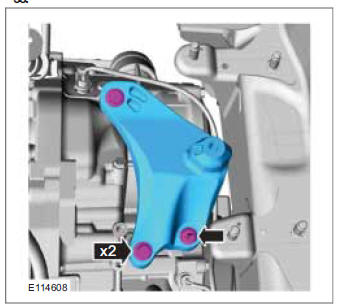

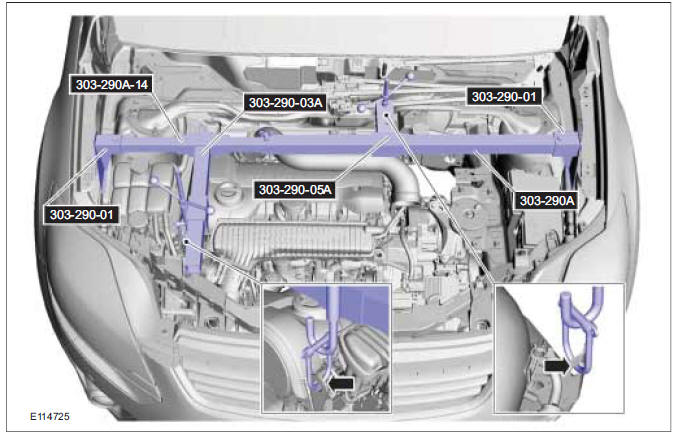

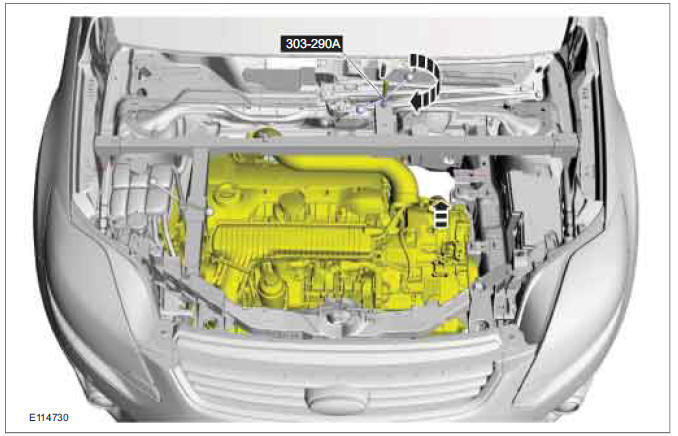

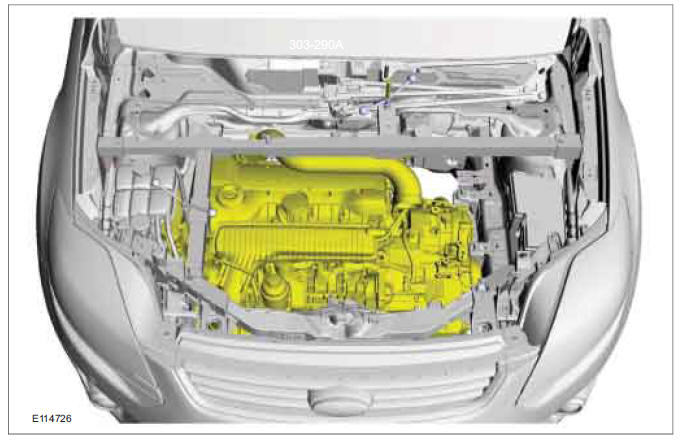

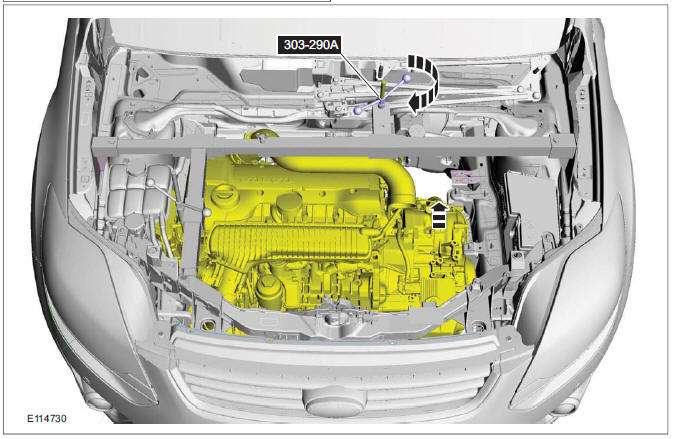

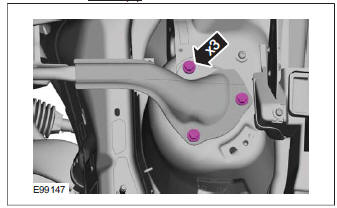

31. Install the Special Tool(s): 303-290-01, 303-290-03A, 303-290-05A, 303-290A, 303-290A-14

Transmission

Transmission

Transmission

34. Special Tool(s): 303-290A

Transmission

35. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation).

CAUTION: Make sure that all openings are sealed.

Transmission

Transmission

Transmission

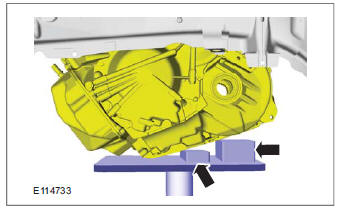

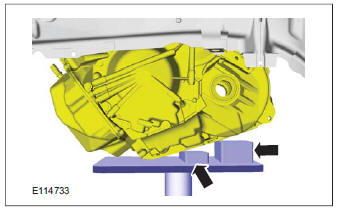

39. Install the following items: 1. General Equipment: Wooden Block General Equipment: Transmission Jack

Transmission

Transmission

Transmission

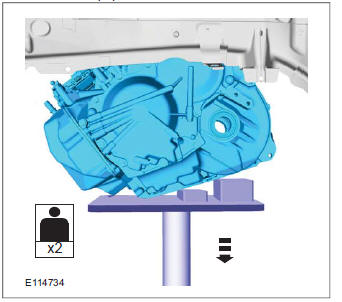

WARNING: This step requires the aid of another technician.

General Equipment: Transmission Jack

Transmission

INSTALLATION

Transmission

Installation

Special Tool(s) / General Equipment

303-290-01 Adapter for 303-290A
303-290-03A303-290A Support Bar, Engine Adapter for 303-290A
303-290-05A Adapter for 303-290A
303-290A Support Bar, Engine
303-290A-14 Adapter for 303-290A

Cable Ties

Round-Ended Steel Rule

Transmission Jack

Wooden Block

Materials

Name Specification
Grease K-HT ESD-M1C220-A / A88SX1C220AA
Grease KS-PS SA-M1C9107-A / YS5JM1C9107- AA

1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

2. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation).

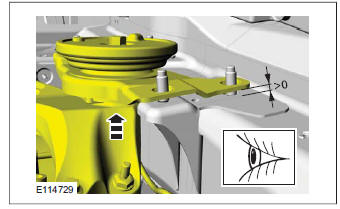

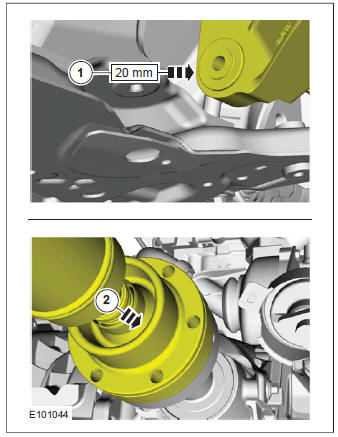

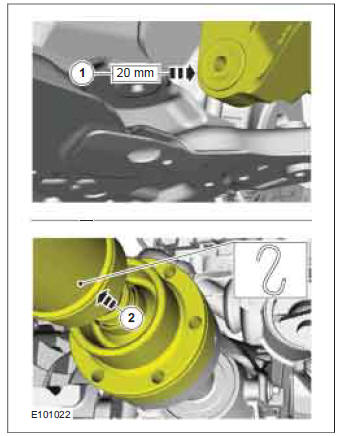

3. General Equipment: Round-Ended Steel Rule

Transmission

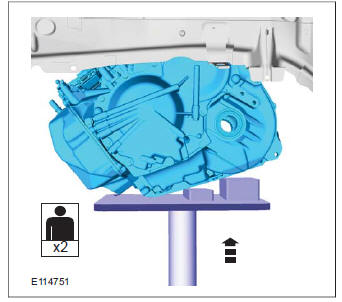

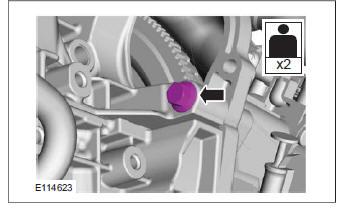

WARNING: This step requires the aid of another technician.

CAUTIONS:

Make sure that the locating dowels remain installed.

Make sure that the torque converter remains in the transmission.

General Equipment: Transmission Jack

Transmission

5. Perform this and the following operation simultaneously.

Torque: 48 Nm

Transmission

6. Torque: 48 Nm

Transmission

7. Remove the following items: 1. General Equipment: Wooden Block General Equipment: Transmission Jack

Transmission

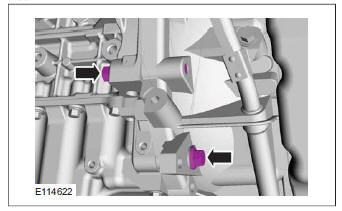

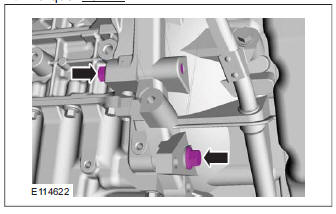

8. Torque: 48 Nm

Transmission

9. Torque: 48 Nm

Transmission

10.Torque: 6 Nm

Transmission

11. Lower the vehicle.

12. Special Tool(s): 303-290A

Transmission

13.Torque: 80 Nm

Transmission

14. Special Tool(s): 303-290A

Transmission

Transmission

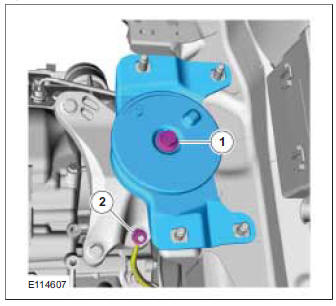

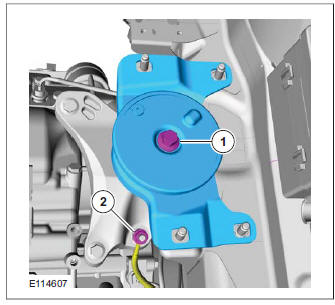

16. 1. Torque: 148 Nm

2. Torque: 10 Nm

Transmission

17.Remove the Special Tool(s): 303-290-01, 303-290-03A, 303-290-05A, 303-290A, 303-290A-14

18. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation).

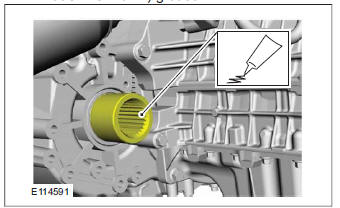

19. Material: Grease K-HT (ESD-M1C220-A / A88SX1C220AA) grease

Transmission

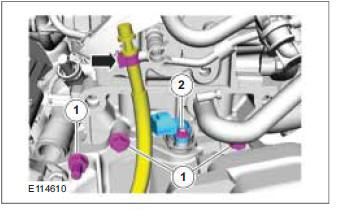

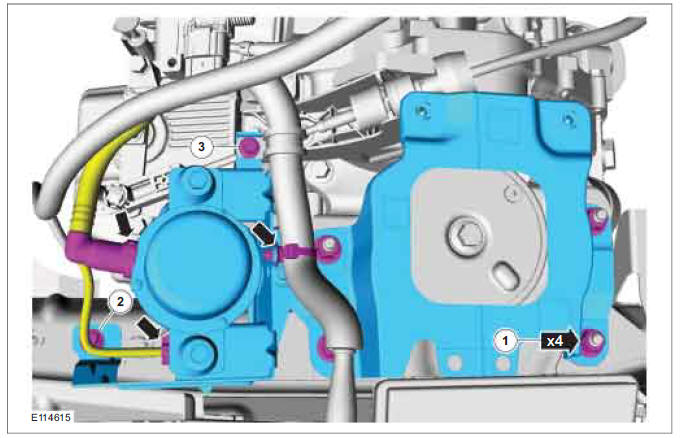

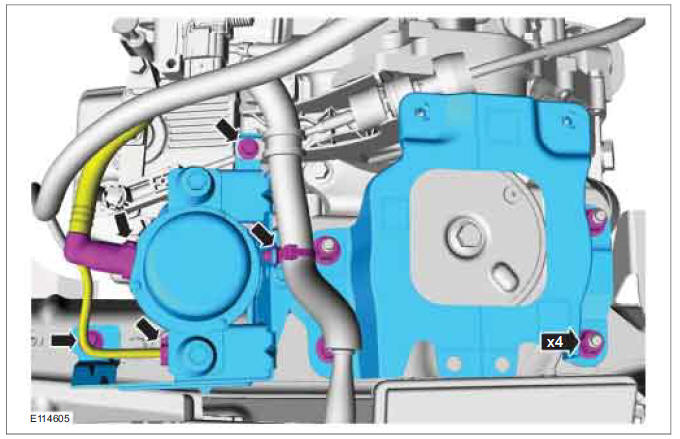

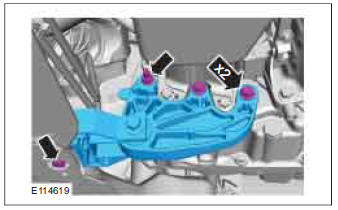

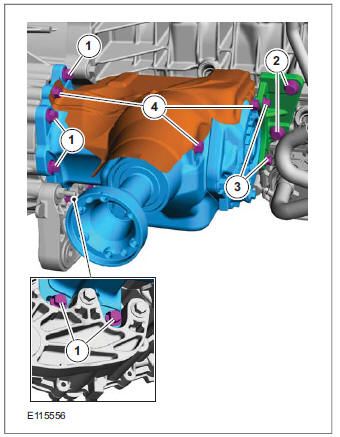

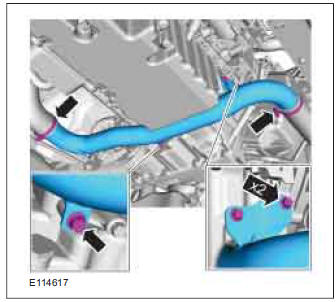

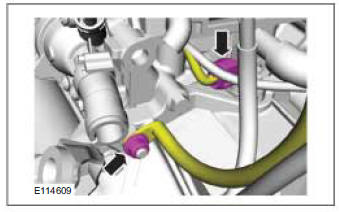

20. 1. Torque: 60 Nm

2. Torque: 60 Nm

3. Torque: 25 Nm

4. Torque: 9 Nm

Transmission

Transmission

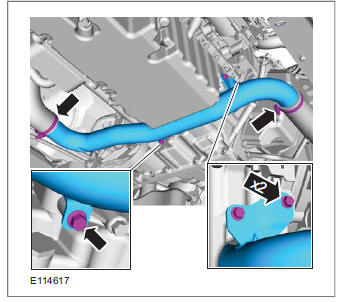

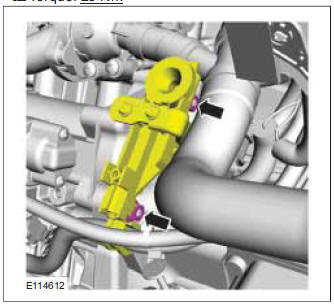

22.Torque: 25 Nm

Transmission

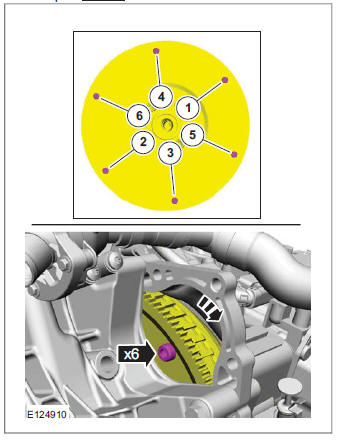

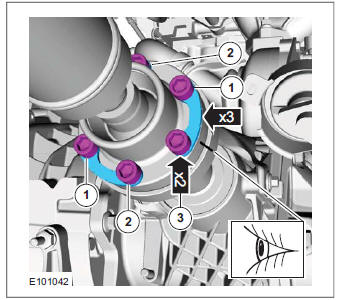

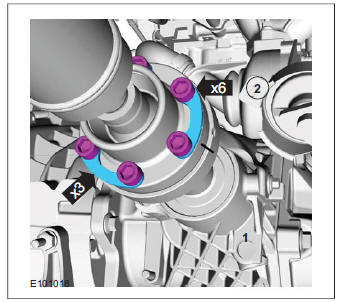

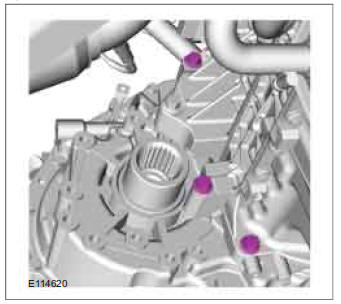

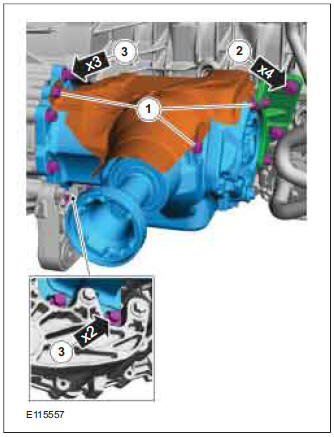

CAUTION: Make sure that the installation marks are aligned.

Torque: 35 Nm

2. Torque: 35 Nm

3. Torque: 35 Nm

Transmission

24. Refer to: Front Halfshaft LH (205-04 Front Drive Halfshafts, Removal and Installation).

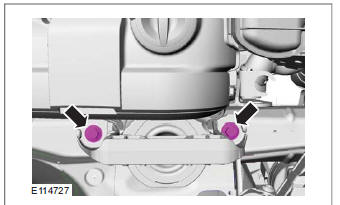

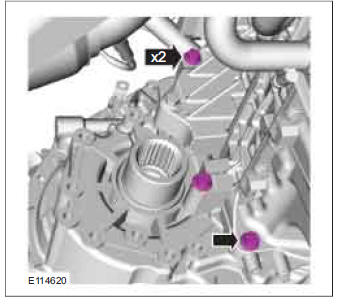

25. 1. Torque: 48 Nm

2. Torque: 80 Nm

Transmission

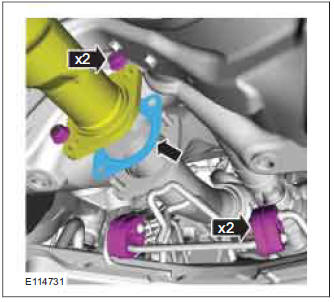

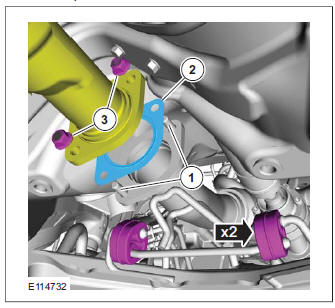

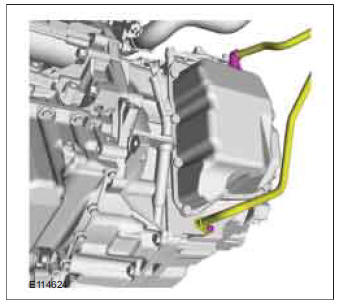

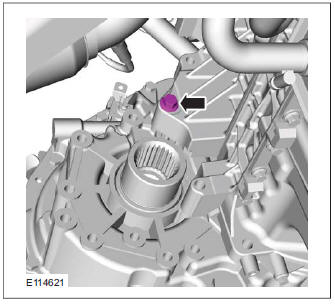

26. Material: Grease KS-PS (SA-M1C9107-A / YS5J-M1C9107-AA) grease 1.

2. NOTE: Make sure that a new component is installed.

3. Torque: 48 Nm

Transmission

27.Remove the following items: 1. General Equipment: Cable Ties

Transmission

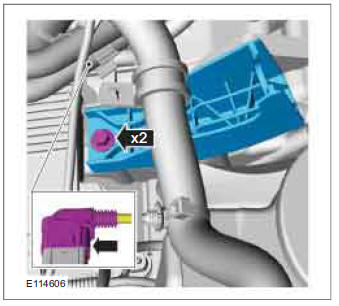

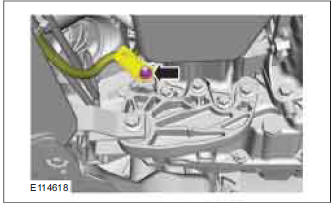

28.Torque: 10 Nm

Transmission

29. Lower the vehicle.

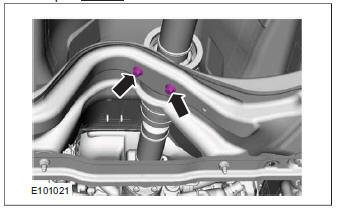

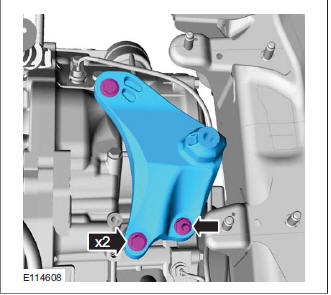

30.NOTE: Install all the bolts finger tight before final tightening.

Torque: 60 Nm

Transmission

31.Torque: 40 Nm

Transmission

32.Torque: 25 Nm

Transmission

Transmission

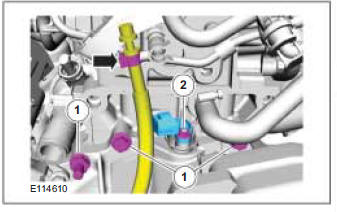

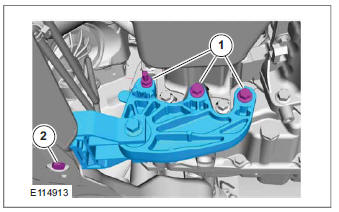

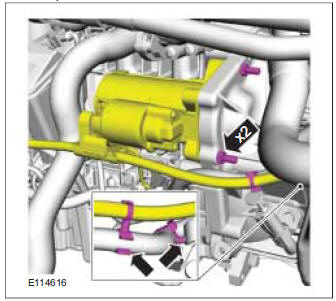

34. 1. Torque: 48 Nm

2. Torque: 9 Nm

Transmission

35.Torque: 25 Nm

Transmission

Transmission

37.Torque: 25 Nm

Transmission

38. Refer to: Selector Lever Cable Adjustment - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD (307-05 Automatic Transmission/Transaxle External Controls - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450, General Procedures).

Transmission

39.1. Torque:48 Nm

2. Torque:25 Nm

103. Torque:  Nm

Transmission

40.Torque: 10 Nm

Transmission

41. Refer to: Battery (414-01 Battery, Mounting and Cables, Removal and Installation).

42.On both sides.

Torque: 35 Nm

Transmission

43. Refer to: Air Cleaner (303-12 Intake Air Distribution and Filtering - 2.5L Duratec (147kW/200PS) - VI5, Removal and Installation).

Transmission

45. Refer to: Cowl Panel Grille (501-02 Front End Body Panels, Removal and Installation).

Refer to: Transmission Fluid Level Check (307-01 Automatic Transmission/Transaxle - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD, General Procedures).
