 Service Manual
Rear Drive Axle/Differential
Active On-Demand Coupling Module

Materials
Name Specification
Transmission Oil AWD 8U7J-8708687-AA

Removal

All vehicles

1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

2. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation).

Vehicles with 2.0L diesel engine

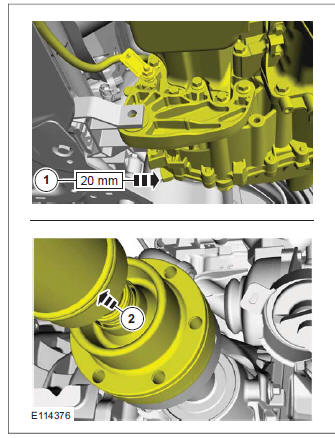

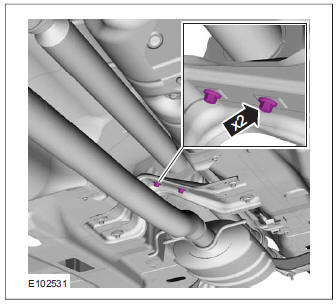

Active On-Demand Coupling Module

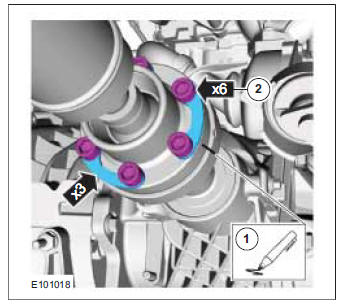

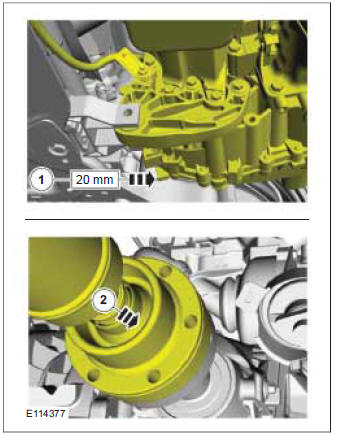

Active On-Demand Coupling Module

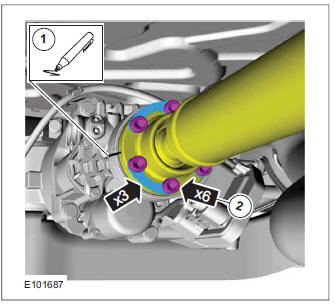

Active On-Demand Coupling Module

Vehicles with 2.5L engine

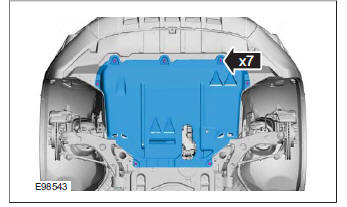

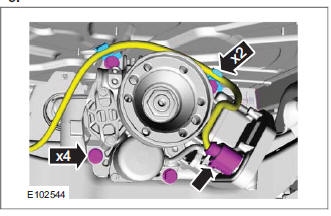

Active On-Demand Coupling Module

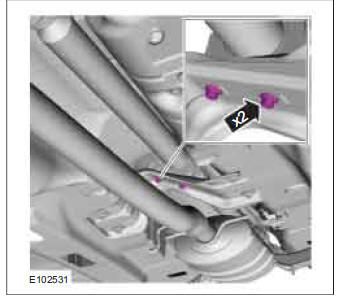

Active On-Demand Coupling Module

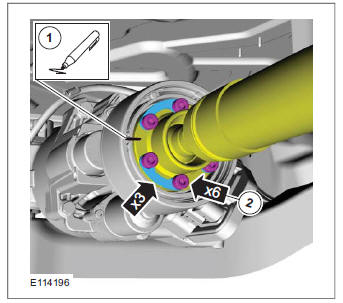

Active On-Demand Coupling Module

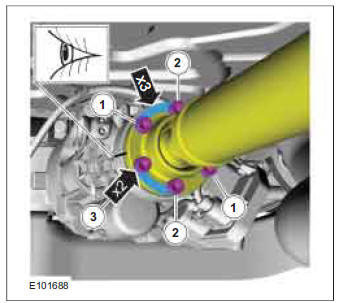

Active On-Demand Coupling Module

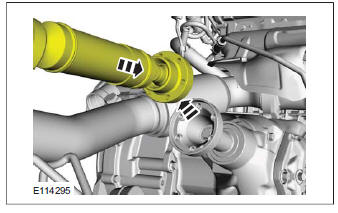

Active On-Demand Coupling Module

Active On-Demand Coupling Module

Active On-Demand Coupling Module

Active On-Demand Coupling Module

All vehicles

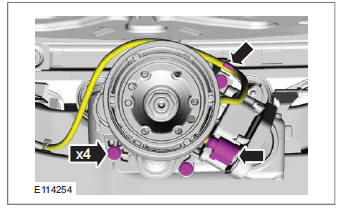

Active On-Demand Coupling Module

Installation

All vehicles

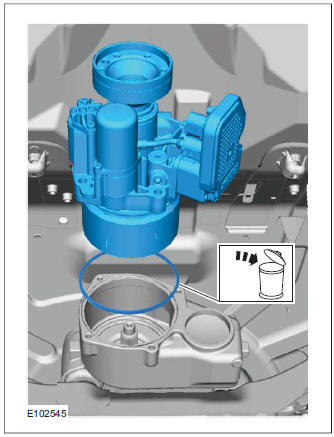

1. Material: Transmission Oil AWD (8U7J-8708687-AA) transmission fluid

Active On-Demand Coupling Module

Vehicles with 2.0L diesel engine

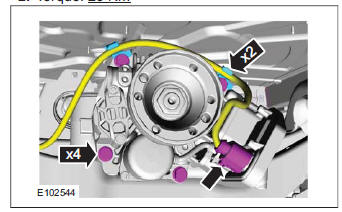

2. Torque: 25 Nm

Active On-Demand Coupling Module

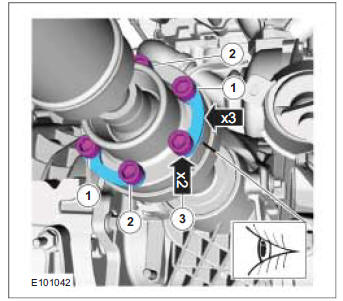

CAUTION: Make sure that the installation marks are aligned.

1. Torque: 35 Nm

2. Torque: 35 Nm

3. Torque: 35 Nm

Active On-Demand Coupling Module

4. Torque: 25 Nm

Active On-Demand Coupling Module

Vehicles with 2.5L engine

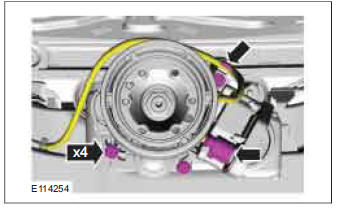

5. Torque: 25m

Active On-Demand Coupling Module

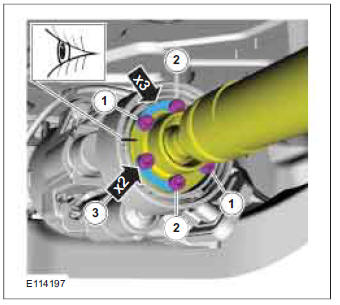

CAUTION: Make sure that the installation marks are aligned.

1. Torque: 35 Nm

2. Torque: 35 Nm

3. Torque: 35 Nm

Active On-Demand Coupling Module

Active On-Demand Coupling Module

Active On-Demand Coupling Module

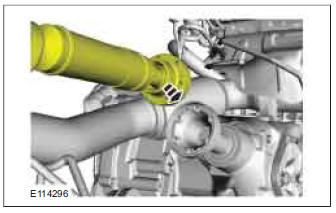

CAUTION: Make sure that the installation marks are aligned.

1. Torque: 35 Nm

2. Torque: 35 Nm

3. Torque: 35 Nm

Active On-Demand Coupling Module

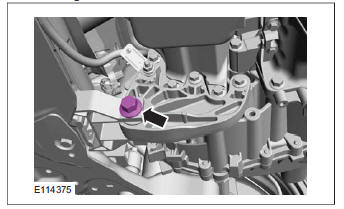

10.Torque: 25 Nm

Active On-Demand Coupling Module

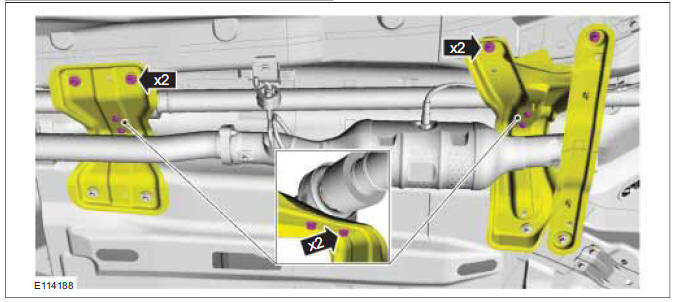

11. Torque:

  • Stage 1: 35 Nm
  • Stage 2: Loosen 360
  • Stage 3: 85 Nm

Active On-Demand Coupling Module

Active On-Demand Coupling Module

All vehicles

13. Refer to: Active On-Demand Coupling Fluid Level Check (205-02 Rear Drive Axle/Differential, General Procedures).

Refer to: Differential Fluid Level Check (205-02 Rear Drive Axle/Differential, General Procedures).

14. Lower the vehicle.
