 Service Manual
Rear Drive Axle/Differential
Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

Special Tool(s) / General Equipment

205-072 Universal Flange Holding Wrench
303-249 Remover, Crankshaft Timing Pulley
Puller
Materials
Name Specification
Transmission Oil AWD 8U7J-8708687-AA

Disassembly

1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

2. Refer to: Lifting (100-02 Jacking and Lifting, Description and Operation).

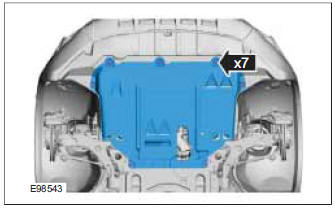

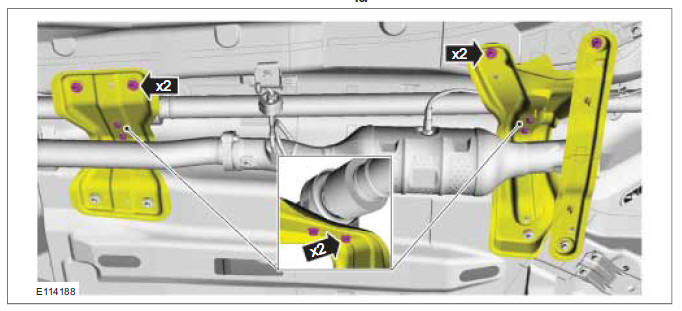

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

WARNING: Be prepared to collect escaping fluid.

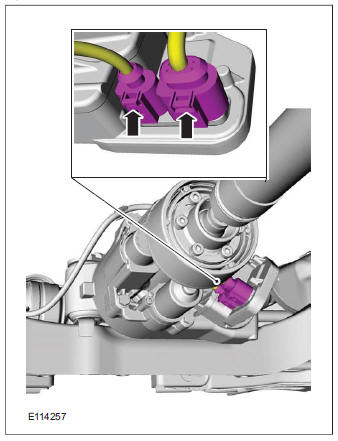

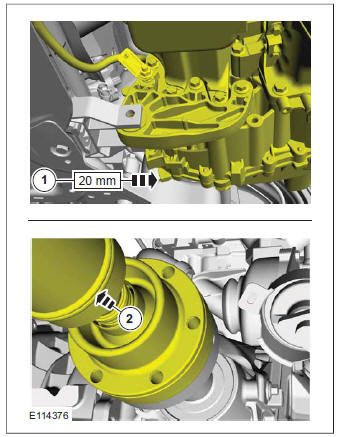

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

WARNING: Be prepared to collect escaping fluid.

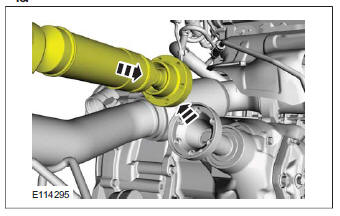

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

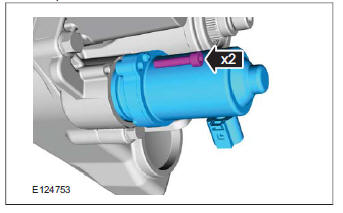

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

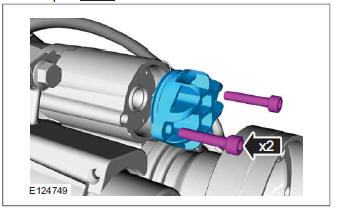

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

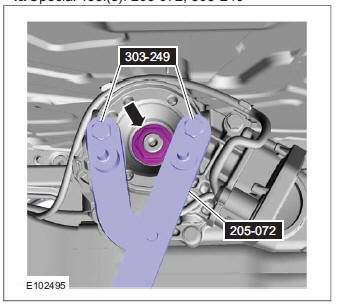

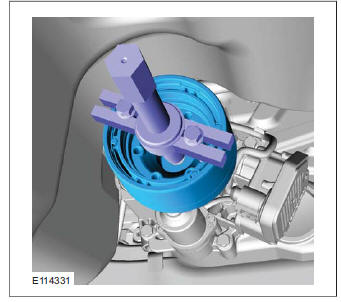

15. Special Tool(s): 205-072, 303-249

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

16. General Equipment: Puller

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

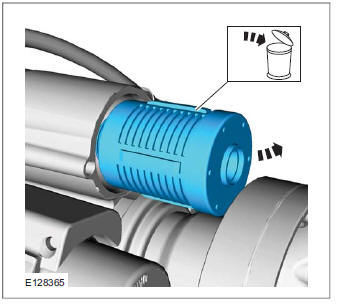

WARNING: Be prepared to collect escaping fluid.

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

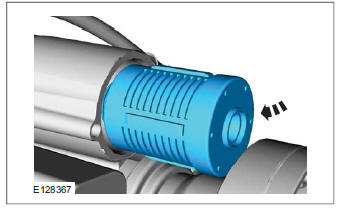

Assembly

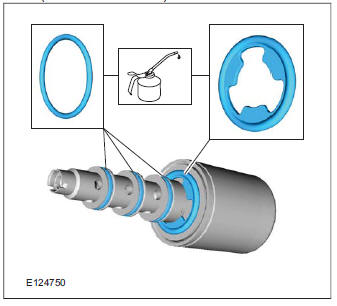

18. Material: Transmission Oil AWD (8U7J-8708687-AA) transmission fluid

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

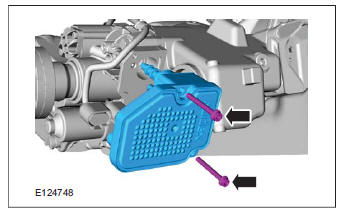

19.Torque: 6 Nm

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

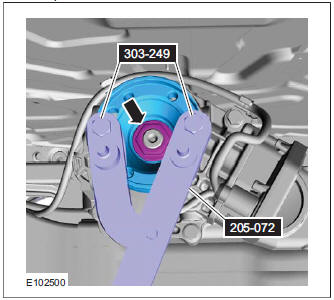

20. Special Tool(s): 205-072, 303-249 Torque: 150 Nm

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

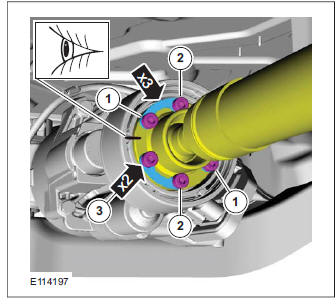

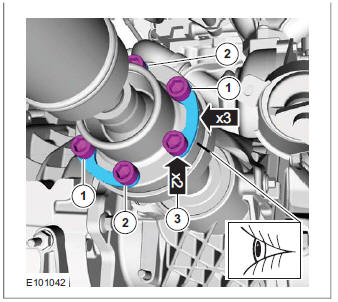

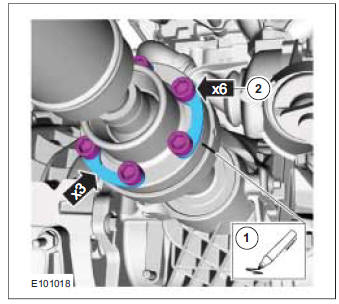

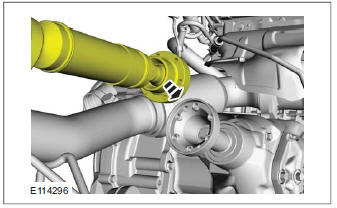

CAUTION: Make sure that the installation marks are aligned.

1. Torque: 35 Nm

2. Torque: 35 Nm

3. Torque: 35 Nm

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

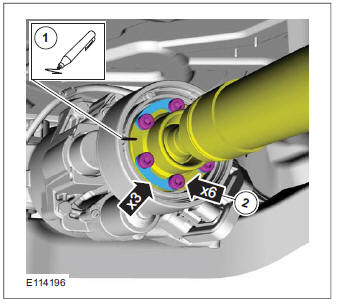

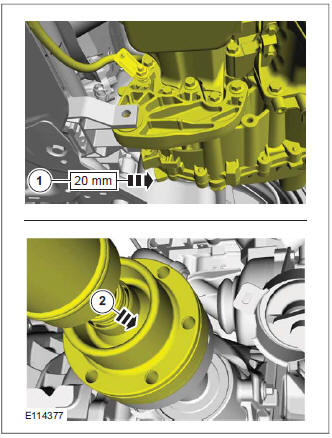

CAUTION: Make sure that the installation marks are aligned.

1. Torque: 35 Nm

2. Torque: 35 Nm

3. Torque: 35 Nm

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

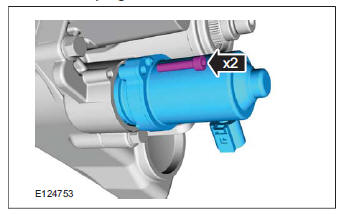

25.Torque: 25 Nm

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

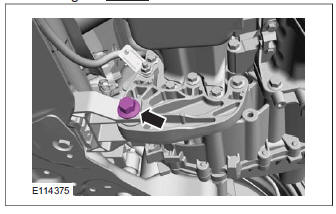

26.Torque:

  • Stage 1: 35 Nm
  • Stage 2: Loosen 360
  • Stage 3: 85 Nm

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

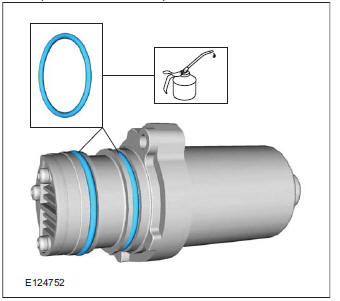

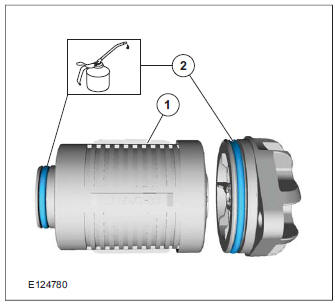

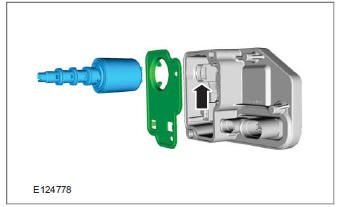

28. 1. NOTE: Make sure that a new component is installed.

2. Material: Transmission Oil AWD (8U7J-8708687-AA) transmission fluid

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

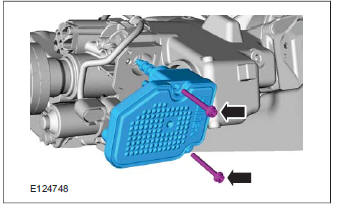

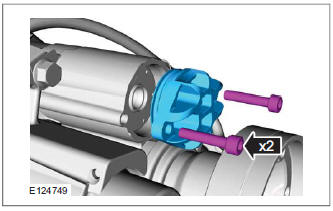

30.Torque: 6 Nm

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

31. Material: Transmission Oil AWD (8U7J-8708687-AA) transmission fluid

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

32.Torque: 6 Nm

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

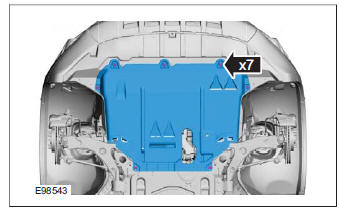

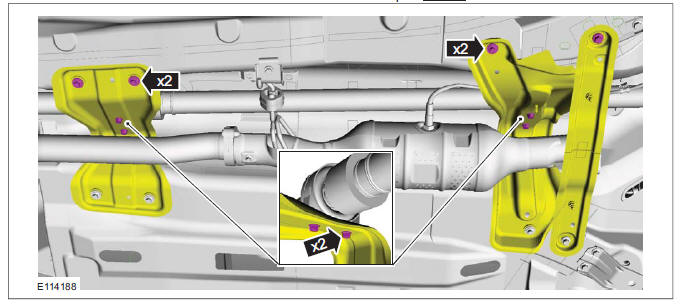

Active On-Demand Coupling - Vehicles With: 5-Speed Automatic Transaxle - AW55 AWD/6-Speed Automatic Transaxle - 6DCT450

34. Refer to: Active On-Demand Coupling Fluid Level Check (205-02 Rear Drive Axle/Differential, General Procedures).

35. Lower the vehicle.
