Rear Drive Axle/Differential
Drive Pinion Seal

Special Tool(s)

303-293 Remover, Crankshaft Seal
308-643 Installer, Input Shaft Seal

Removal

1. Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).

2. Refer to: Active On-Demand Coupling Module (205-02 Rear Drive Axle/Differential, Removal and Installation).

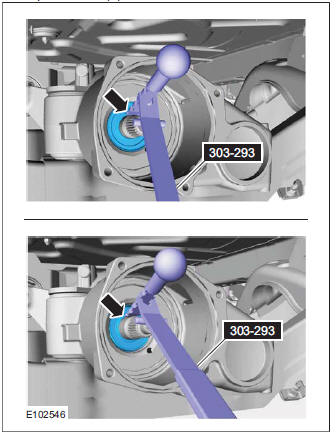

3. Special Tool(s): 303-293

Drive Pinion Seal

Installation

CAUTION: Take extra care not to damage the seal.

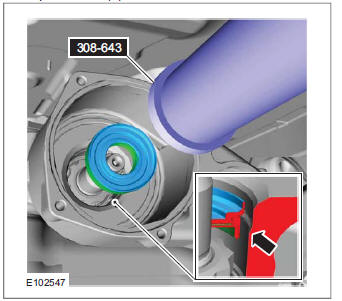

Special Tool(s): 308-643

Drive Pinion Seal

2. Refer to: Active On-Demand Coupling Module (205-02 Rear Drive Axle/Differential, Removal and Installation).
