 Service Manual
Power Steering
Power Steering Pressure Line and Return Line Assembly - 2.5L Duratec (147kW/200PS) - VI5(13 434 0)

General Equipment

Hose Clamp Remover/Installer

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Steering System Health and Safety Precautions (100-00 General Information, Description and Operation).

2. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

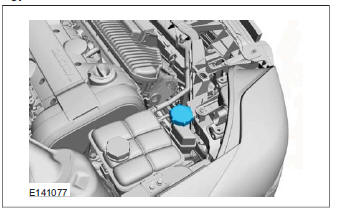

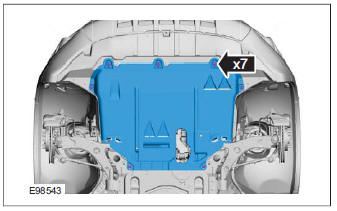

Power Steering Pressure Line and Return Line Assembly - 2.5L Duratec (147kW/200PS) - VI5(13 434 0)

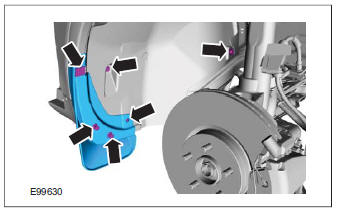

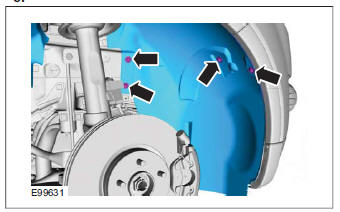

Power Steering Pressure Line and Return Line Assembly - 2.5L Duratec (147kW/200PS) - VI5(13 434 0)

Power Steering Pressure Line and Return Line Assembly - 2.5L Duratec (147kW/200PS) - VI5(13 434 0)

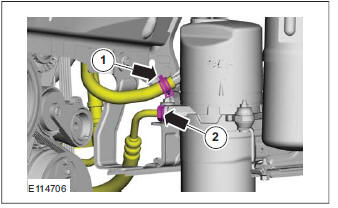

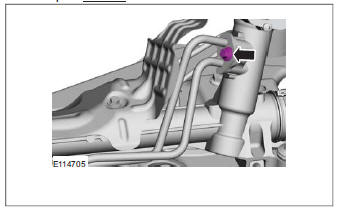

WARNING: Be prepared to collect escaping fluid.

1. General Equipment: Hose Clamp Remover/Installer

2. Torque: 30 Nm

Power Steering Pressure Line and Return Line Assembly - 2.5L Duratec (147kW/200PS) - VI5(13 434 0)

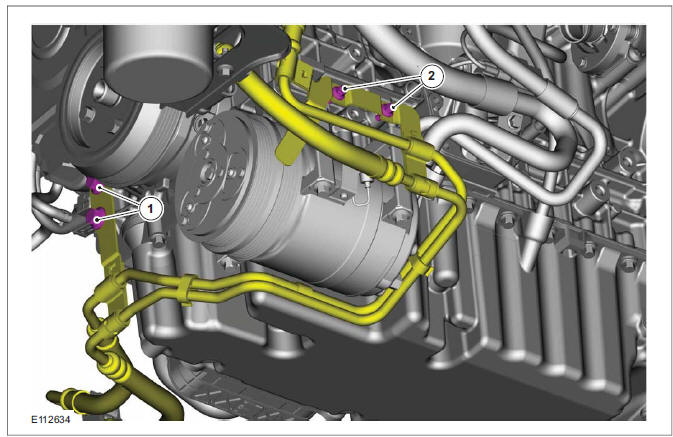

7. 1. Torque: 23 Nm

2. Torque: 7 Nm

Power Steering Pressure Line and Return Line Assembly - 2.5L Duratec (147kW/200PS) - VI5(13 434 0)

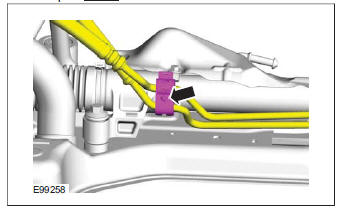

8. Torque: 4 Nm

Power Steering Pressure Line and Return Line Assembly - 2.5L Duratec (147kW/200PS) - VI5(13 434 0)

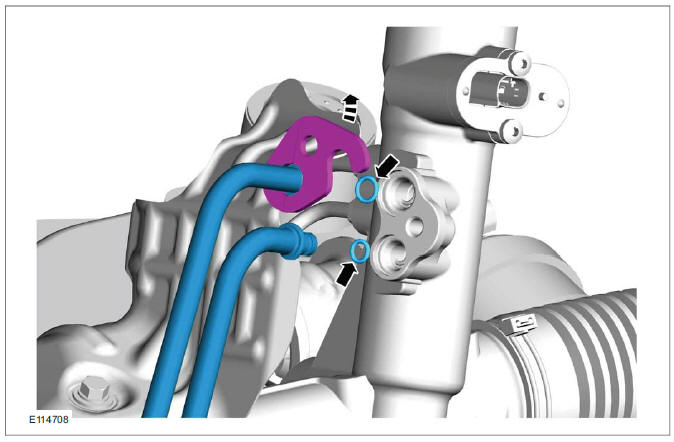

WARNING: Be prepared to collect escaping fluid.

CAUTION: Make sure that all openings are sealed.

Torque: 18 Nm

Power Steering Pressure Line and Return Line Assembly - 2.5L Duratec (147kW/200PS) - VI5(13 434 0)

Power Steering Pressure Line and Return Line Assembly - 2.5L Duratec (147kW/200PS) - VI5(13 434 0)

Installation

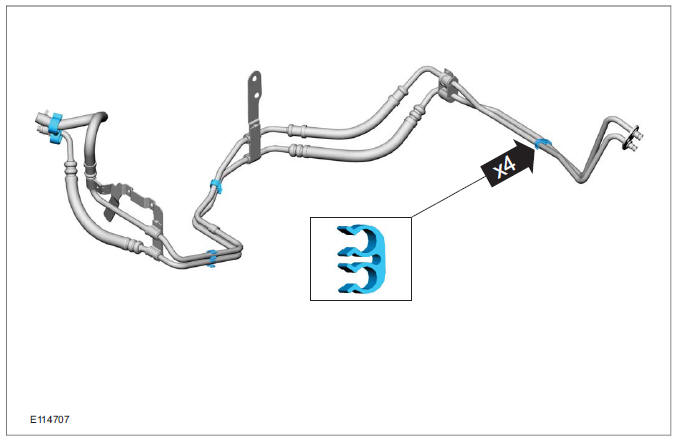

1. NOTE: This step is only necessary when installing a new component.

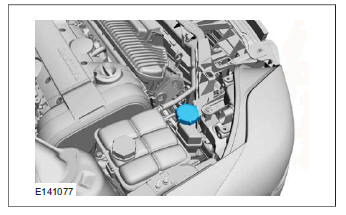

Power Steering Pressure Line and Return Line Assembly - 2.5L Duratec (147kW/200PS) - VI5(13 434 0)

2. To install, reverse the removal procedure.

Power Steering Pressure Line and Return Line Assembly - 2.5L Duratec (147kW/200PS) - VI5(13 434 0)

Power Steering Pressure Line and Return Line Assembly - 2.5L Duratec (147kW/200PS) - VI5(13 434 0)

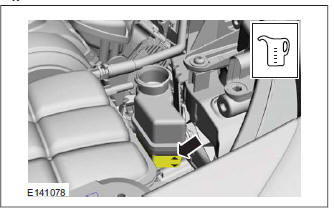

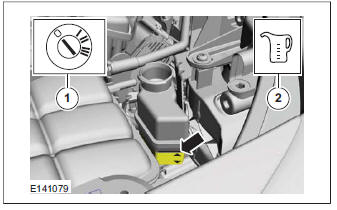

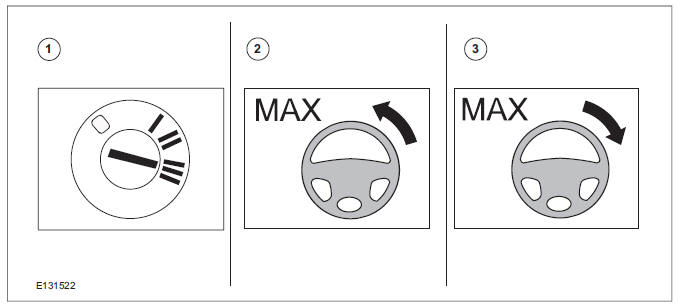

5. NOTE: Make sure the fluid in the reservoir does not fall below the MIN mark, as air could enter the system.

Slowly turn the steering wheel from lock to lock five times.

Power Steering Pressure Line and Return Line Assembly - 2.5L Duratec (147kW/200PS) - VI5(13 434 0)

Power Steering Pressure Line and Return Line Assembly - 2.5L Duratec (147kW/200PS) - VI5(13 434 0)

Power Steering Pressure Line and Return Line Assembly - 2.5L Duratec (147kW/200PS) - VI5(13 434 0)
