 Service Manual
Power Steering
Steering Gear to Power Steering Fluid Reservoir Return Line-2.5L Duratec (147kW/200PS) - VI5(13 439 0)

General Equipment

Hose Clamp Remover/Installer

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Steering System Health and Safety Precautions (100-00 General Information, Description and Operation).

2. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

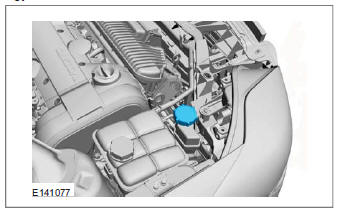

Steering Gear to Power Steering Fluid Reservoir Return Line-2.5L Duratec (147kW/200PS) - VI5(13 439 0)

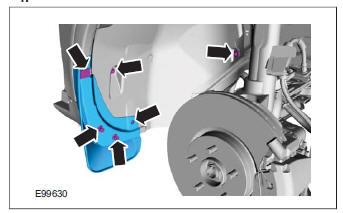

Steering Gear to Power Steering Fluid Reservoir Return Line-2.5L Duratec (147kW/200PS) - VI5(13 439 0)

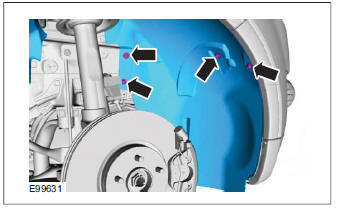

Steering Gear to Power Steering Fluid Reservoir Return Line-2.5L Duratec (147kW/200PS) - VI5(13 439 0)

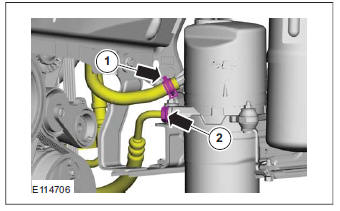

WARNING: Be prepared to collect escaping fluid.

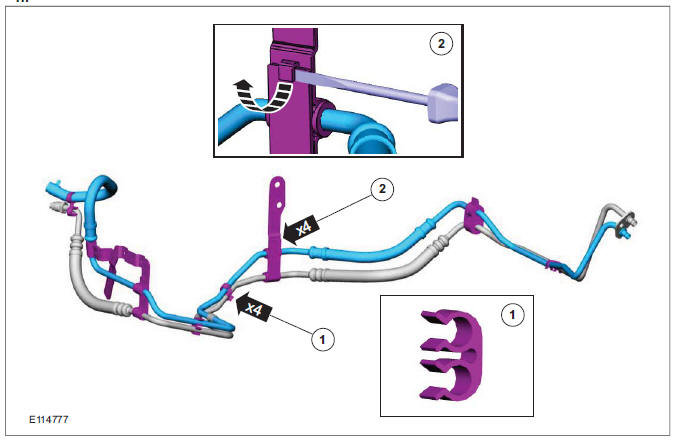

1. General Equipment: Hose Clamp Remover/Installer

2. Torque: 30 Nm

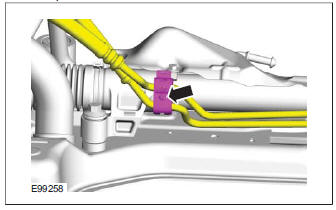

Steering Gear to Power Steering Fluid Reservoir Return Line-2.5L Duratec (147kW/200PS) - VI5(13 439 0)

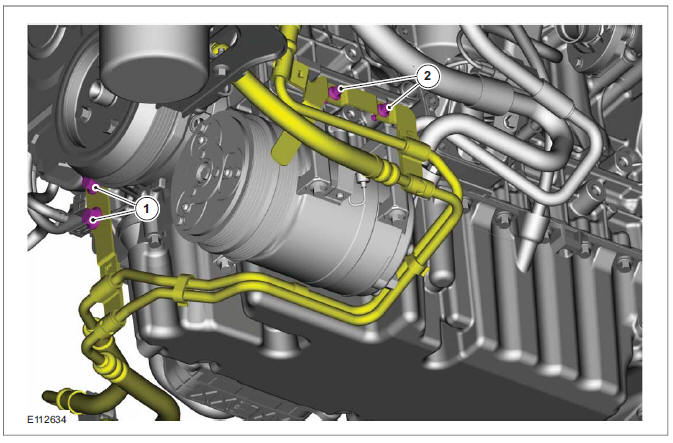

7. 1. Torque: 23 Nm

2. Torque: 7 Nm

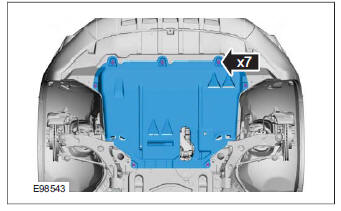

Steering Gear to Power Steering Fluid Reservoir Return Line-2.5L Duratec (147kW/200PS) - VI5(13 439 0)

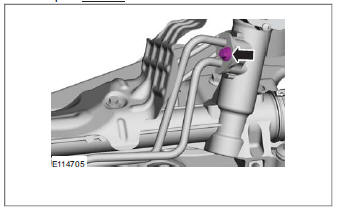

8. Torque: 4 Nm

Steering Gear to Power Steering Fluid Reservoir Return Line-2.5L Duratec (147kW/200PS) - VI5(13 439 0)

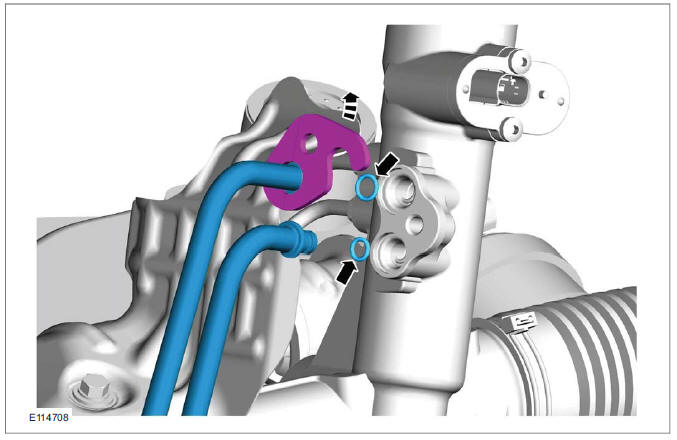

WARNING: Be prepared to collect escaping fluid.

CAUTION: Make sure that all openings are sealed.

Torque: 18 Nm

Steering Gear to Power Steering Fluid Reservoir Return Line-2.5L Duratec (147kW/200PS) - VI5(13 439 0)

Steering Gear to Power Steering Fluid Reservoir Return Line-2.5L Duratec (147kW/200PS) - VI5(13 439 0)

Steering Gear to Power Steering Fluid Reservoir Return Line-2.5L Duratec (147kW/200PS) - VI5(13 439 0)

Installation

1. To install, reverse the removal procedure.

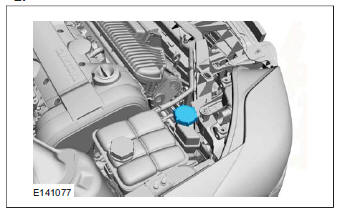

Steering Gear to Power Steering Fluid Reservoir Return Line-2.5L Duratec (147kW/200PS) - VI5(13 439 0)

Steering Gear to Power Steering Fluid Reservoir Return Line-2.5L Duratec (147kW/200PS) - VI5(13 439 0)

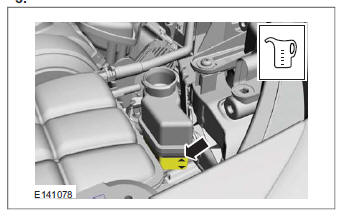

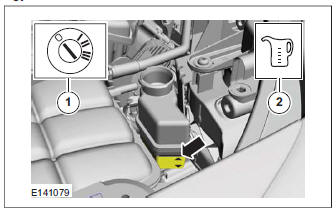

4. NOTE: Make sure the fluid in the reservoir does not fall below the MIN mark, as air could enter the system.

Slowly turn the steering wheel from lock to lock five times.

Steering Gear to Power Steering Fluid Reservoir Return Line-2.5L Duratec (147kW/200PS) - VI5(13 439 0)

Steering Gear to Power Steering Fluid Reservoir Return Line-2.5L Duratec (147kW/200PS) - VI5(13 439 0)

Steering Gear to Power Steering Fluid Reservoir Return Line-2.5L Duratec (147kW/200PS) - VI5(13 439 0)
